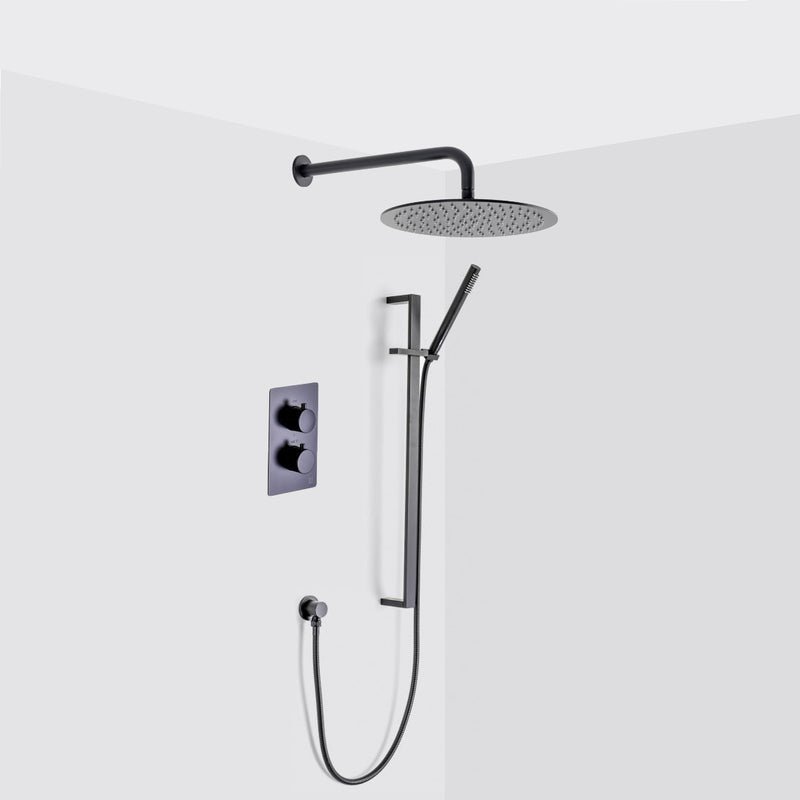

Metro 2-3 Way Thermostatic Trim Complete Shower Set - Wall Mount - 12" Brass/Matt Black

Pressure balanced 3-Way shower system of our family Metro. With this shower set you have everything you need to install your shower. It is a three-way system with outlet for shower head, outlet for hand shower and outlet for tub spout diverter. Composed of three-way thermostatic mixer, tub spout, hand shower, hose, hand shower shower connector with holder, shower arm for wall installation and shower head.

Features:

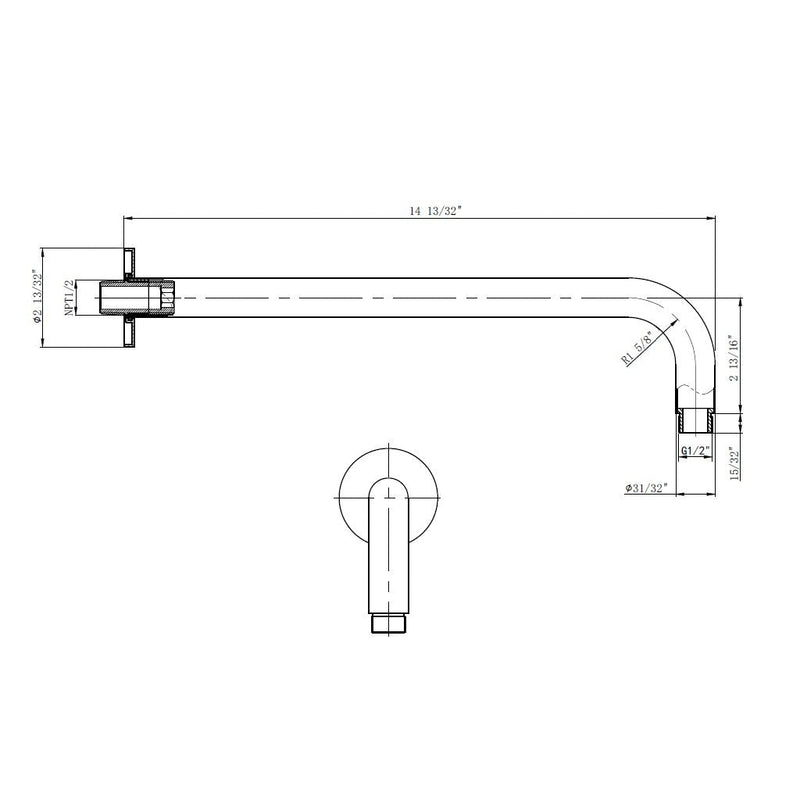

• Shower Arm:
• NPT 1/2 in. inlet
• G 1/2 in. Outlet

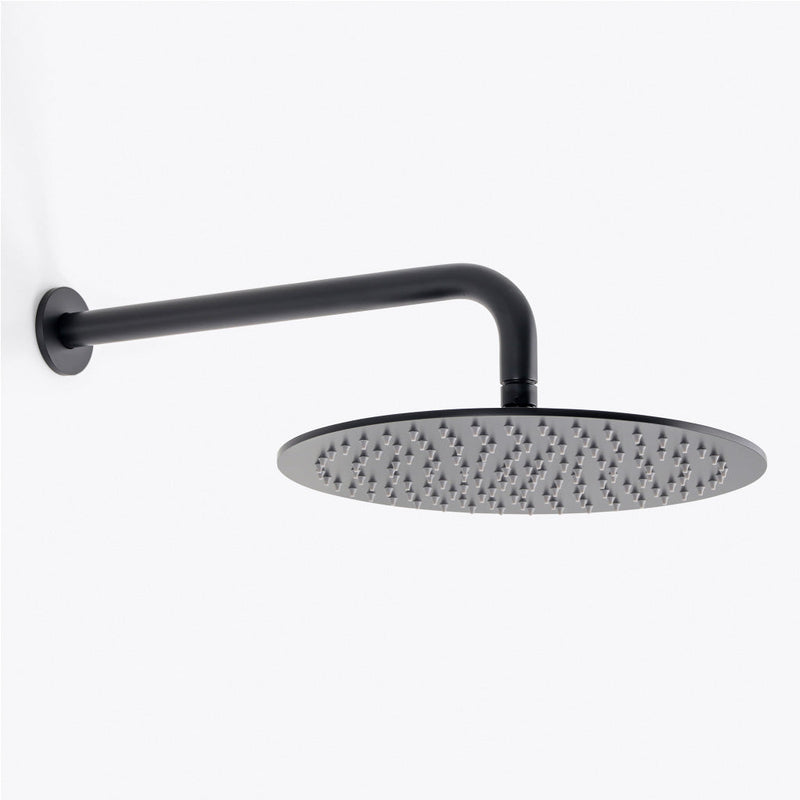

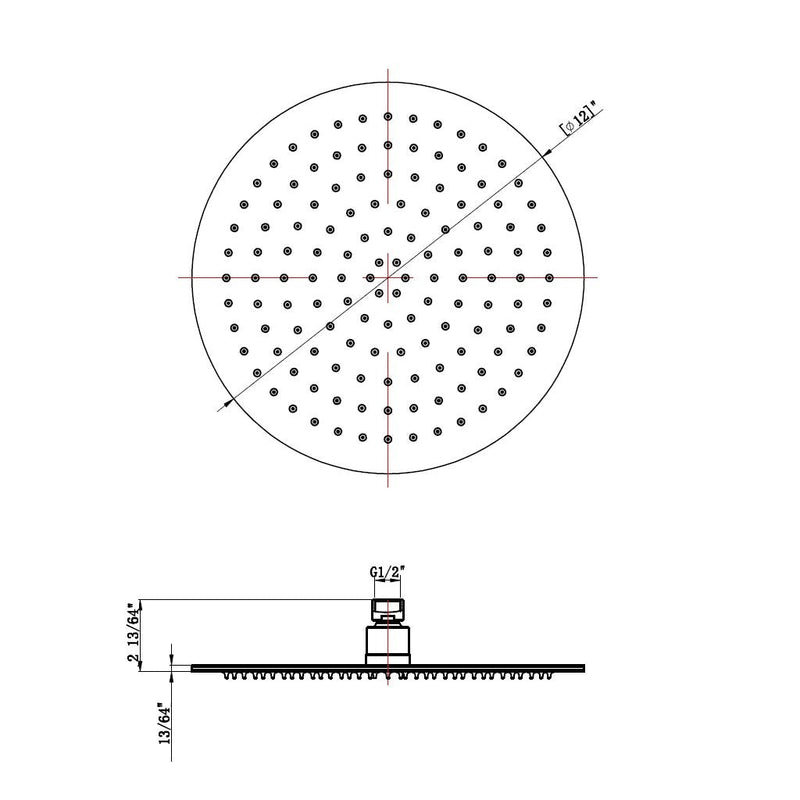

• Shower Head:
• Stainless steel construction
• Thin design (5mm / 0.2 in.)
• G 1/2 in. inlet
• Silicone sharp nozzles easy to clean
• 1.8 Gpm

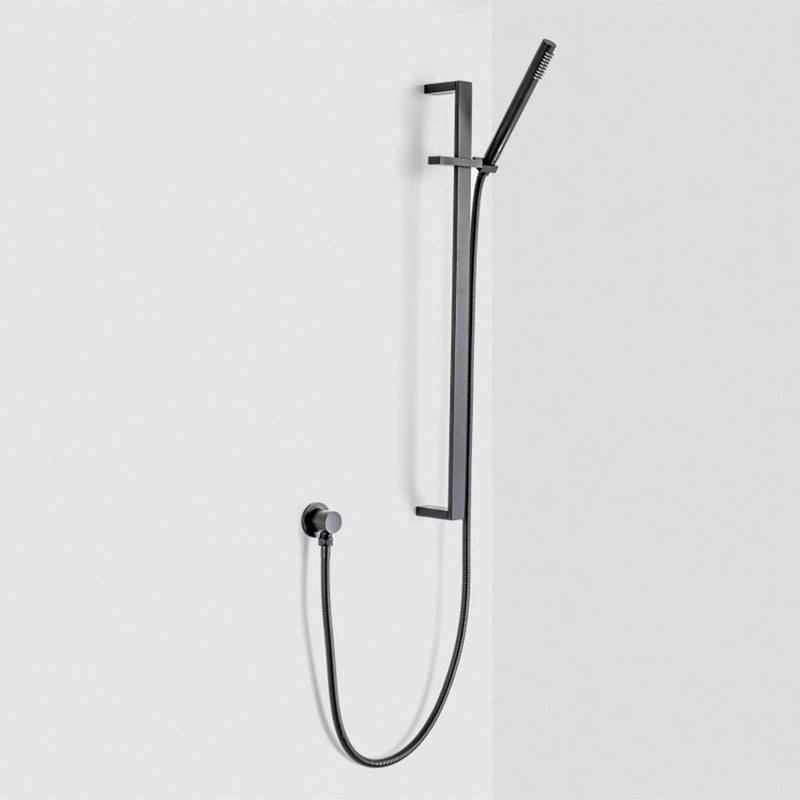

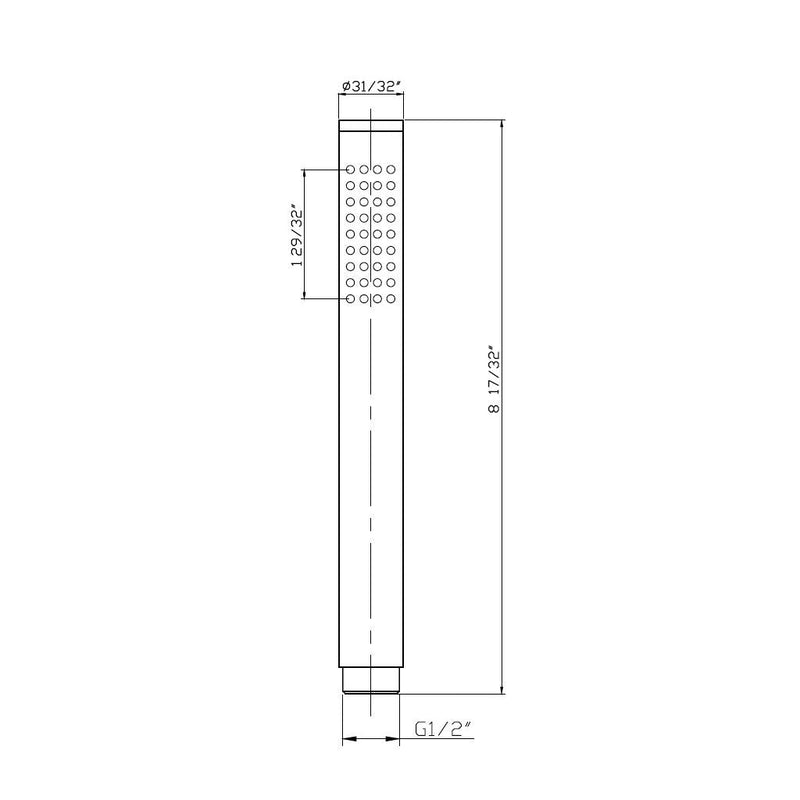

• Slide Bar And Elbow Hand Shower:Hand shower:
• Only rain function
• 1.8 Gpm.
• Brass construction
• Silicone sharp nozzle easy to clean.
• G 1/2" inlet
• Hand shower hose:
• Stainless steel construction
• 60 in. length
• Round connector on each end.
• Rubber washer on the bracket connector to prevent slipping.
• NPT 1/2 in. inlet and outlet connections.

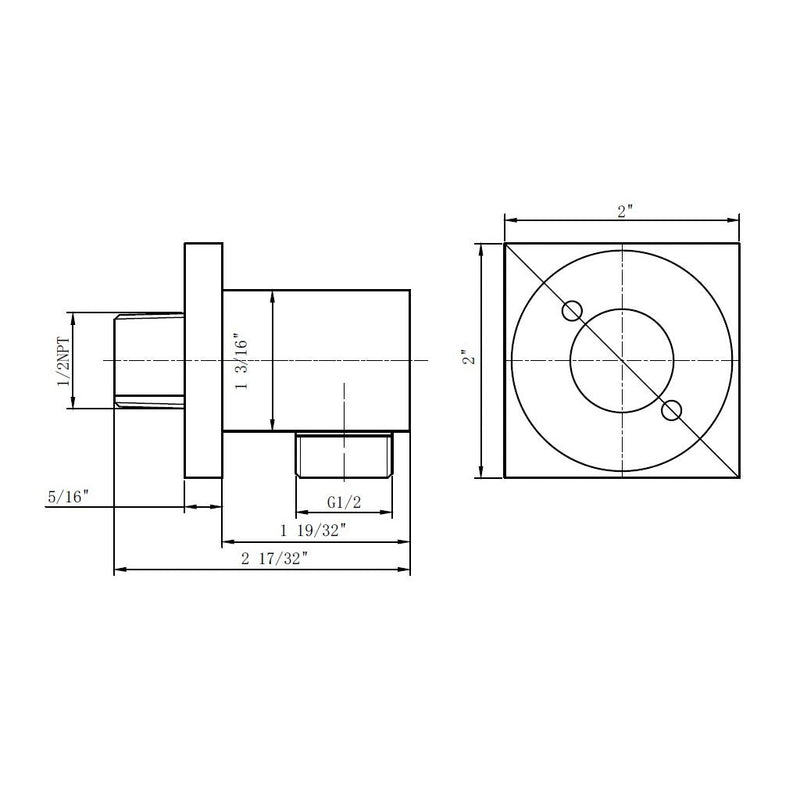

• Hose connector with holder:
• Brass construction
• Adjustable scutcheon
• NPT 1/2 in. inlet
• G 1/2 in. Outlet

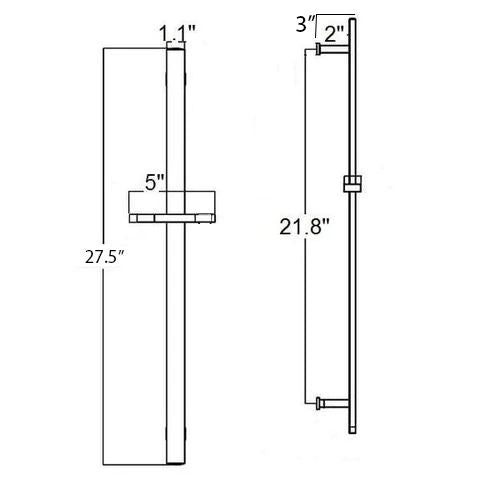

• Sliding bar:
• Made in full brass
• Support for hand shower adjustable in height and inclination.
• You need to complete this product with hose, connector and hand shower

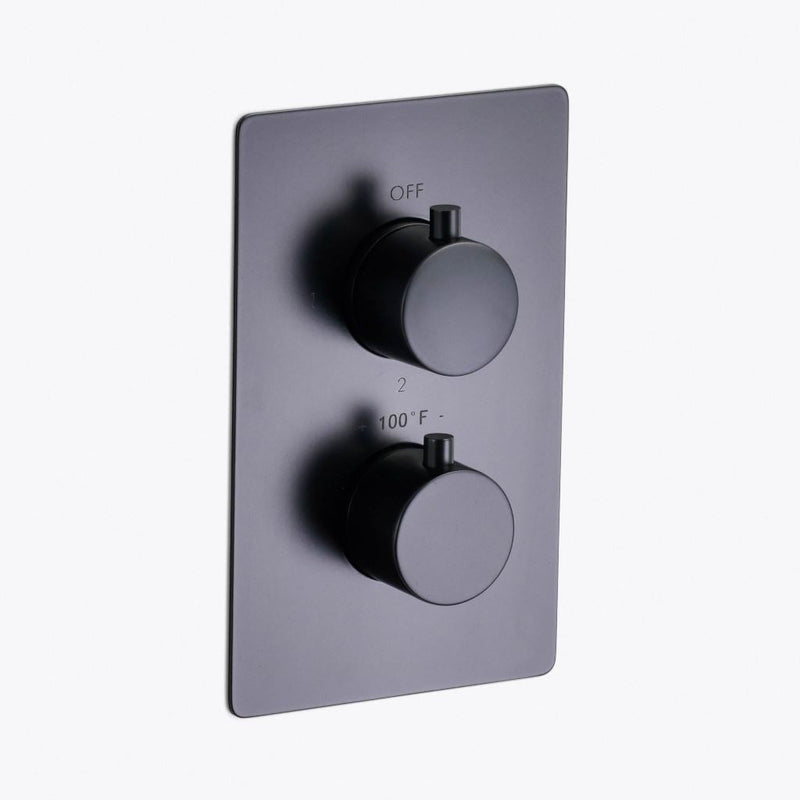

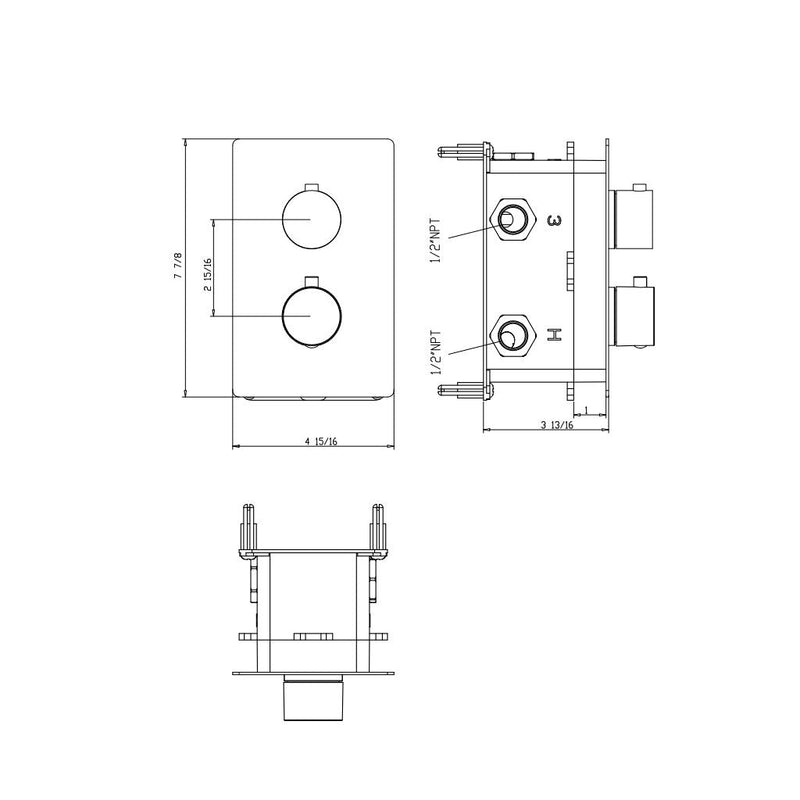

• Shower Mixer:
• Thermostatic valve.
• Brass valve body.
• Zinc alloy handles.
• Stainless steel trim plate with chrome surface.
• Designed to fit into standard 4.5" frame wall.
• Delivers a generous flow rate.
• Standard 1/2 inch inlet and outlet
• Flow rate 3.4 GPM
• UPC certified
• Diverter with 2 or 3 functions configurable during the installation process.
• Sedal ceramic thermostatic cartridge.
• Integrated shut-off valves.
• Material: Brass
• Finish/Color: Matt Black
• Dimensions:
• Weight: 220 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• Easy Installation: Yes

Documents:

• Spec Sheet (.PDF)
