Metro 3-Way Thermostatic Trim Complete Shower Set - Wall Mount - 8" Brass/Matt Black

[additional]

Included:

• COF.SHM.MTO.04.00.BR.MBL Shower mixer rough-in valve with trim.
• COF.TUS.MTO.07.05.BR.MBL Tub spout square
• COF.SHA.MTO.14.00.BR.MBL Shower arm wall mount 15 in. length.
• COF.SHH.MTO.08.00.SS.MBL Shower head 8 in. with sharp nozzles
• COF.HSH.MTO.01.00.BR.MBL hand shower round desing.
• COF.HHC.MTO.03.00.BR.MBL hand shower holder connector.
• COF.HHO.SCO.05.00.SS.MBL hose
• Qty: 1

Documents:

• Spec Sheets (PDF)

[/additional]

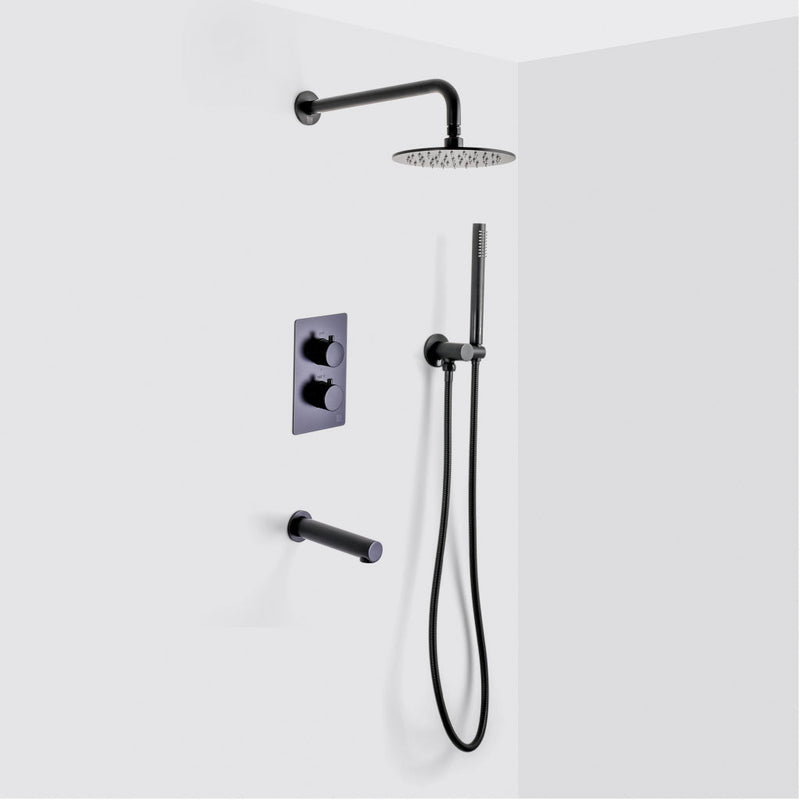

Pressure balanced 3-Way shower system of our family Metro. With this shower set you have everything you need to install your shower. It is a three-way system with outlet for shower head, outlet for hand shower and outlet for tub spout diverter. Composed of three-way thermostatic mixer, tub spout, hand shower, hose, hand shower shower connector with holder, shower arm for wall installation and shower head.

Features:

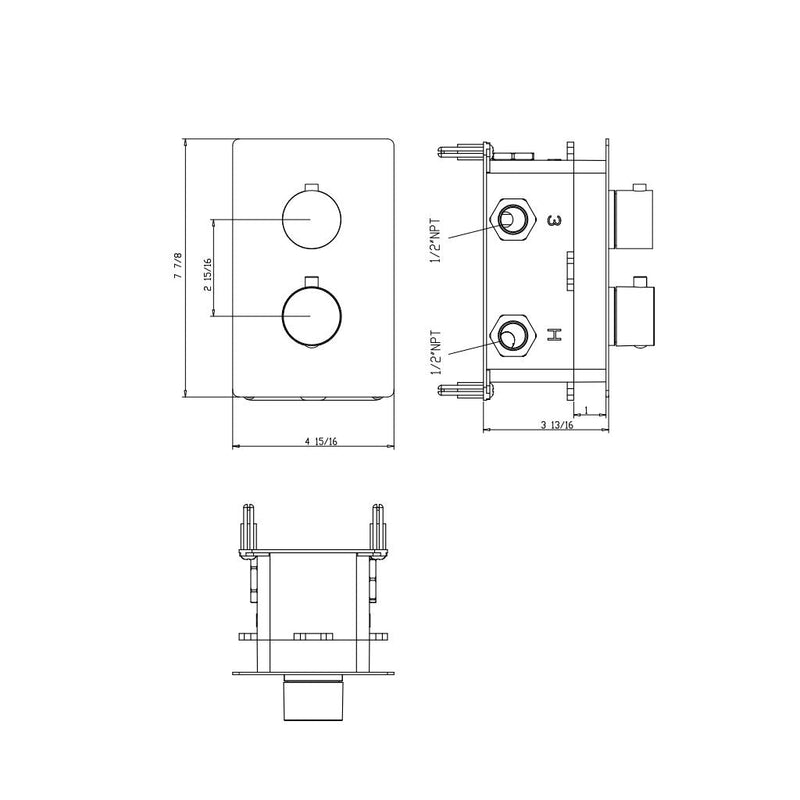

• Mixer features:
• 3-Way Thermostatic rough-in valve
• Shut-off valves and integrated anti-return valves
• Sedal ceramic thermostatic cartridge.
• Thermostatic cartridge prevent scalding, cold water supply stops when cold water pressure fail
• Flow rate 3.4 GPM
• Working pressure:
• Min: 20 PSI (1.5 bar)
• Max: 125 PSI (8 bar)
• Recommended: 45 PSI (3 bar)
• Hot water inlet max. temperature: 180 °F (80 °C)
• Water inlet threads: 1/2 NPT female
• Full brass

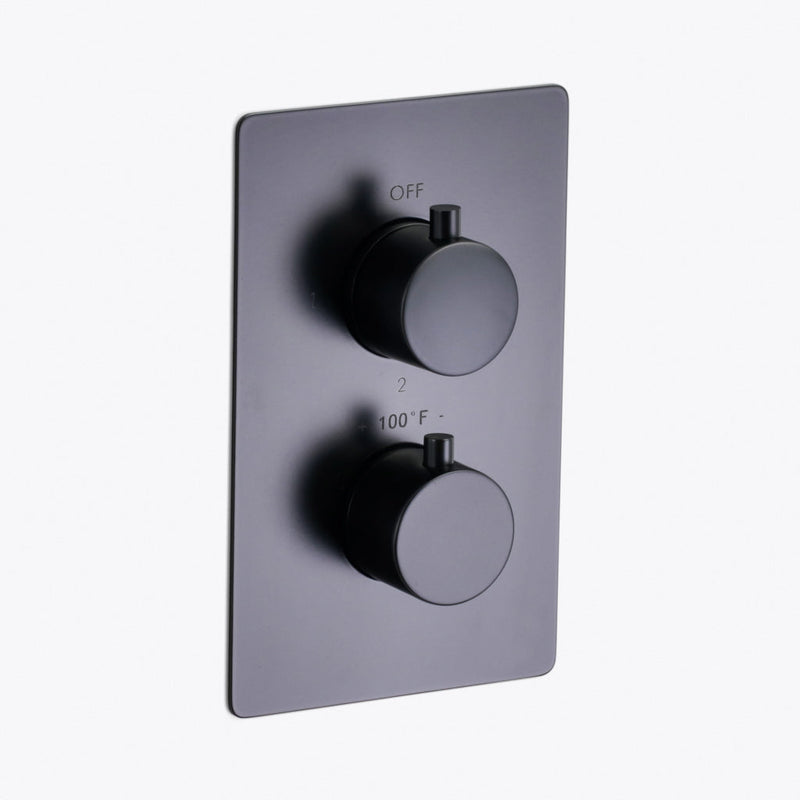

• Trim features:
• Round design
• Full brass

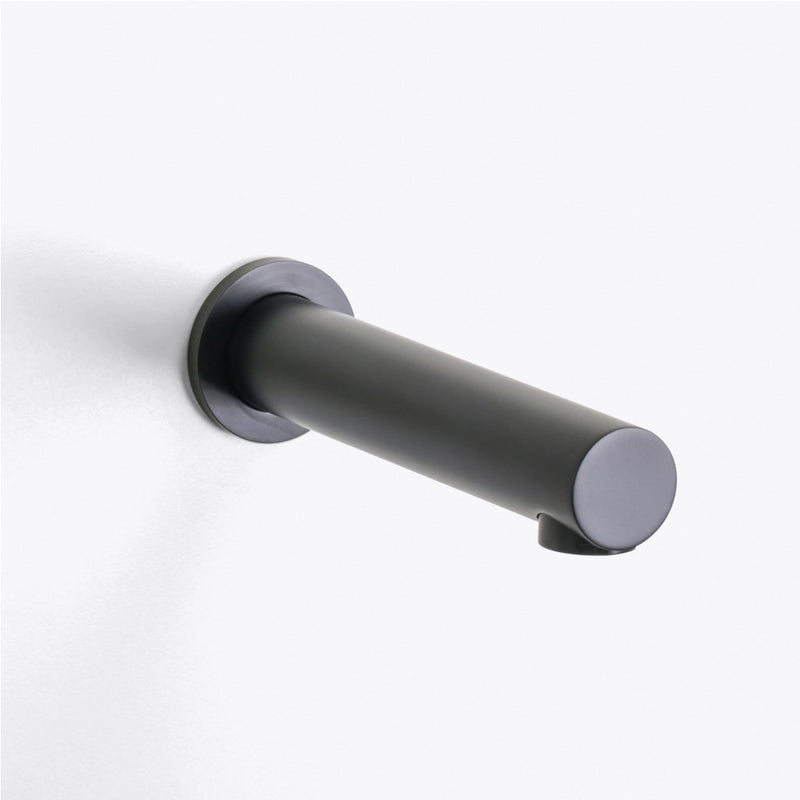

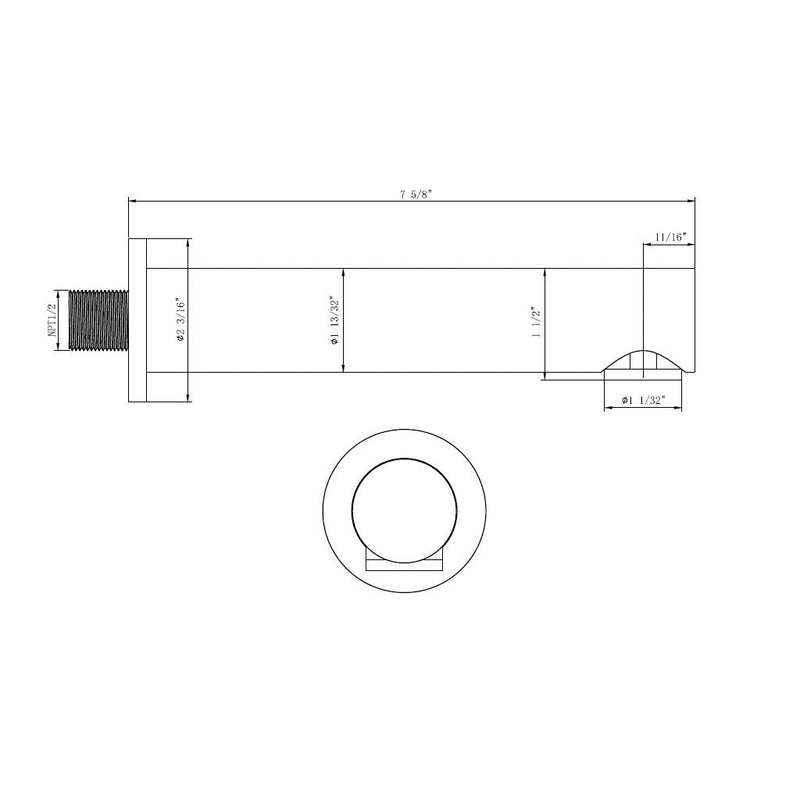

• Tub spout features:
• NPT 1/2 in. male inlet.
• Full brass construction.
• Adjustable scutcheon

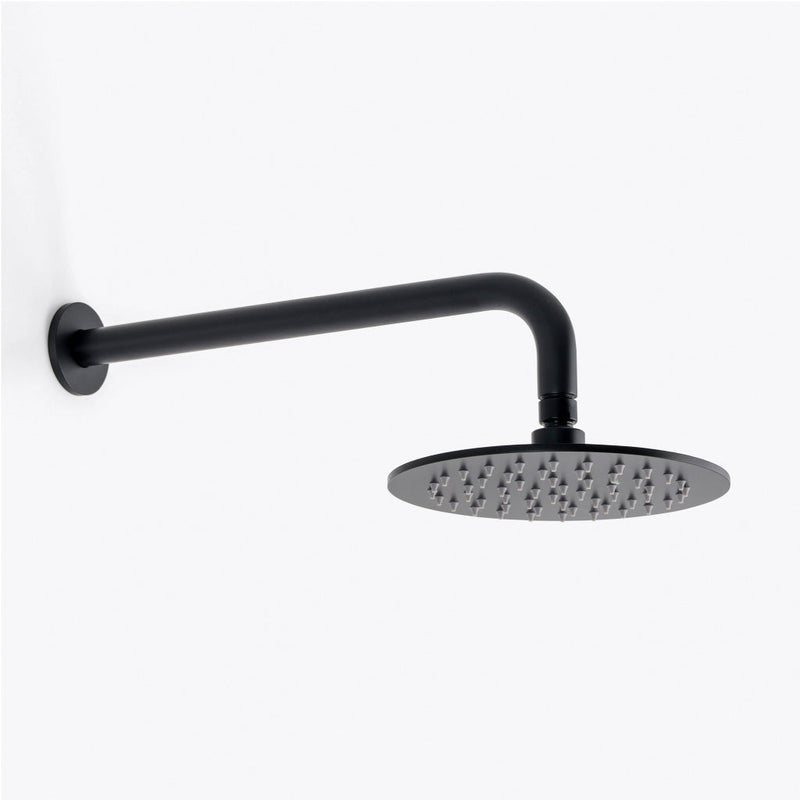

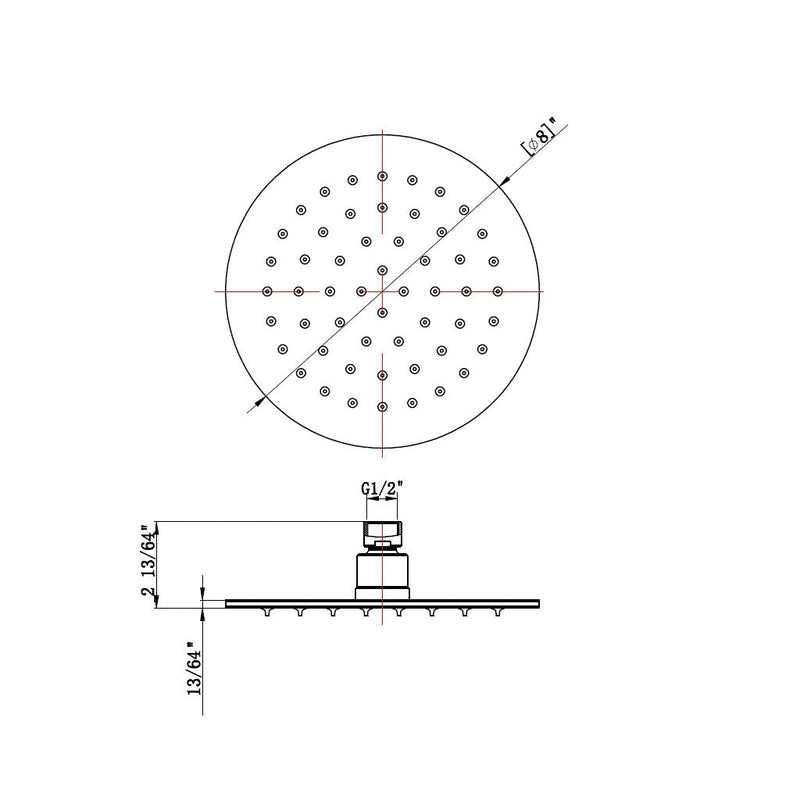

• Shower head features:
• Thin design (0.2 in. / 5 mm)
• G 1/2 in. female inlet
• Full rain spray single function
• 1.8 Gpm @ 80 PSI
• Silicone sharp nozzles easy to clean
• Made in stainless steel.

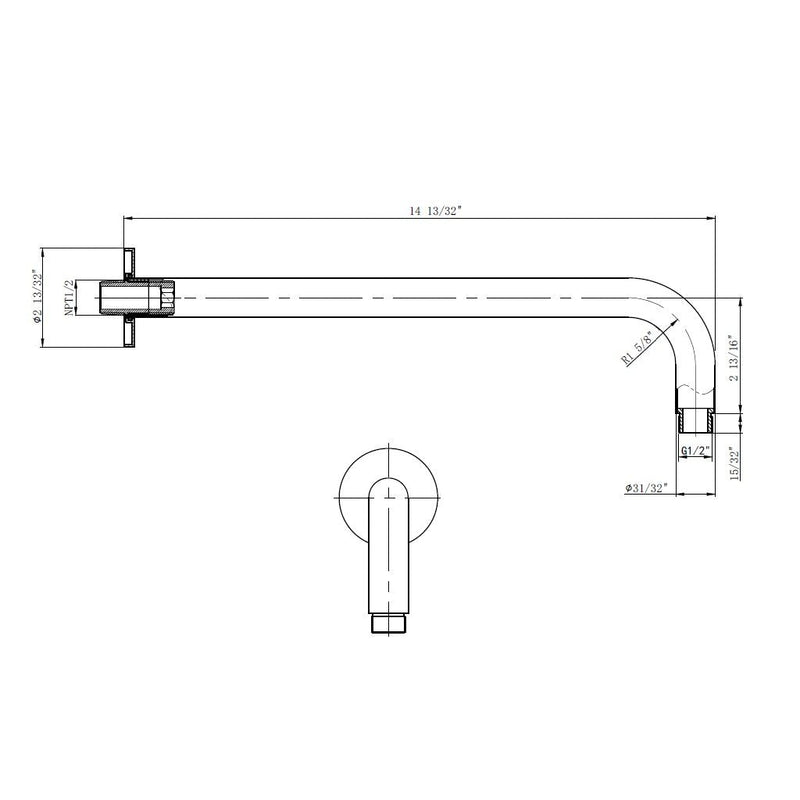

• Shower arm features:
• Wall mount.
• NPT 1/2 in. inlet . G 1/2 in. outlet
• 15" length
• Movil scutcheon
• Full brass construction.

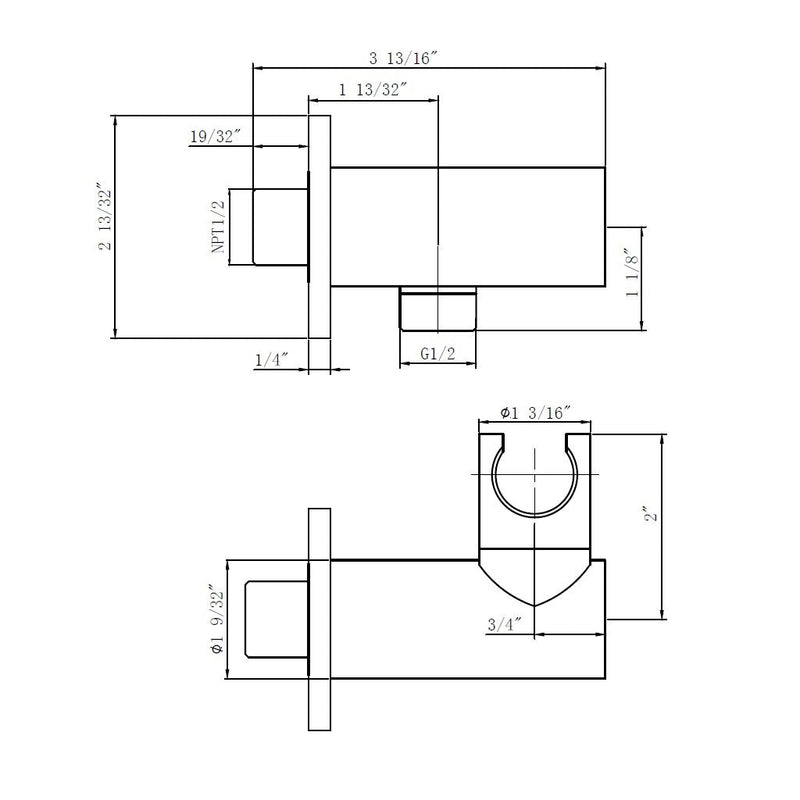

• Connector features:
• Round design with holder for hand shower.
• NPT 1/2 in. inlet. G 1/2 in. outlet
• Hose features:
• Length 60 in.
• Stainless Steel construction.
• NPT 1/2 in. inlet

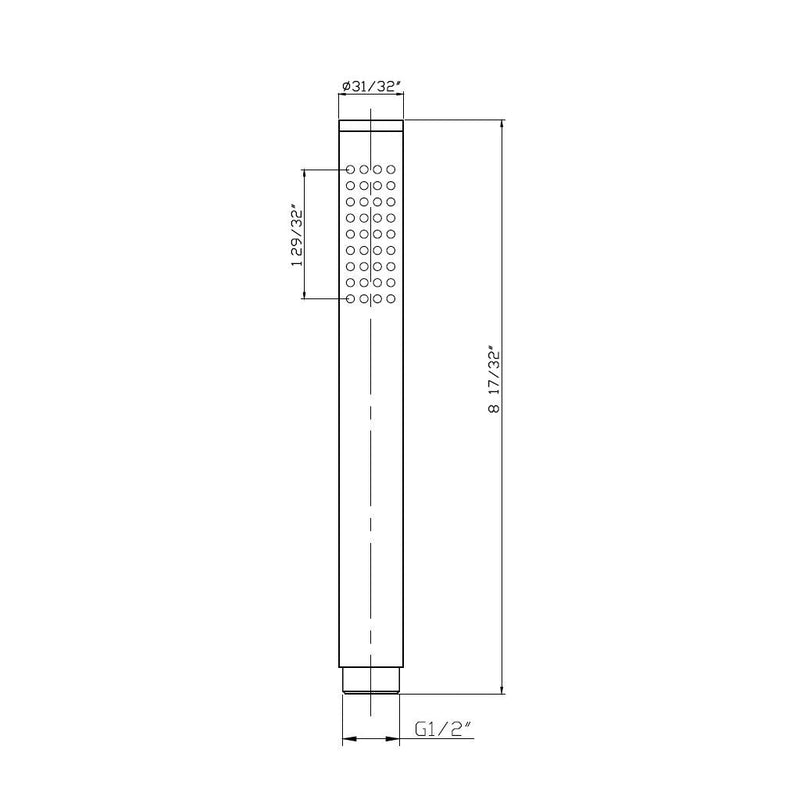

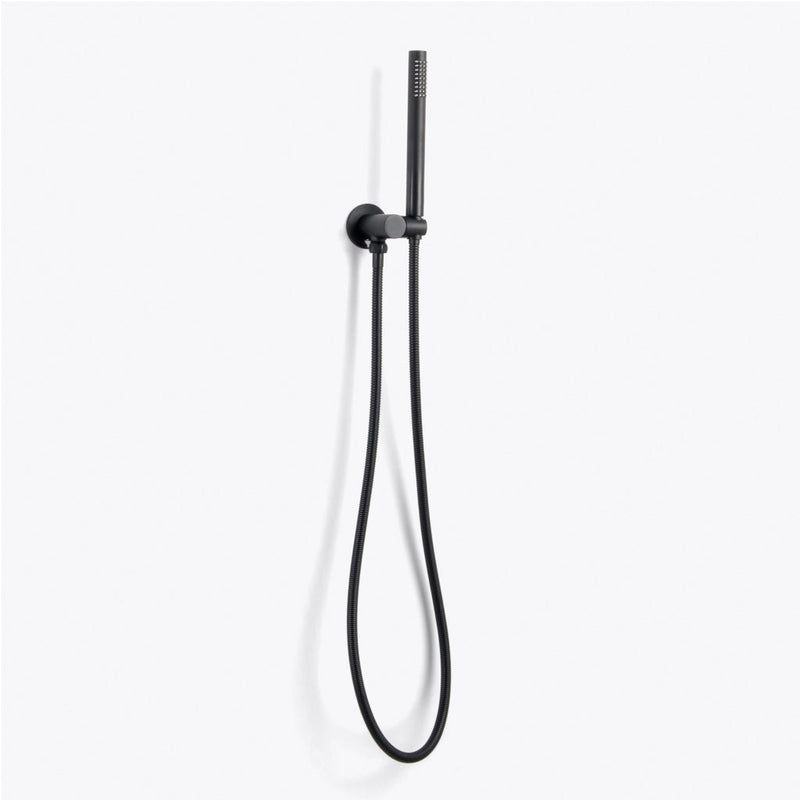

• Hand shower features:
• Round design.
• Only rain function.
• 1.8 Gpm
• G1/2 in. Inlet.
• Silicone nozzles easy to clean.
• Brass construction.
• Material: Brass
• Finish/Color: Matt Black
• Dimensions:
• Weight: 15.6 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• Easy Installation: Yes
