Features:

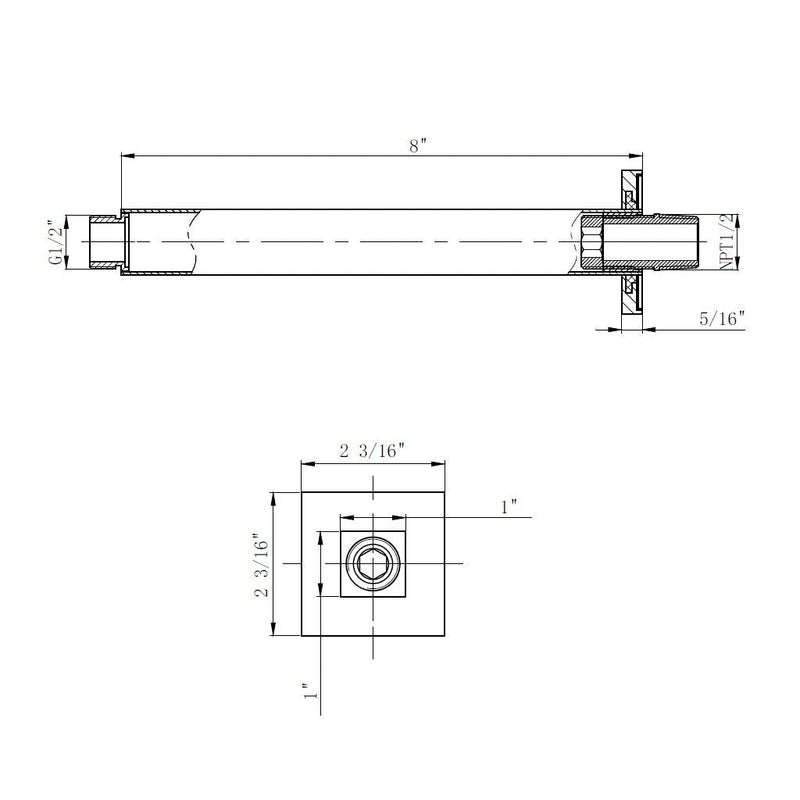

• Shower Arm:
• NPT 1/2 in. inlet
• G 1/2 in. Outlet

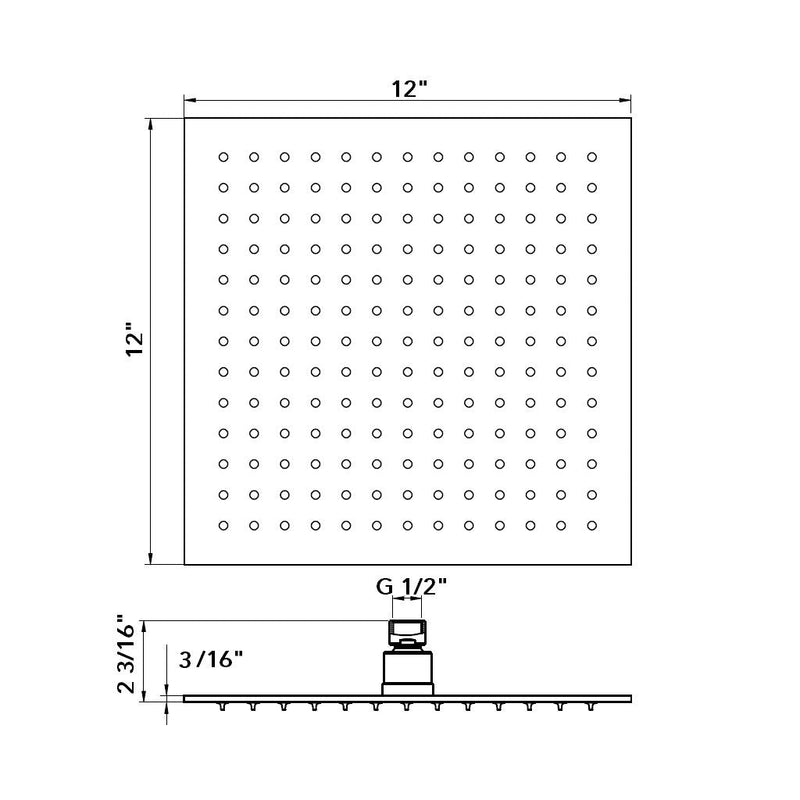

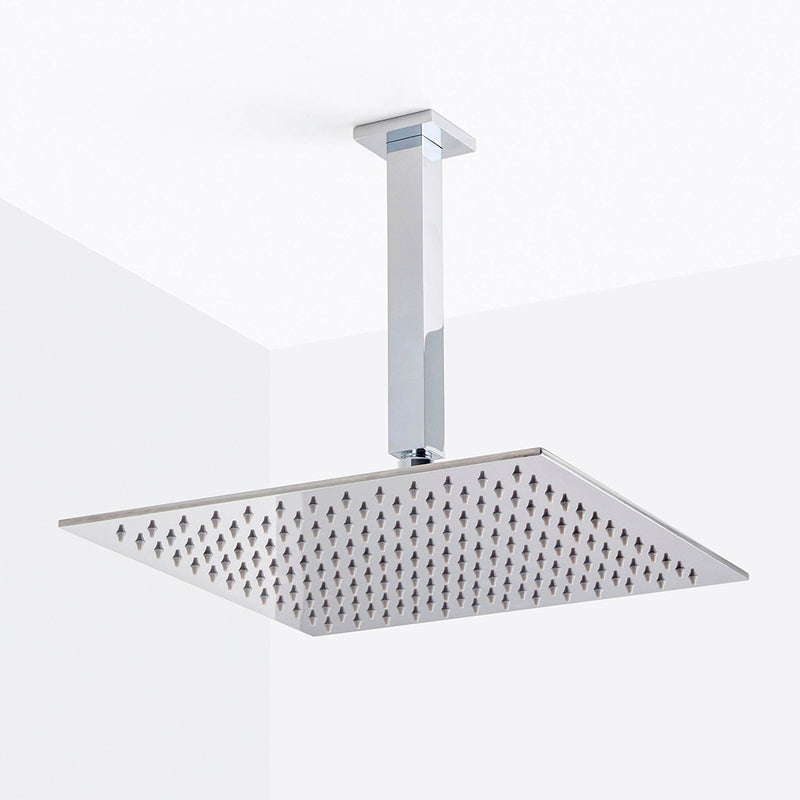

• Shower Head:
• Stainless steel construction
• Thin design (5mm / 0.2 in.)
• G 1/2 in. inlet
• Silicone sharp nozzles easy to clean
• 1.8 Gpm

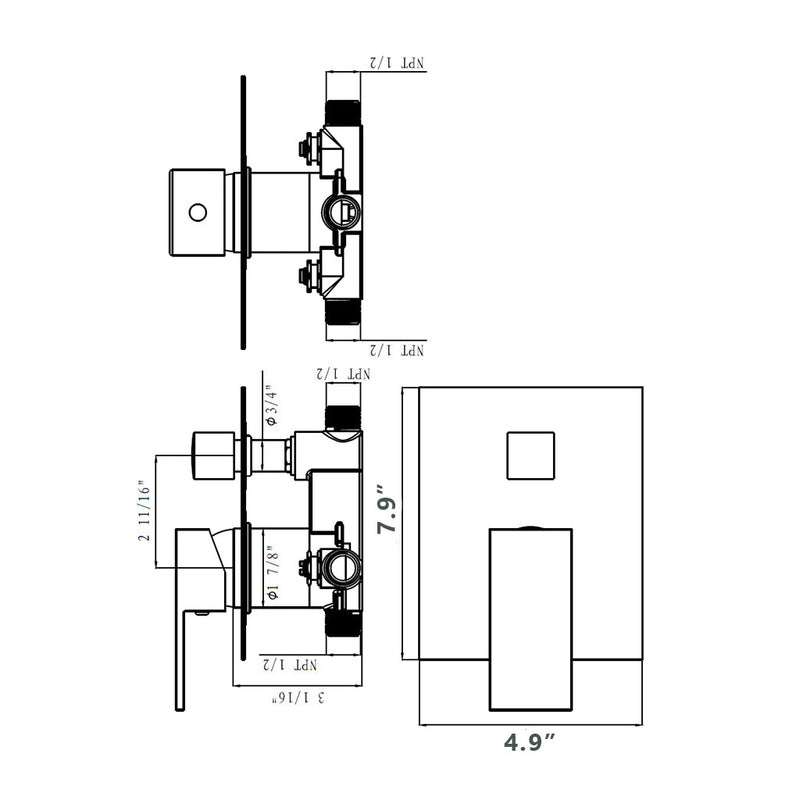

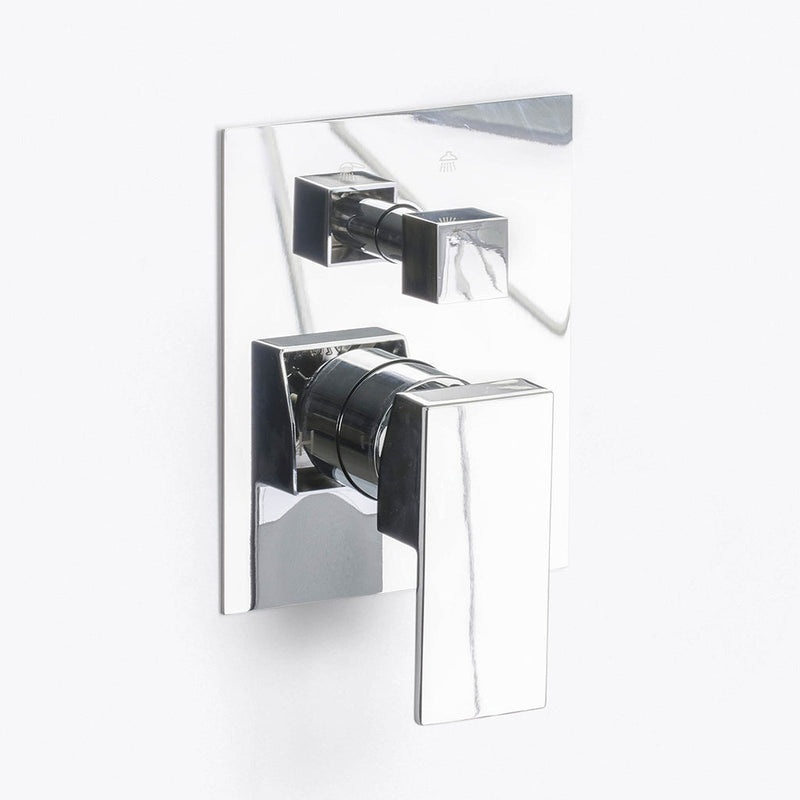

• Shower Mixer:

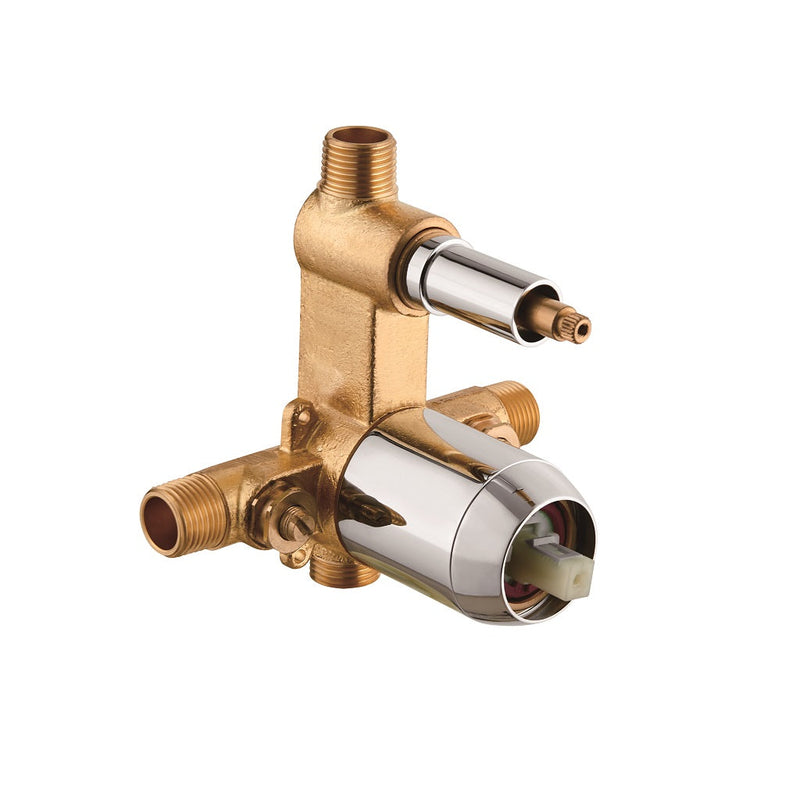

• Pressure balance rough-in valve with 2 way diverter.
• -Two way selectable through a diverter
• Shut-off valves and integrated anti-return valves
• Temperature and flow limiter incorporated in cartridge.
• Pressure balance cartridge adjust inlet pressure fluctuations
• Pressure balance cartridge prevent scalding, cold water supply stops when cold water pressure fail.
• Maximun outlet temperature and flow can be limited.
• Minimun working pressure: 20 Psi (1.4 Bar)
• Maximun working pressure: 125 Psi (8 bar)
• Recommended working pressure: 45 Psi (3 Bar)
• Maximun test pressure: 500 Psi (35 Bar)
• Hot water inlet max. temperature: 180°F (80°C)
• Water inlet and outlet threads: Male 1/2 in. NPT

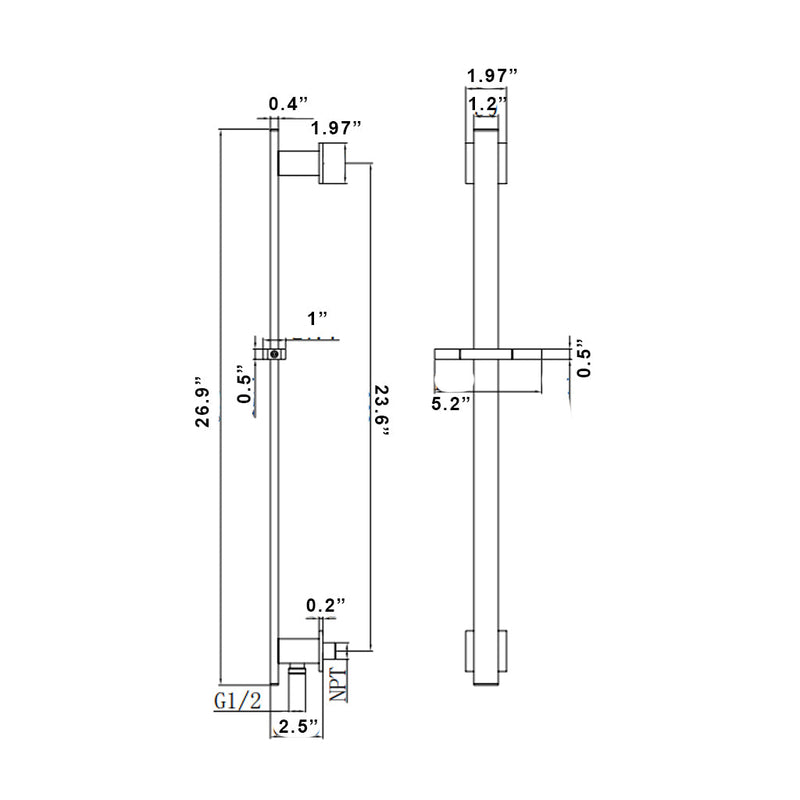

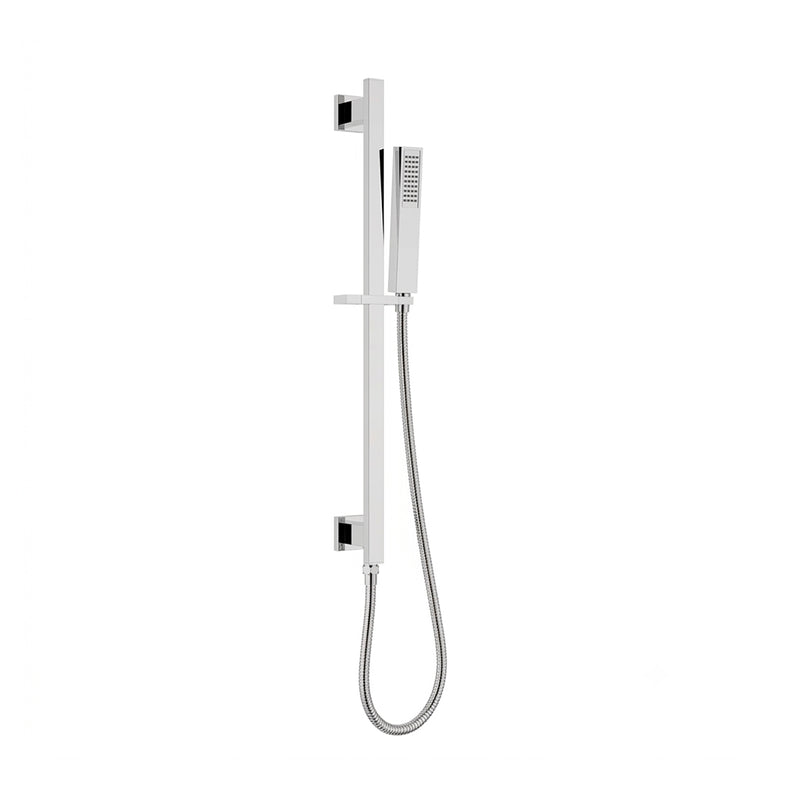

• Shower Slide Bar:
• Integrated Wall Elbow

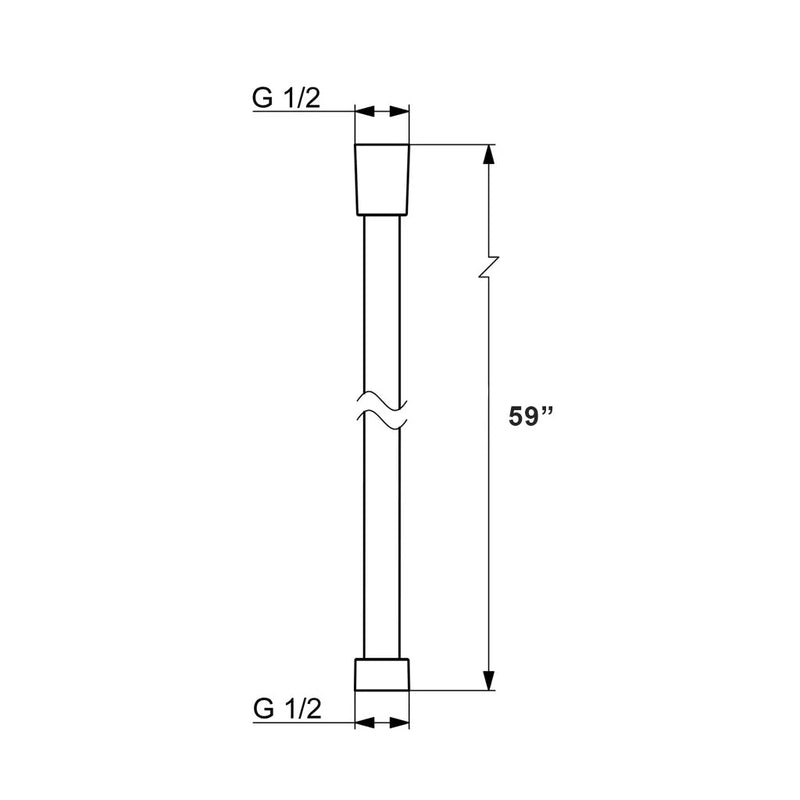

• Hose:
• Stainless steel construction
• 60 in. length
• Round connector on each end.
• Rubber washer on the bracket connector to prevent slipping.
• NPT 1/2 in. inlet and outlet connections.

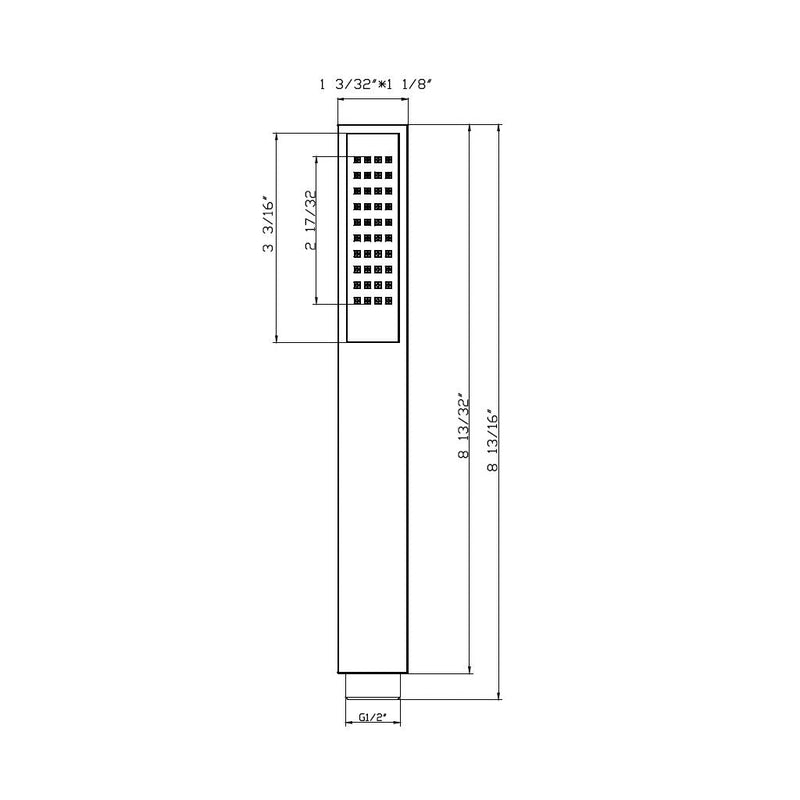

• Hand Shower:
• Only rain function
• 1.8 Gpm.
• Brass construction
• Silicone sharp nozzle easy to clean.
• G 1/2" inlet
• With back flow prevention check valve
• Material: Brass
• Finish/Color: Polished Chrome
• Dimensions:
• Weight: 11.5 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• Easy Installation: Yes

Documents:

• Spec Sheet (.PDF)
