Devon 2-Way Pressure Balance Trim Complete Shower Set - Wall Mount - 8" Brass/Brushed Nickel

Original price $0.00 - Original price $0.00
Original price $0.00
$874.00
$874.00 - $874.00
Current price $874.00
SKU COF.SET.DEV.08.02.BR.BNI
[additional]

Included:

  • COF.SHM.DEV.02.00.BR.BNI Shower mixer rough-in valve with trim.
  • COF.SHA.DEV.15.75.BR.BNI Shower arm wall mount 15 in. length.
  • COF.SHH.DEV.08.00.SS.BSS Shower head 8 in. slim design with sharp nozzles
  • COF.HHC.DEV.03.00.BR.BNI Connector with swivel holder
  • COF.HSH.DEV.01.00.AB.BNI Hand shower square with square silicone nozzles
  • COF.HHO.SCO.05.00.SS.BNI Hose 5 feet.
  • Qty: 1

Documents:

  • Spec Sheets (PDF) Download
  •

    [/additional]

    Pressure balanced 2-Way shower system of our family Devon. With this shower set you have everything you need to install your shower. It is a two-way system with outlet for shower head and outlet for hand shower. This system is available in different finishes. Composed of two-way pressure balanced mixer, connector with holder for hand shower, hand shower, hose, shower arm for wall installation and shower head of slim design.

    Features:

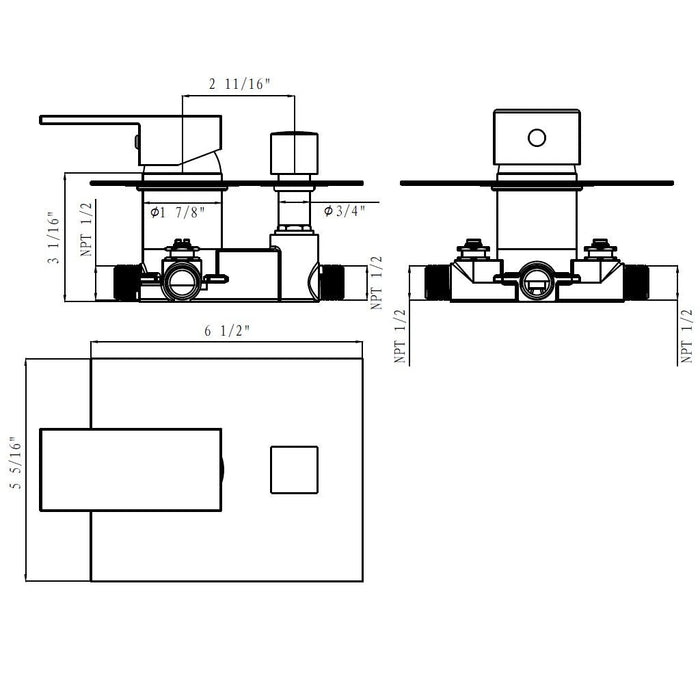

      Mixer features:

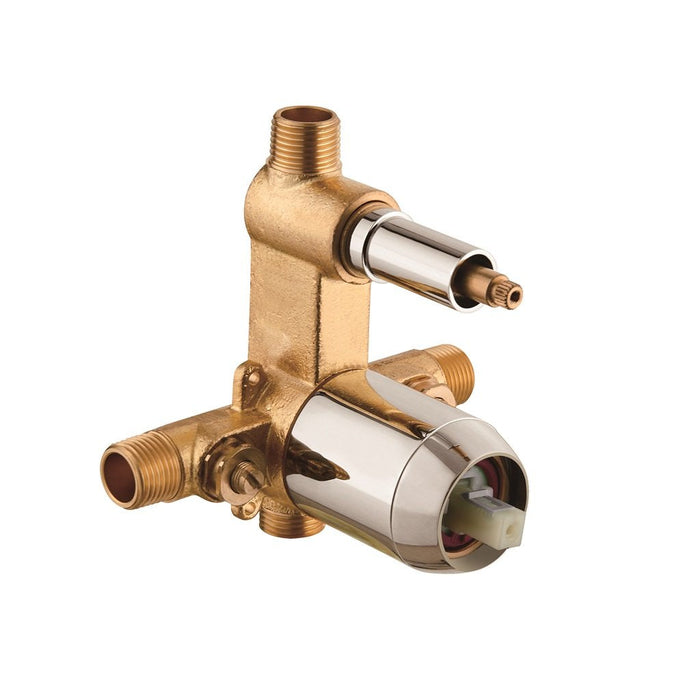

    • 2-Way Pressure balanced rough-in valve with two way diverter
    • Shut-off valves and integrated anti-return valves
    • Pressure balanced cartridge adjust inlet pressure fluctuations.
    • Pressure balanced cartridge prevent scalding, cold water supply stops when cold water pressure fail
    • Maximum outlet temperature and volume can be limited
    • Working pressure:
    • Min: 20 PSI (1.5 bar)
    • Max: 125 PSI (8 bar)
    • Recommended: 45 PSI (3 bar)
    • Hot water inlet max. temperature: 180 °F (80 °C)
    • Water inlet threads: 1/2 NPT male
    • Full brass

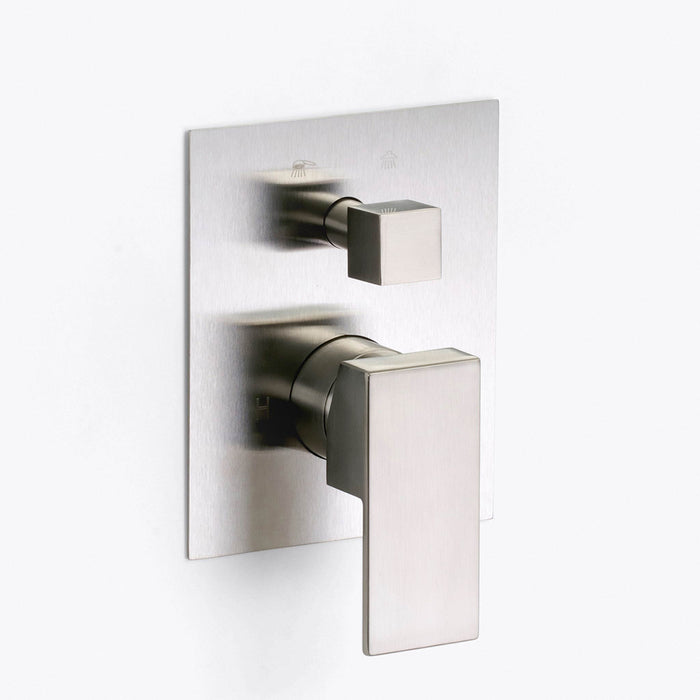

    • Trim features:
    • Square design
    • Full brass
    • Connector features:
    • Square design with swivel holder for hand shower.
    • NPT 1/2 in. inlet. G 1/2 in. outlet
    • Hose features:
    • Length 60 in.
    • Stainless Steel construction.
    • NPT 1/2 in. inlet

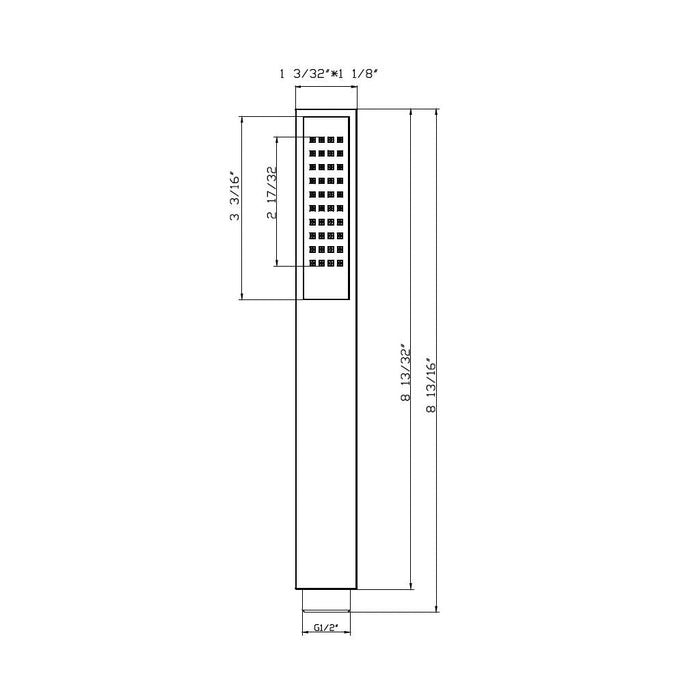

    • Hand shower features:
    • Square design.
    • Only rain function.
    • 1.8 Gpm
    • G1/2 in. Inlet.
    • Silicone square nozzles easy to clean.
    • ABS construction.

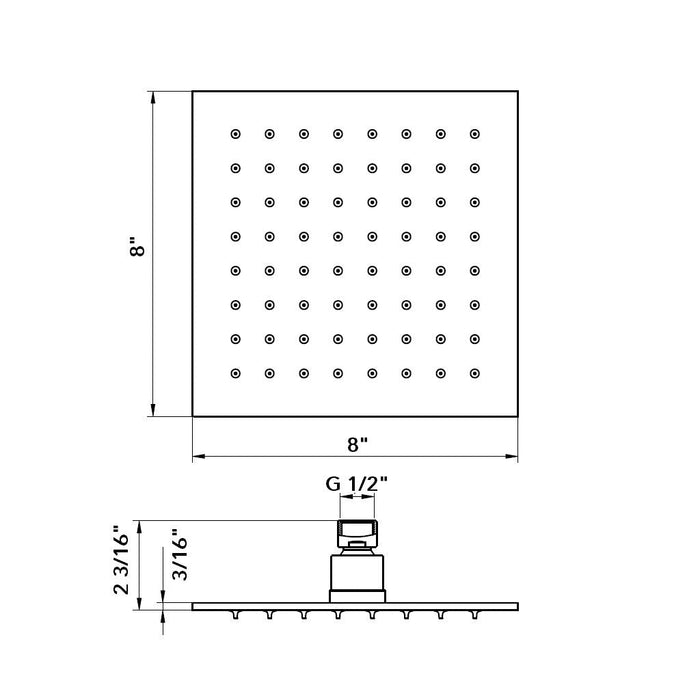

    • Shower head features:
    • Thin design (0.2 in. / 5 mm)
    • G 1/2 in. female inlet
    • Full rain spray single function
    • 1.8 Gpm @ 80 PSI
    • Silicone sharp nozzles easy to clean
    • Made in stainless steel.

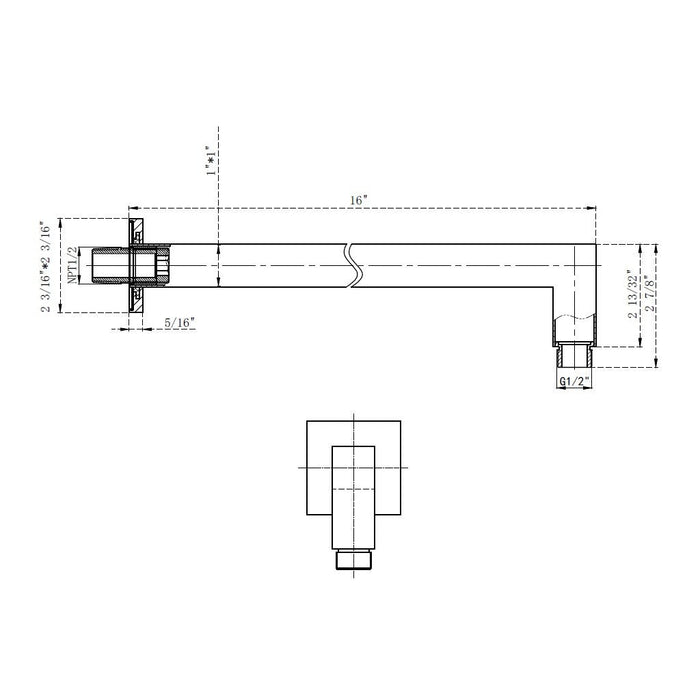

    • Shower arm features:
    • Wall mount.
    • NPT 1/2 in. inlet . G 1/2 in. outlet
    • 15" length
    • Mobil scutcheon
    • Full brass construction.
    • Material: Brass
    • Finish/Color: Brushed Nickel
    • Dimensions:
    • Weight: 10.7 lb.
    • Rustproof: Yes
    • Warranty (Years): 1
    • Material Warranty: Yes
    • Finish Warranty: Yes
    • UPC Certified: Yes
    • Easy Installation: Yes
