Devon 2-Way Pressure Balance Trim Complete Shower Set - Ceiling Mount - 12" Brass/Matt Black

Original price $0.00 - Original price $0.00
Original price $0.00
$1,001.00
$1,001.00 - $1,001.00
Current price $1,001.00
SKU COF.SET.DEV.12.03.BR.MBL
[additional]

Included:

  • COF.SHM.DEV.02.00.BR.MBL Shower mixer rough-in valve with trim.
  • COF.SHA.DEV.08.00.BR.MBL Shower arm ceiling mount 8 in. length.
  • COF.SHH.DEV.12.00.SS.MBL Shower head 12 in. slim design with sharp nozzles
  • COF.HHC.DEV.03.00.BR.MBL Connector with swivel holder
  • COF.HSH.DEV.01.00.AB.MBL Hand shower square with square silicone nozzles
  • COF.HHO.SCO.05.00.SS.MBL Hose 5 feet.
  • Qty: 1

Documents:

  • Spec Sheets (PDF) Download

  • [/additional]

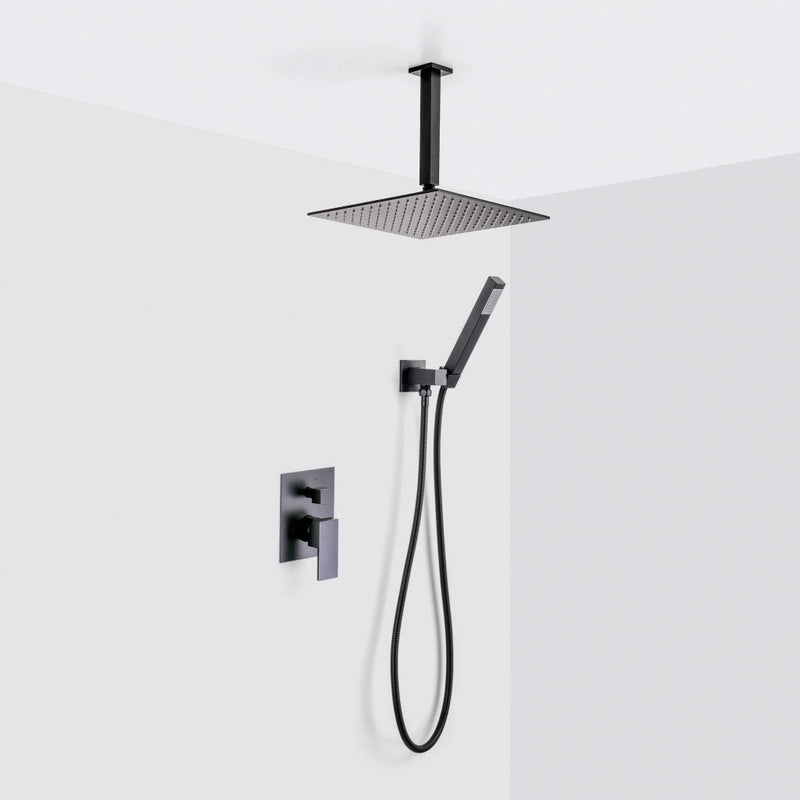

    Pressure balanced 2-Way shower system of our family Devon. With this shower set you have everything you need to install your shower. It is a two-way system with outlet for shower head and outlet for hand shower. This system is available in different finishes. Composed of two-way pressure balanced mixer, connector with holder for hand shower, hand shower, hose, shower arm for ceiling installation and shower head of slim design.

    Features:

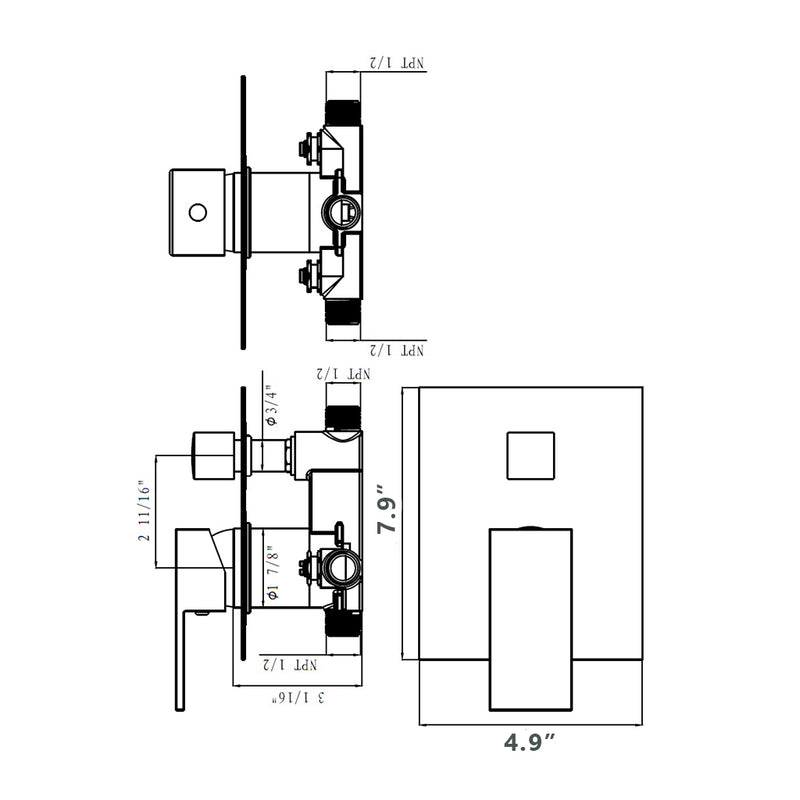

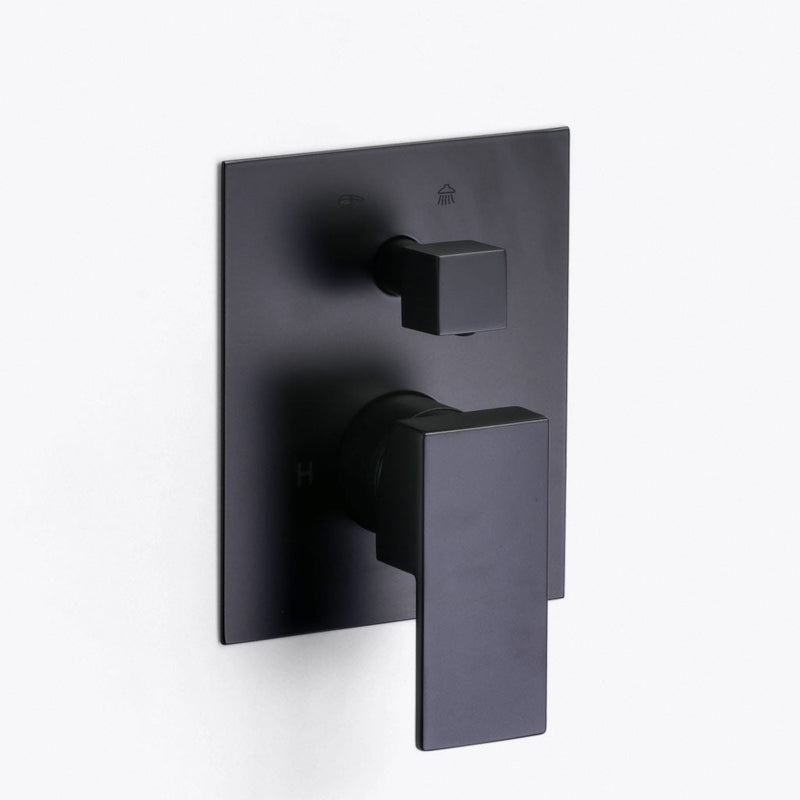

      Mixer features:
    • 2-Way Pressure balanced rough-in valve with two way diverter
    • Shut-off valves and integrated anti-return valves
    • Pressure balanced cartridge adjust inlet pressure fluctuations.
    • Pressure balanced cartridge prevent scalding, cold water supply stops when cold water pressure fail
    • Maximum outlet temperature and volume can be limited
    • Working pressure:
    • Min: 20 PSI (1.5 bar)
    • Max: 125 PSI (8 bar)
    • Recommended: 45 PSI (3 bar)
    • Hot water inlet max. temperature: 180 °F (80 °C)
    • Water inlet threads: 1/2 NPT male
    • Full brass
    • Trim features:
    • Square design
    • Full brass

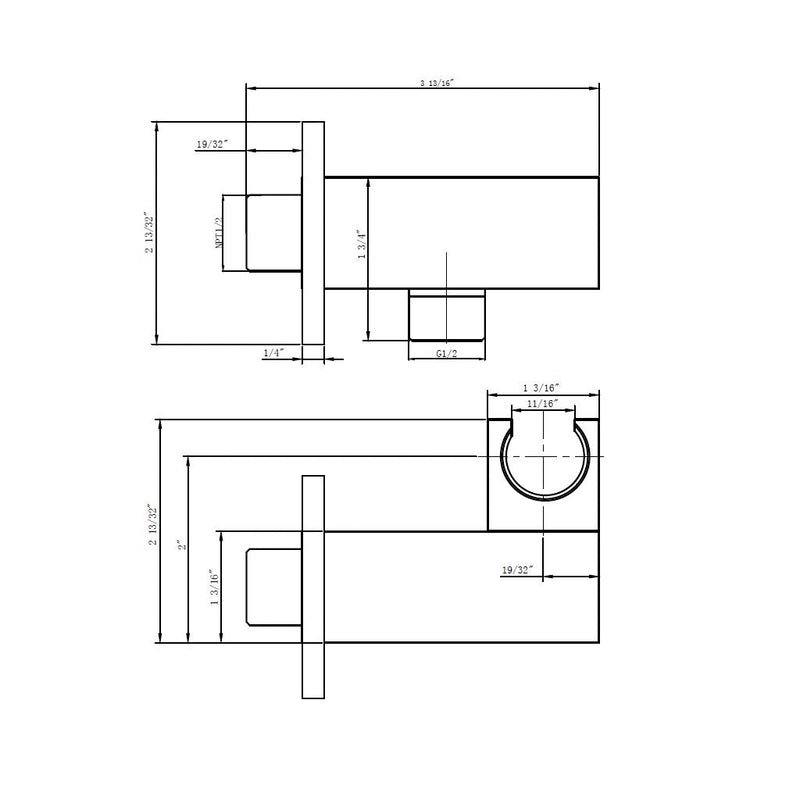

    • Connector features:
    • Square design with swivel holder for hand shower.
    • NPT 1/2 in. inlet. G 1/2 in. outlet
    • Hose features:
    • Length 60 in.
    • Stainless Steel construction.
    • NPT 1/2 in. inlet

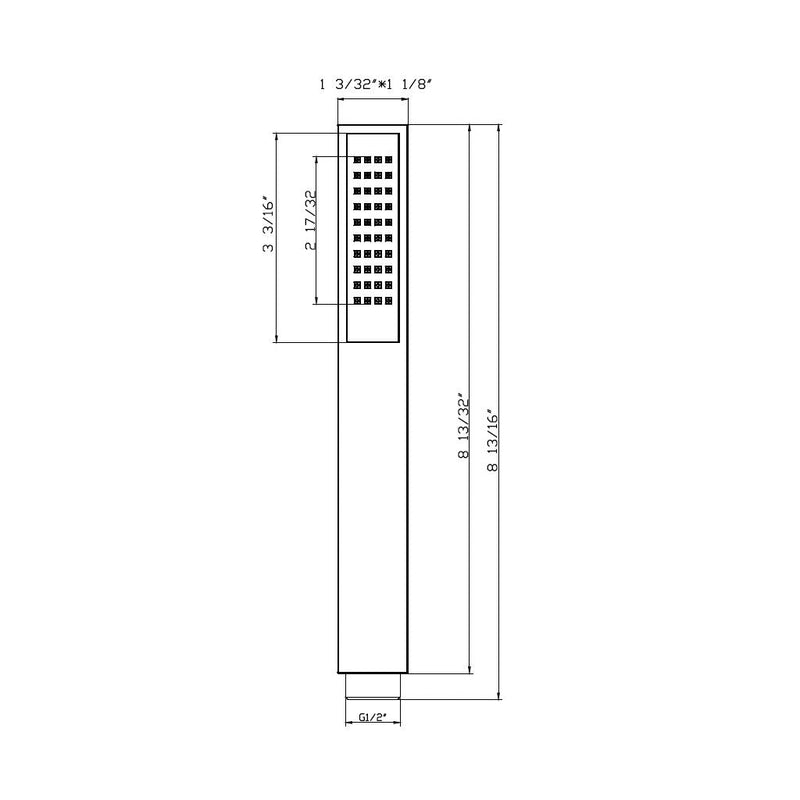

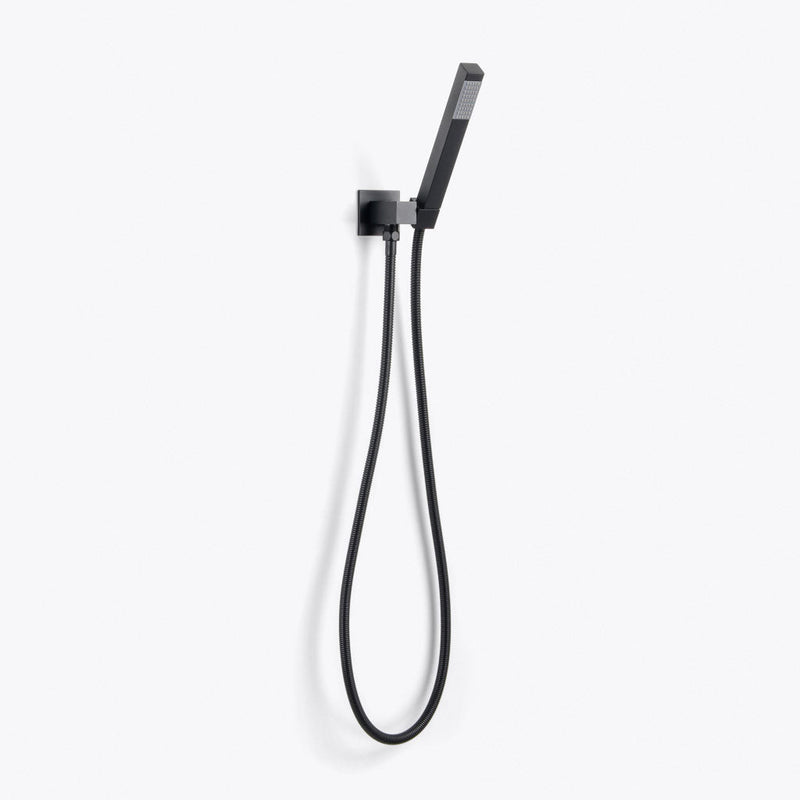

    • Hand shower features:
    • Square design.
    • Only rain function.
    • 1.8 Gpm
    • G1/2 in. Inlet.
    • Silicone square nozzles easy to clean.
    • ABS construction.

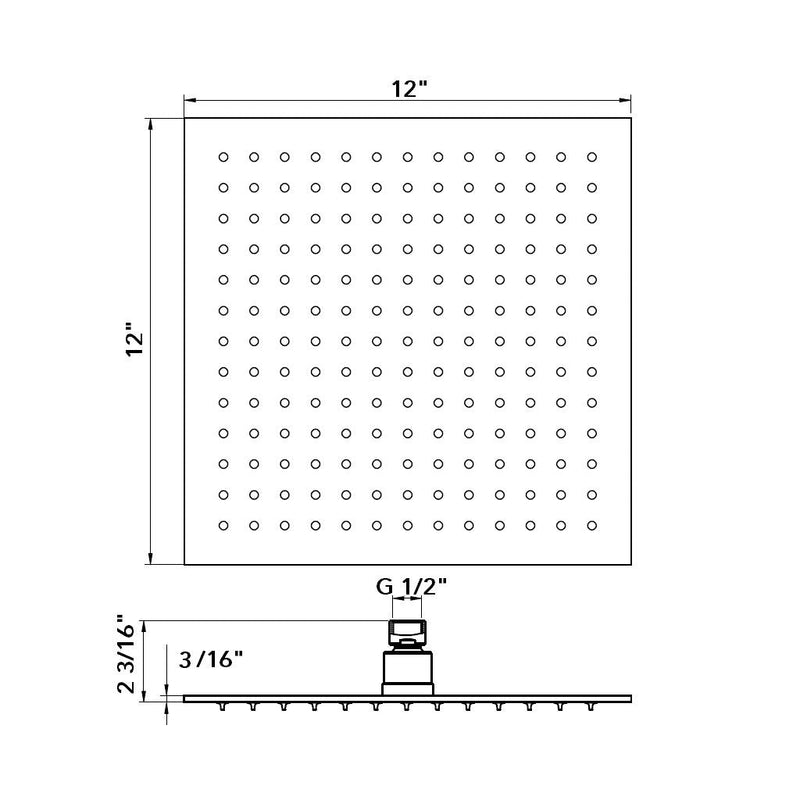

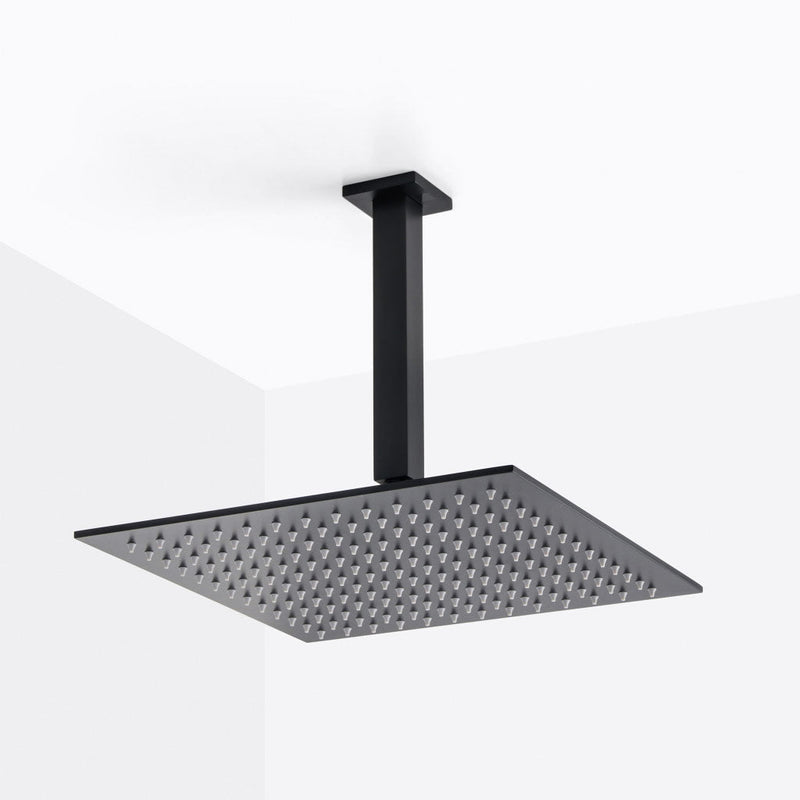

    • Shower head features:
    • Thin design (0.2 in. / 5 mm)
    • G 1/2 in. female inlet
    • Full rain spray single function
    • 1.8 Gpm @ 80 PSI
    • Silicone sharp nozzles easy to clean
    • Made in stainless steel.

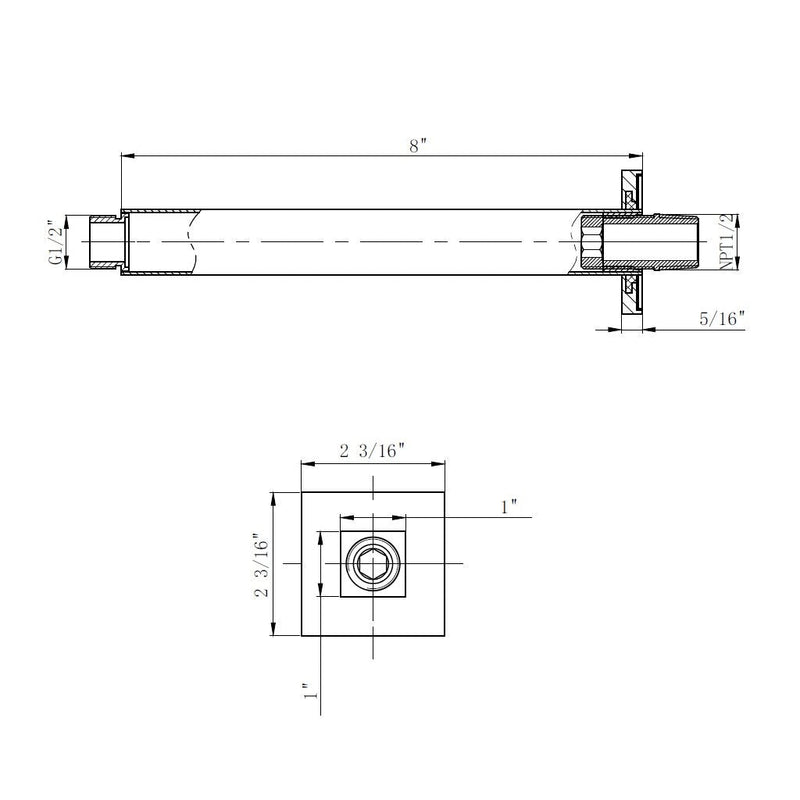

    • Shower arm features:
    • Ceiling mount.
    • NPT 1/2 in. inlet . G 1/2 in. outlet
    • 8" length
    • Mobil scutcheon
    • Full brass construction.
    • Material: Brass
    • Finish/Color: Matt Black
    • Dimensions:
    • Weight: 11.8 lb.
    • Rustproof: Yes
    • Warranty (Years): 1
    • Material Warranty: Yes
    • Finish Warranty: Yes
    • UPC Certified: Yes
    • Easy Installation: Yes
