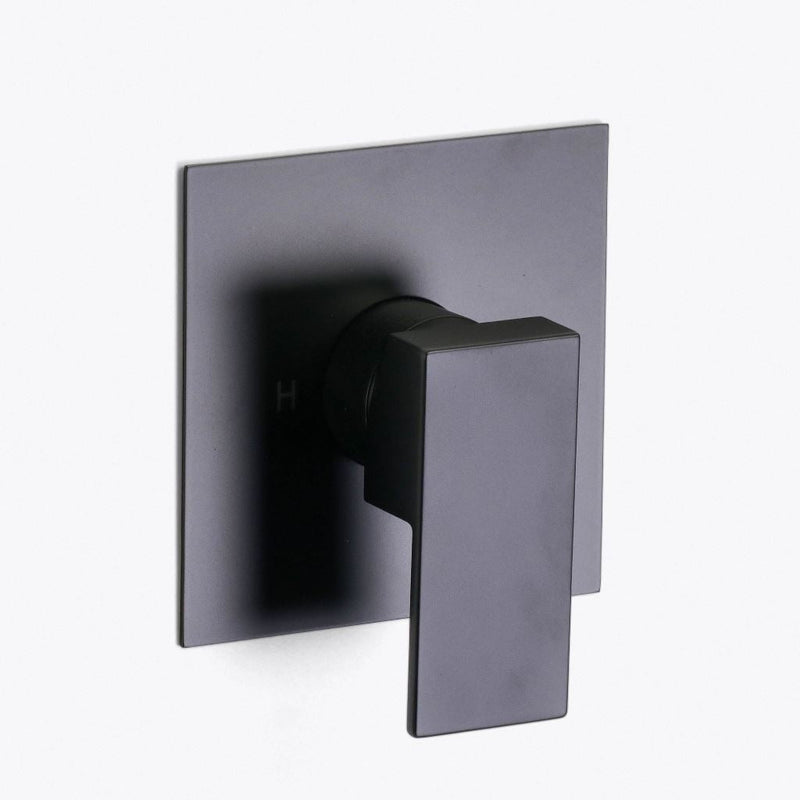

Devon 1 Way Pressure Balance Shower Mixer - Wall Mount - 6W x 6H" Brass/Matt Black
Included:

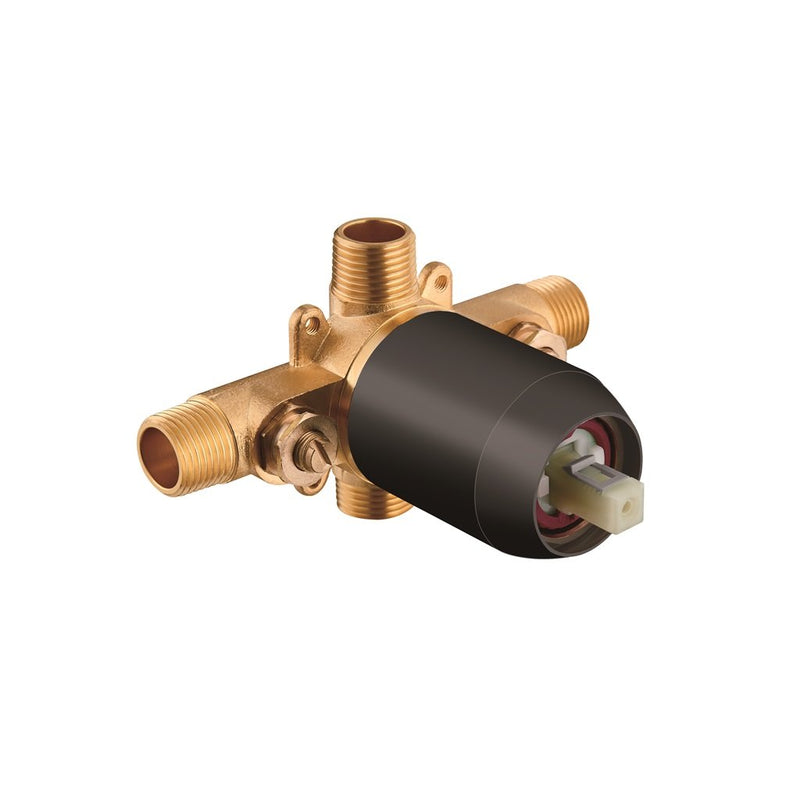

- Rough-in valve
- Trim plate
- Handle
- Qty: 1
Documents:
[/additional]
Pressure balance shower mixer with 1 outlet of our family Devon. With this type of mixer you can maintain a precise water temperature during the shower. It protects you from any sudden change in the pressure of the water supply. The presostatic valve mixes the hot and cold water at the preselected temperature and reacts instantaneously to any change in the pressure of the water supply by readjusting the hot and cold water mixture to maintain a constant temperature at the outlet. If there is a failure in the supply pressure of cold or hot water, the pressure valve will close automatically. It is very convenient and safe, will keep the temperature of the preselected water and allow you to relax and enjoy your shower. It is ideal for all types of bathrooms, especially the bathroom for children that prevents possible burns due to pressure drops in the cold water.It has two outputs, one direct and one secondary. If we connect the secondary output to a bathtub spout with diverter, we convert the system into a two ways system. The system includes rough-in valve and trim. Available in different finishes and versions.
Features:
- Pressure balance rough-in valve 1 way.
- Possibility of converting the system into a two way through a bathtub spout with diverter.
- Shut-off valves and integrated anti-return valves
- Temperature and flow limiter incorporated in cartridge.
- Pressure balance cartridge adjust inlet pressure fluctuations
- Pressure balance cartridge prevent scalding, cold water supply stops when cold water pressure fail.
- Maximun outlet temperature and flow can be limited.
- Minimun working pressure: 20 Psi (1.4 Bar)
- Maximun working pressure: 125 Psi (8 bar)
- Recommended working pressure: 45 Psi (3 Bar)
- Maximun test pressure: 500 Psi (35 Bar)
- Hot water inlet max. temperature: 180°F (80°C)
- Water inlet and outlet threads: Male 1/2 in. NPT
- Material: Brass
- Finish/Color: Matt Black

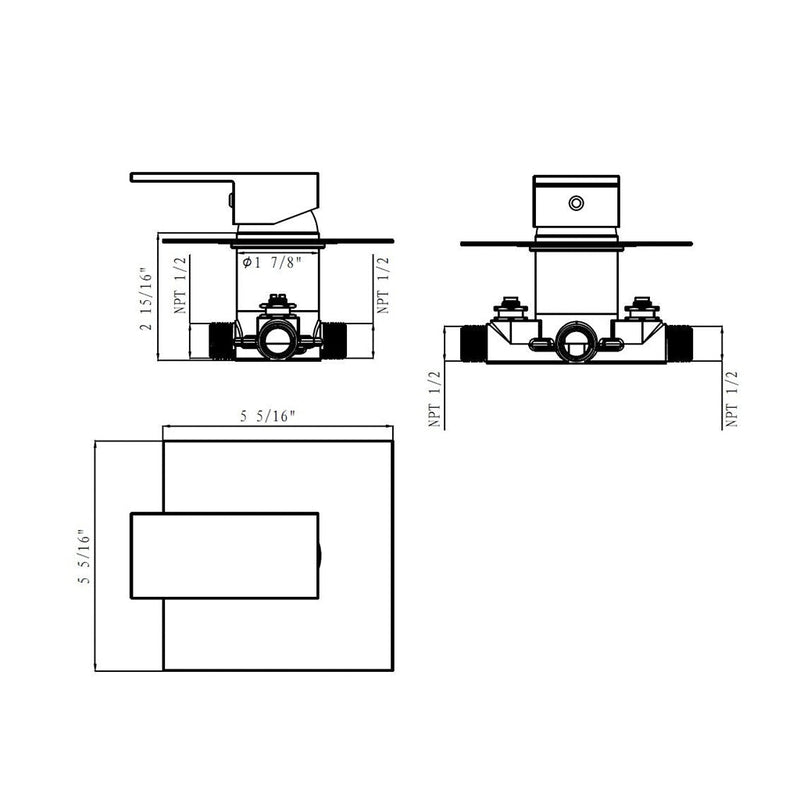

- Dimensions: W: 5.31" * H: 5.31" * D: 3"
- Weight: 3.3 lb.
- Rustproof: Yes
- Warranty (Years): 1
- Material Warranty: Yes
- Finish Warranty: Yes
- UPC Certified: Yes
- Easy Installation: Yes
