Devon 1-Way Pressure Balance Trim Complete Shower Set - Wall Mount - 8" Brass/Polished Chrome

Pressure balanced 1-Way shower system of our family Devon. With this shower set you have everything you need to install your shower. It is a one-way system with outlet for shower head. This system is available in different finishes. Composed of one-way pressure balanced mixer, shower arm for wall installation and shower head of slim design.

Features:

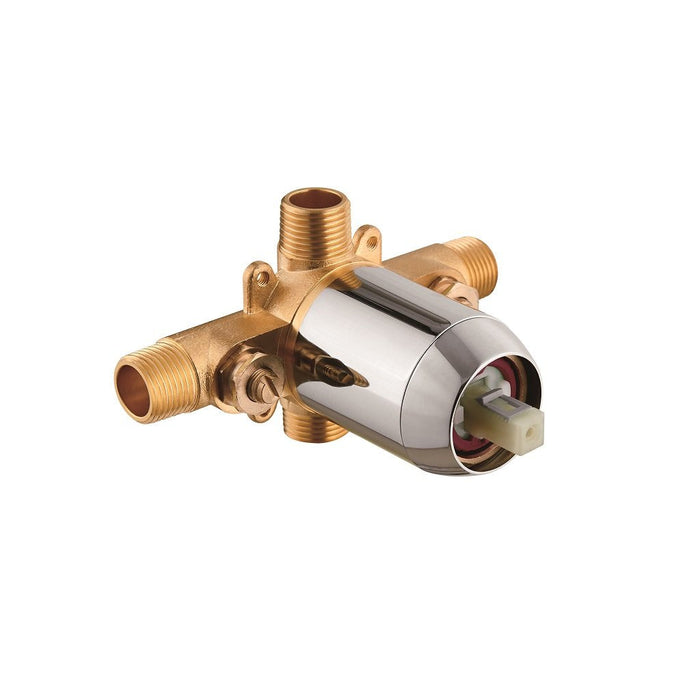

• Mixer features:
• 1-Way Pressure balanced rough-in valve
• Shut-off valves and integrated anti-return valves
• Pressure balanced cartridge adjust inlet pressure fluctuations.
• Pressure balanced cartridge prevent scalding, cold water supply stops when cold water pressure fail
• Maximum outlet temperature and volume can be limited
• Working pressure:
• Min: 20 PSI (1.5 bar)
• Max: 125 PSI (8 bar)
• Recommended: 45 PSI (3 bar)
• Hot water inlet max. temperature: 180 °F (80 °C)
• Water inlet threads: 1/2 NPT male
• Full brass
• Trim features:
• Square design
• Full brass

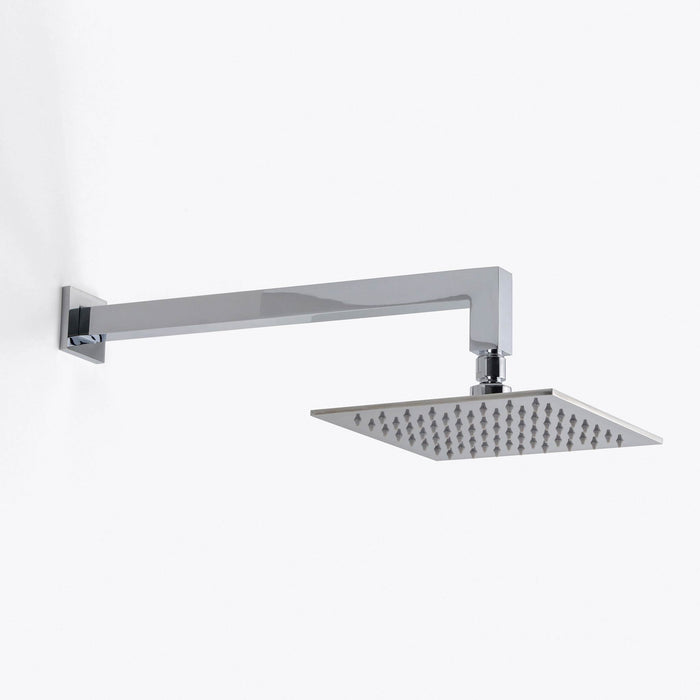

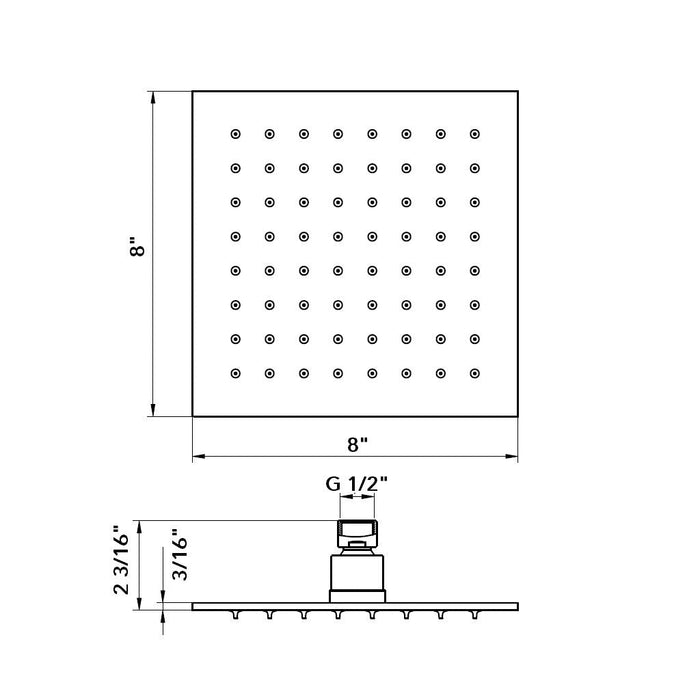

• Shower head features:
• Thin design (0.2 in. / 5 mm)
• G 1/2 in. female inlet
• Full rain spray single function
• 1.8 Gpm @ 80 PSI
• Silicone sharp nozzles easy to clean
• Made in stainless steel.

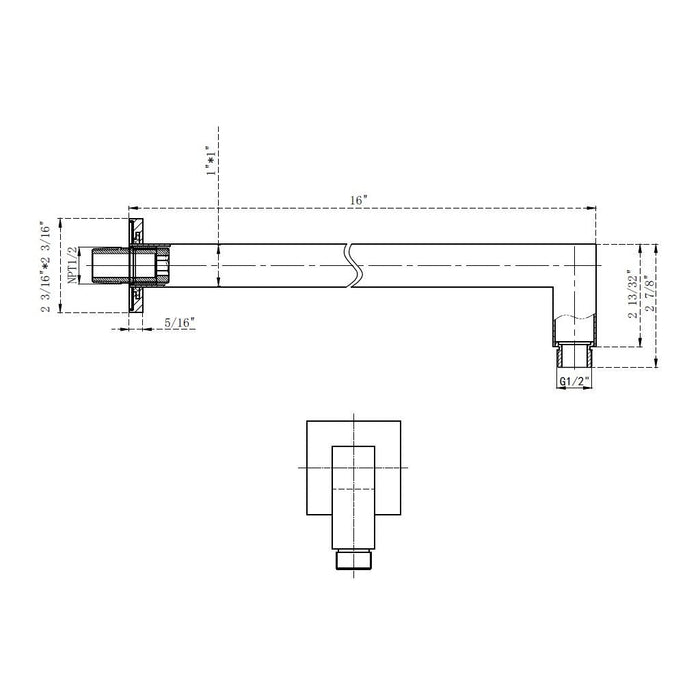

• Shower arm features:
• Wall mount.
• NPT 1/2 in. inlet . G 1/2 in. outlet
• 15" length
• Mobil scutcheon
• Full brass construction.
• Material: Brass
• Finish/Color: Polished Chrome
• Dimensions:
• Weight: 7.3 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• Easy Installation: Yes

Documents:

• Spec Sheets (PDF)
