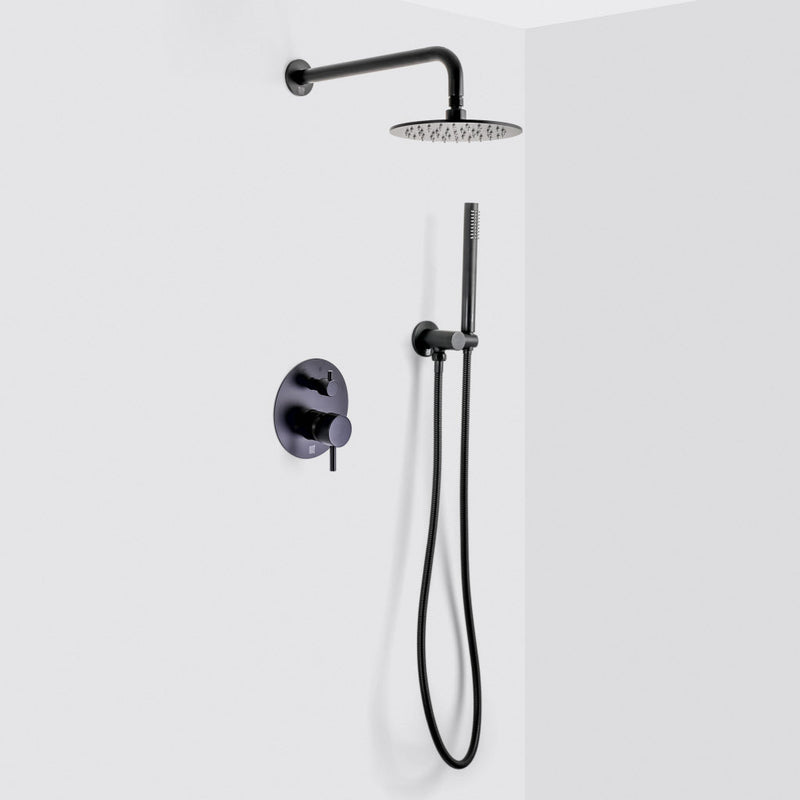

Metro 2-Way Pressure Balance Trim Complete Shower Set - Wall Mount - 8" Brass/Matt Black

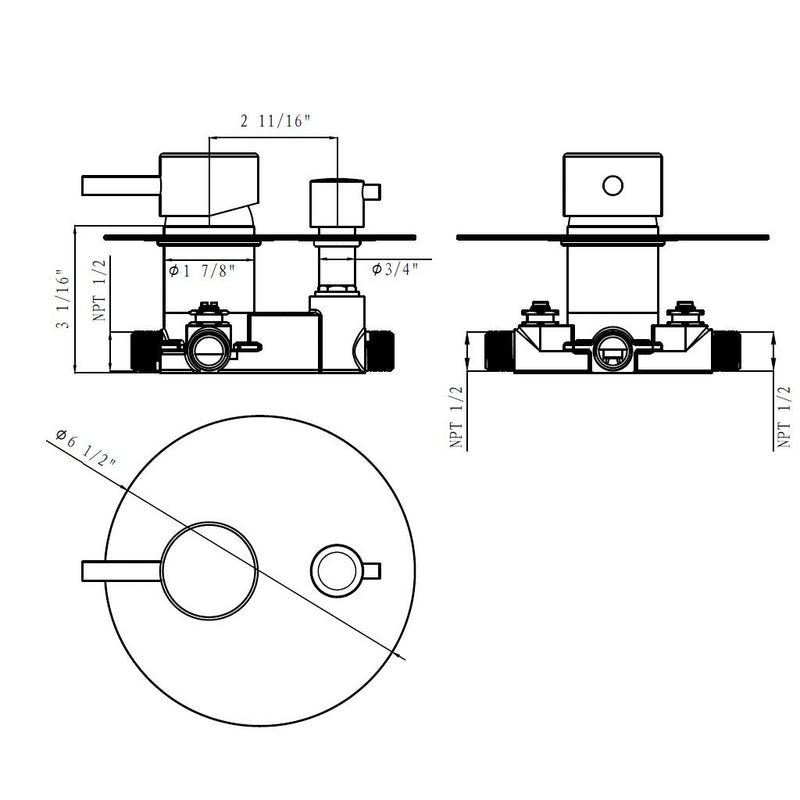

• Mixer features:

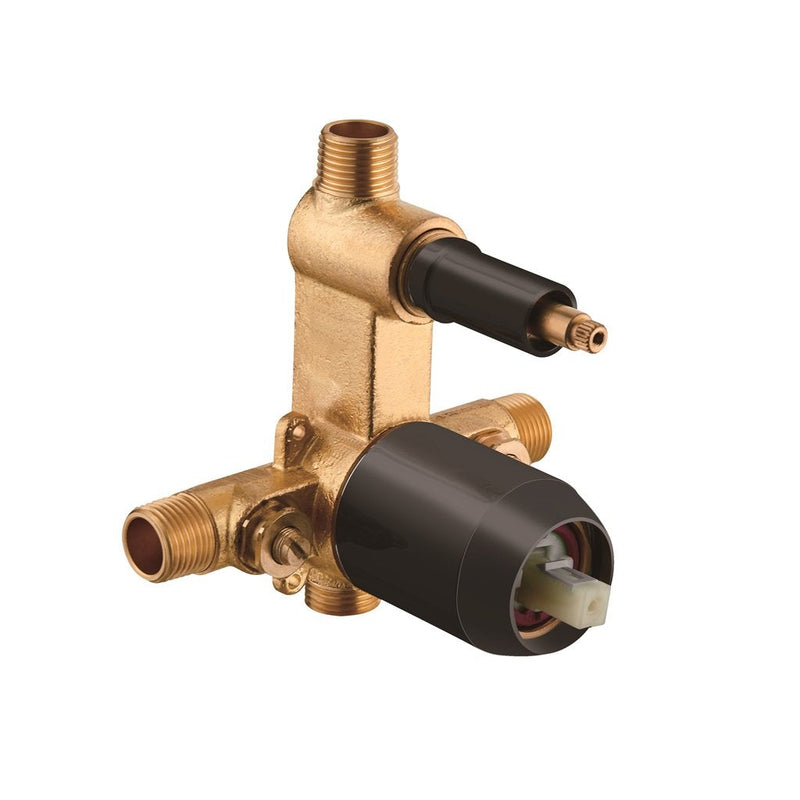

• 2-Way Pressure balanced rough-in valve with two way diverter
• Shut-off valves and integrated anti-return valves
• Pressure balanced cartridge adjust inlet pressure fluctuations.
• Pressure balanced cartridge prevent scalding, cold water supply stops when cold water pressure fail
• Maximum outlet temperature and volume can be limited
• Working pressure:
• Min: 20 PSI (1.5 bar)
• Max: 125 PSI (8 bar)
• Recommended: 45 PSI (3 bar)
• Hot water inlet max. temperature: 180 °F (80 °C)
• Water inlet threads: 1/2 NPT male
• Full brass

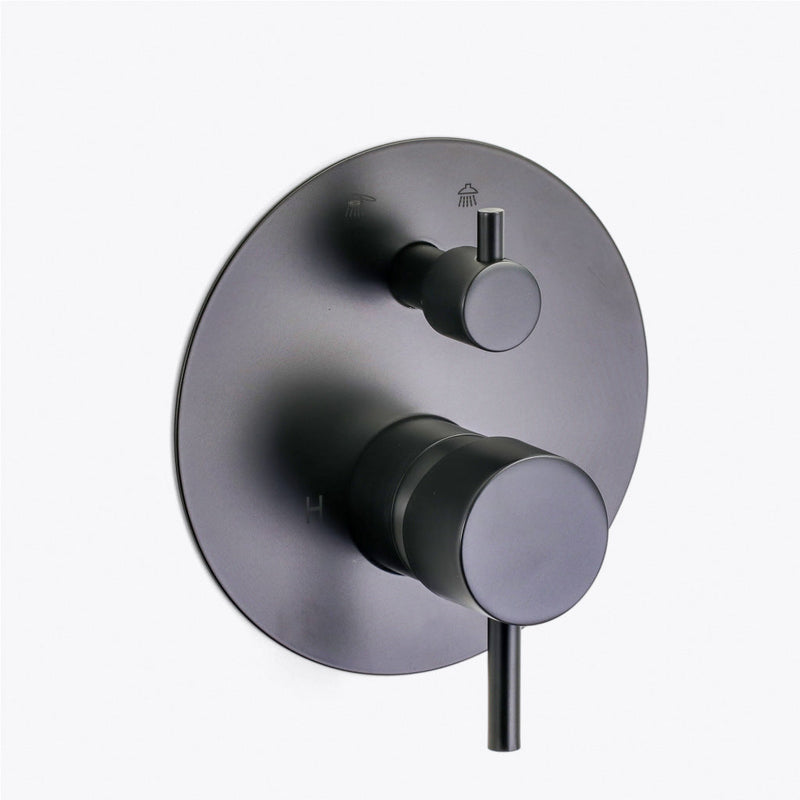

• Trim features:
• Round design
• Full brass

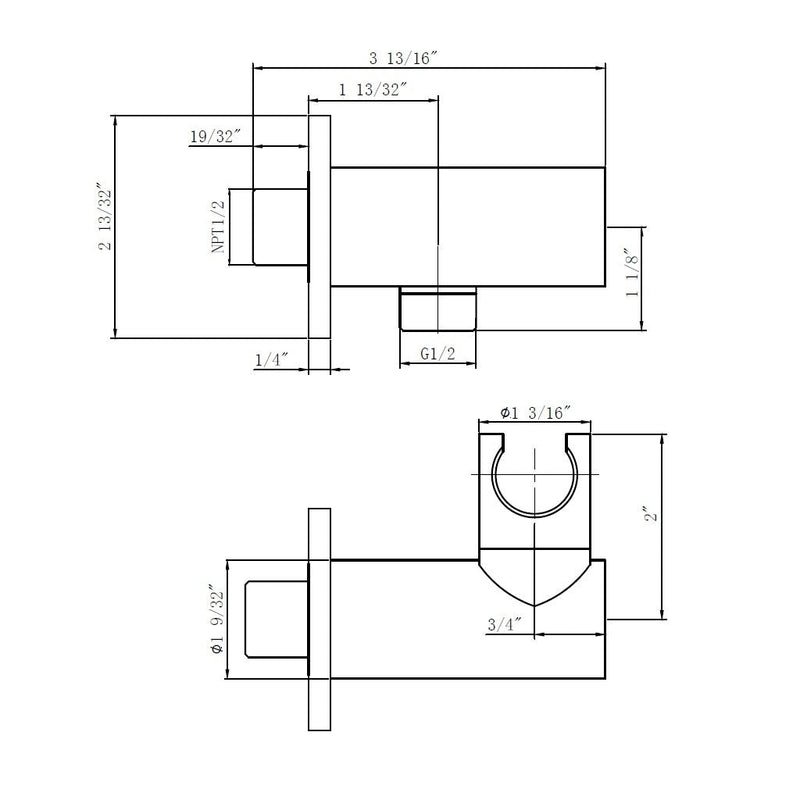

• Connector features:
• Round design with swivel holder for hand shower.
• NPT 1/2 in. inlet. G 1/2 in. outlet
• Hose features:
• Length 60 in.
• Stainless Steel construction.
• NPT 1/2 in. inlet

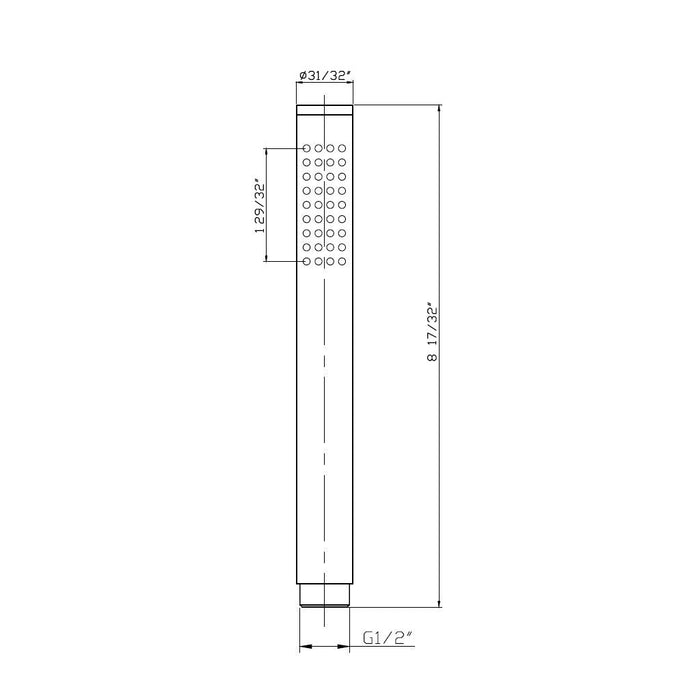

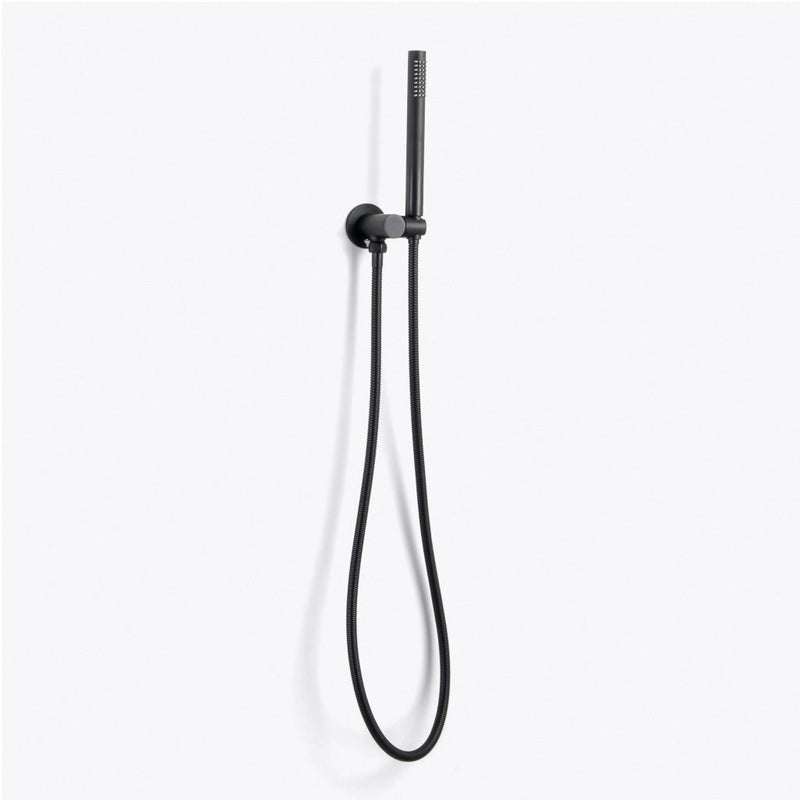

• Hand shower features:
• Round design.
• Only rain function.
• 1.8 Gpm
• G1/2 in. Inlet.
• Silicone square nozzles easy to clean.
• Brass construction.

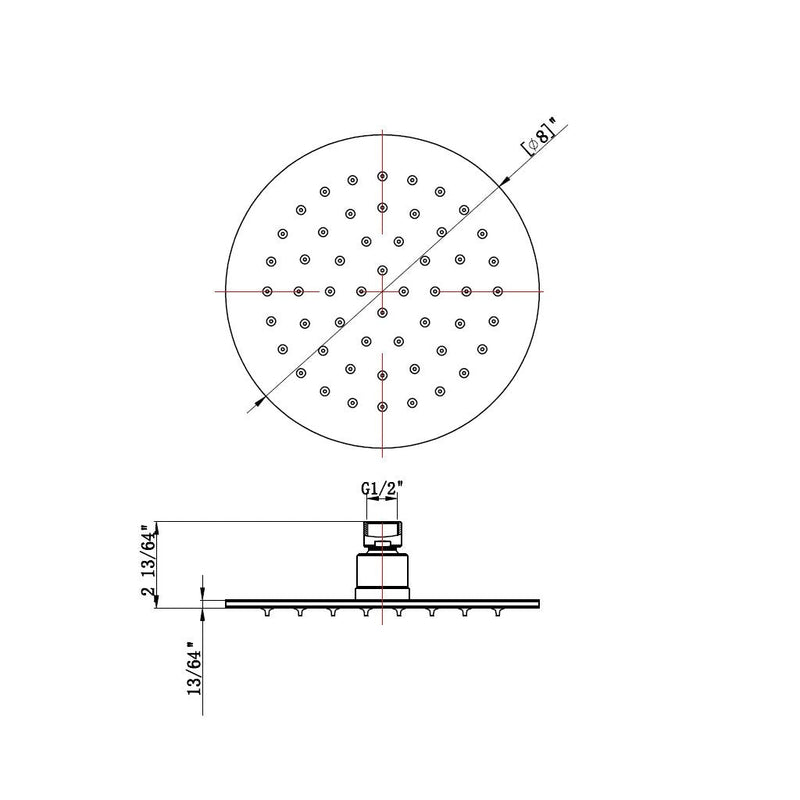

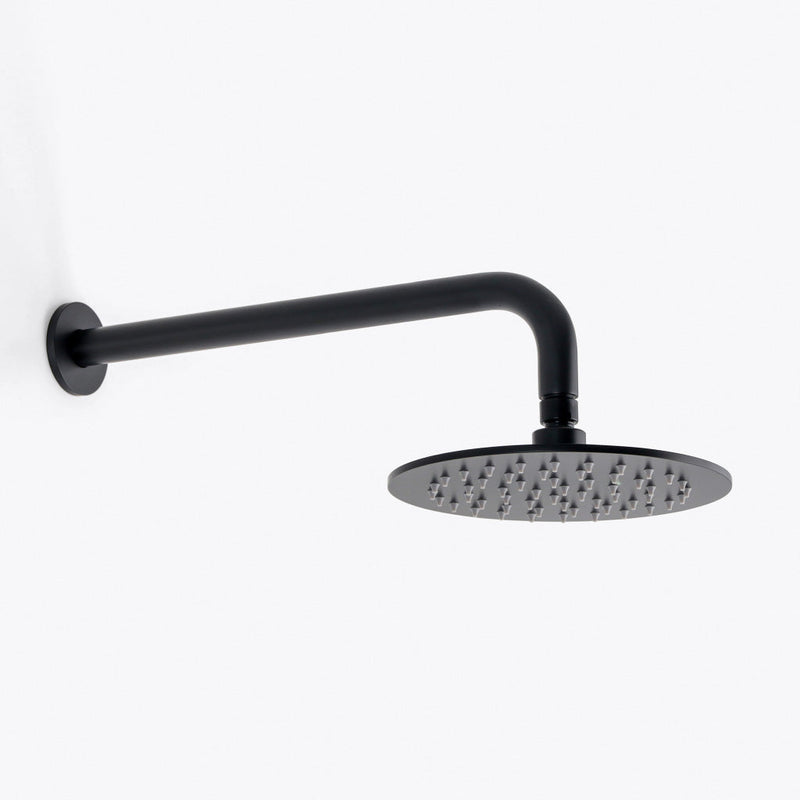

• Shower head features:
• Thin design (0.2 in. / 5 mm)
• G 1/2 in. female inlet
• Full rain spray single function
• 1.8 Gpm @ 80 PSI
• Silicone sharp nozzles easy to clean
• Made in stainless steel.

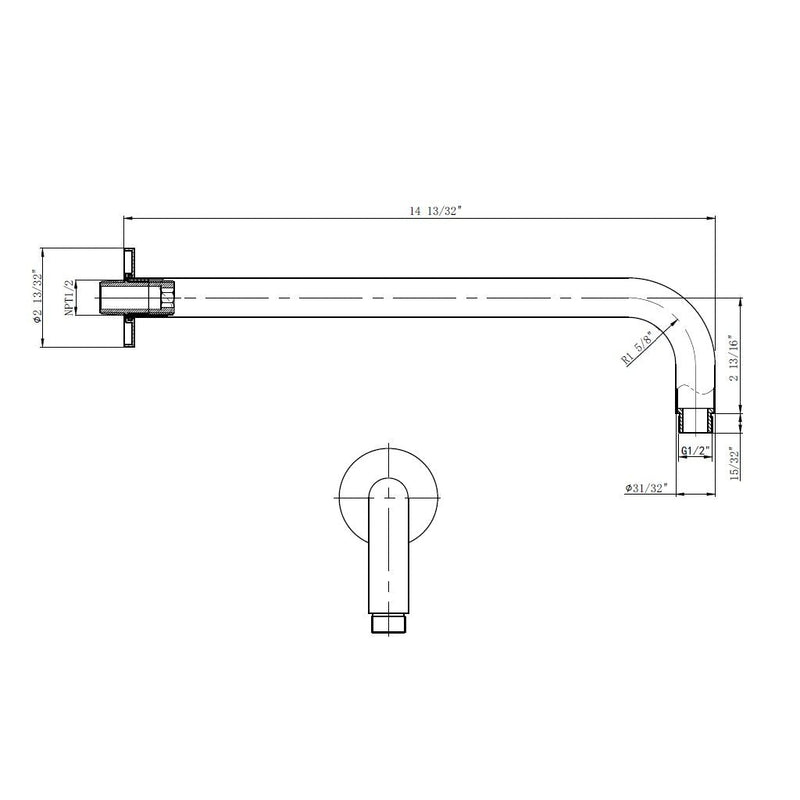

• Shower arm features:
• Wall mount.
• NPT 1/2 in. inlet . G 1/2 in. outlet
• 14" length
• Mobil scutcheon
• Full brass construction.
• Material: Brass
• Finish/Color: Matt Black
• Dimensions:
• Weight: 9.3 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• Easy Installation: Yes

Documents:

• Spec Sheets (PDF)
