Metro 2-Way Pressure Balance Trim Complete Shower Set - Ceiling Mount - 12" Brass/Polished Chrome

Original price $0.00 - Original price $0.00
Original price $0.00
$884.00
$884.00 - $884.00
Current price $884.00
SKU COF.SET.MTO.12.16.BR.PCH
[additional]

Included:

  • COF.SHM.MTO.02.00.BR.PCH Shower mixer rough-in valve with trim.
  • COF.SHH.MTO.12.02.SS.PSS Shower head 12 in. recessed installation with sharp nozzles
  • COF.HCO.MTO.02.00.BR.PCH Hose connector
  • COF.HSH.MTO.01.00.BR.PCH Hand shower round with silicone nozzles
  • COF.HHO.SCO.05.00.SS.PCH Hose 5 feet.
  • JUM.HCL.LUK.27.00.BR.PCH Sliding bar
  • Qty: 1

Documents:

  • Spec Sheets (PDF) Download
  • [/additional]

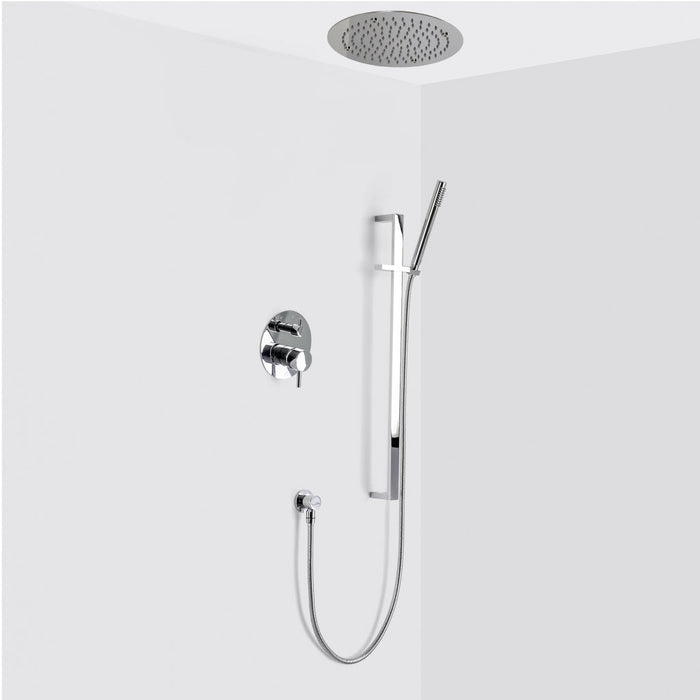

    Pressure balanced 2-Way shower system of our family Metro. With this shower set you have everything you need to install your shower. It is a two-way system with outlet for recessed shower head and outlet for sliding bar with hand shower. Composed of two-way pressure balanced mixer, hose connector, sliding bar, hand shower, hose and 12 in. recessed shower head.

    Features:

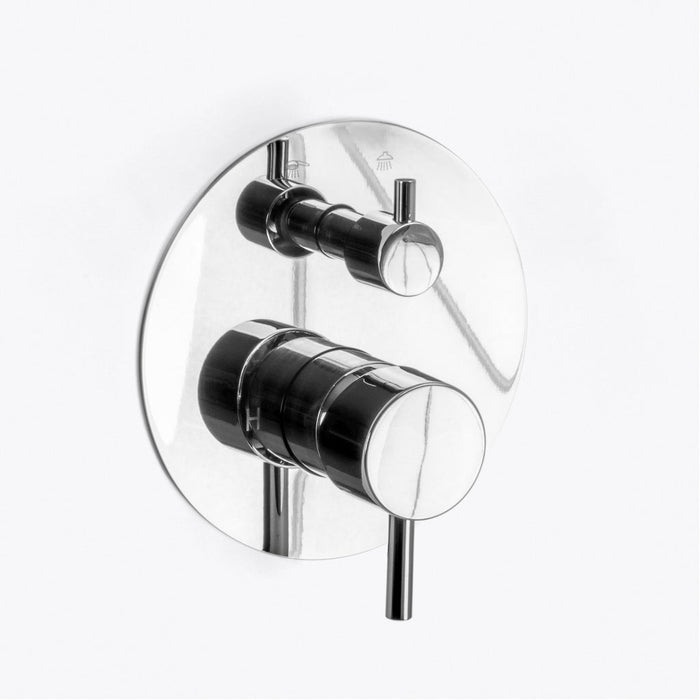

      Mixer features:
    • 2-Way Pressure balanced rough-in valve with two way diverter
    • Shut-off valves and integrated anti-return valves
    • Pressure balanced cartridge adjust inlet pressure fluctuations.
    • Pressure balanced cartridge prevent scalding, cold water supply stops when cold water pressure fail
    • Maximum outlet temperature and volume can be limited
    • Working pressure:
    • Min: 20 PSI (1.5 bar)
    • Max: 125 PSI (8 bar)
    • Recommended: 45 PSI (3 bar)
    • Hot water inlet max. temperature: 180 °F (80 °C)
    • Water inlet threads: 1/2 NPT male
    • Full brass
    • Trim features:
    • Round design
    • Full brass

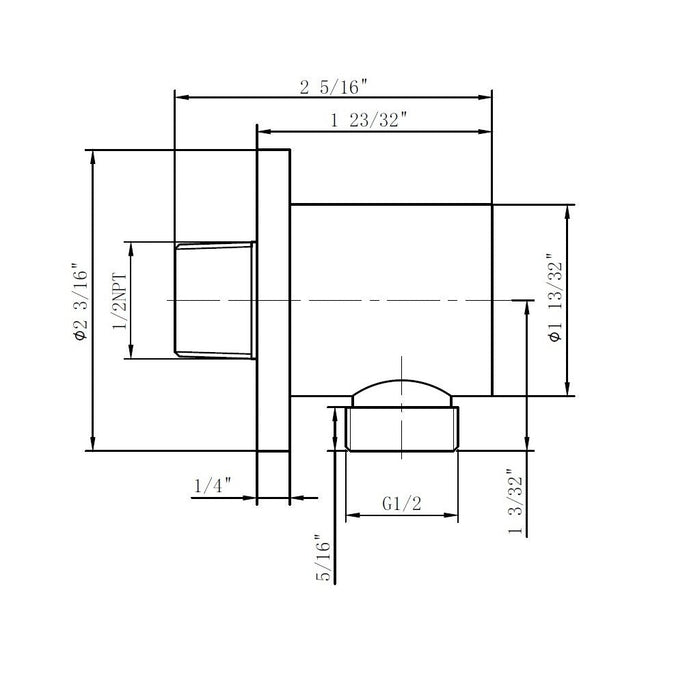

    • Connector features:
    • Round design.
    • NPT 1/2 in. inlet. G 1/2 in. outlet
    • Hose features:
    • Length 60 in.
    • Stainless Steel construction.
    • NPT 1/2 in. inlet

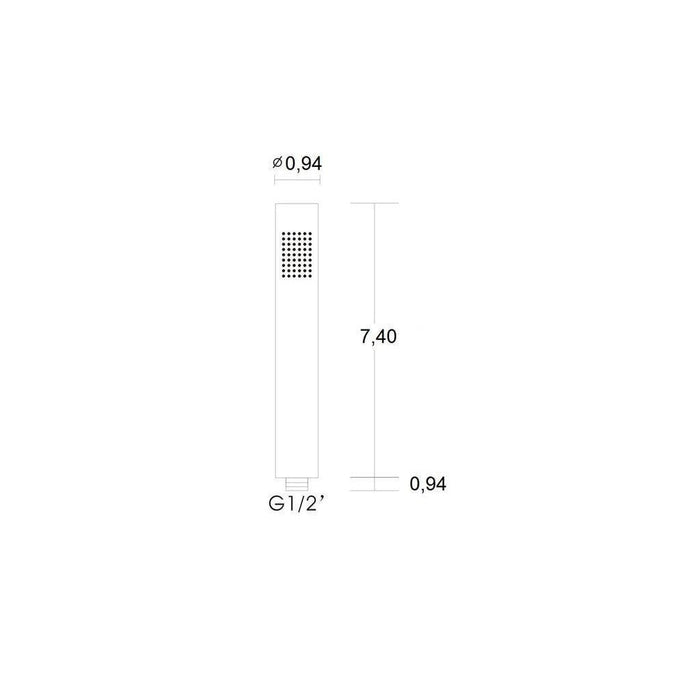

    • Hand shower features:
    • Round design.
    • Only rain function.
    • 1.8 Gpm
    • G1/2 in. Inlet.
    • Silicone square nozzles easy to clean.
    • Brass construction.

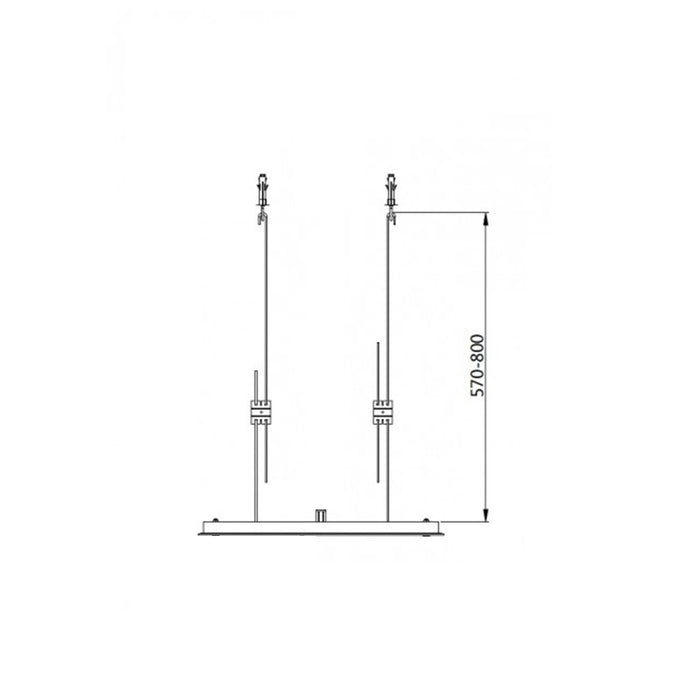

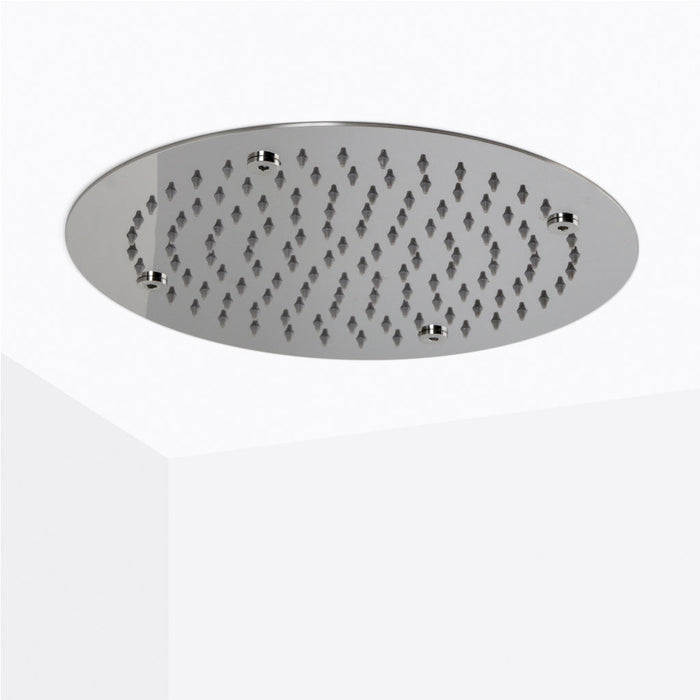

    • Shower head features:
    • Recessed installation.
    • Thin design (0.1 in. / 2 mm)
    • G 1/2 in. female inlet
    • Full rain spray single function
    • 2.5 Gpm @ 80 PSI
    • Silicone sharp nozzles easy to clean
    • Made in stainless steel.

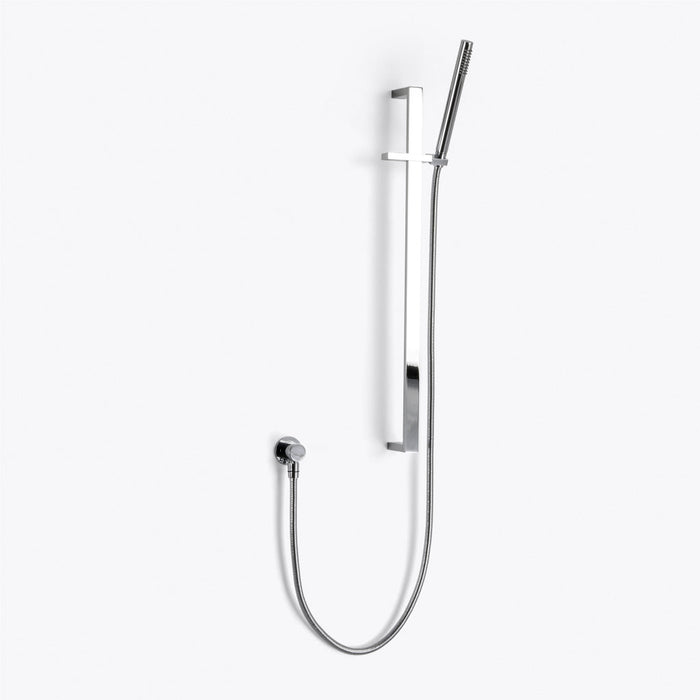

    • Sliding bar features:
    • Made in full brass
    • Support for hand shower adjustable in height and inclination.
    • You need to complete this product with hose, connector and hand shower
    • Material: Brass
    • Material: Brass
    • Finish/Color: Polished Chrome
    • Dimensions:
    • Weight: 14.7 lb.
    • Rustproof: Yes
    • Warranty (Years): 1
    • Material Warranty: Yes
    • Finish Warranty: Yes
    • UPC Certified: Yes
    • Easy Installation: Yes
