$330.00
Availability: 3 In Stock
SKU: COF.SET.MTO.08.00.BR.PCH
Shower Set



Pressure balanced 1-Way shower system of our family Metro. With this shower set you have everything you need to install your shower. It is a one-way system with outlet for shower head. This system is available in different finishes. Composed of one-way pressure balanced mixer, shower arm for wall installation and shower head of slim design.



Features:

    Mixer features:

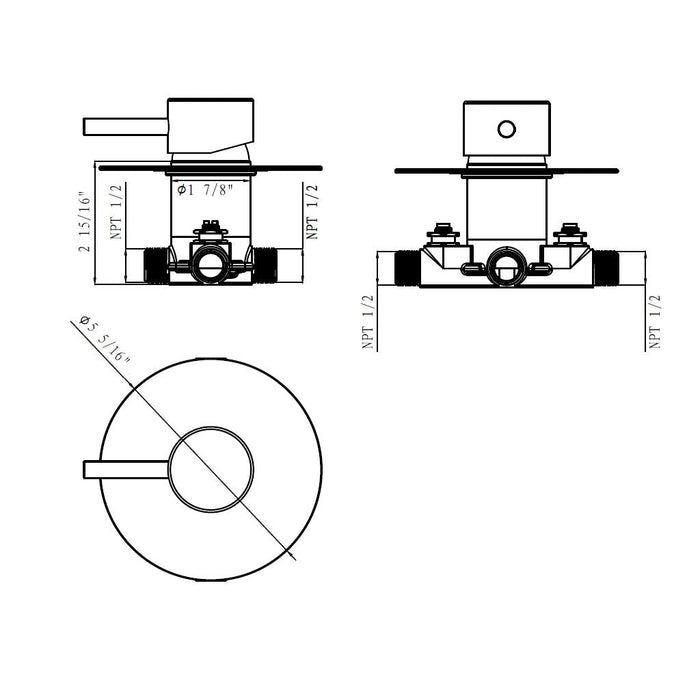

  • 1-Way Pressure balanced rough-in valve
  • Shut-off valves and integrated anti-return valves
  • Pressure balanced cartridge adjust inlet pressure fluctuations.
  • Pressure balanced cartridge prevent scalding, cold water supply stops when cold water pressure fail
  • Maximum outlet temperature and volume can be limited
  • Working pressure:
  • Min: 20 PSI (1.5 bar)
  • Max: 125 PSI (8 bar)
  • Recommended: 45 PSI (3 bar)
  • Hot water inlet max. temperature: 180 °F (80 °C)
  • Water inlet threads: 1/2 NPT male
  • Full brass
  • Trim features:
  • Round design
  • Full brass

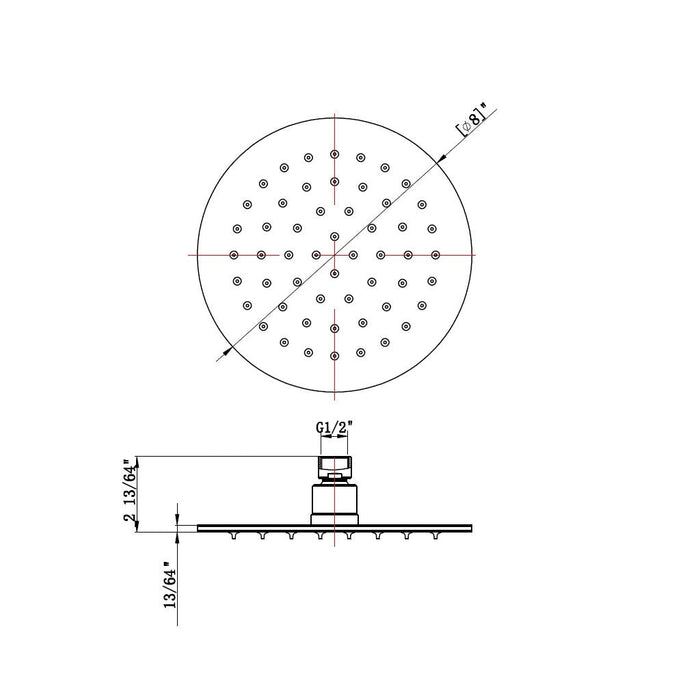

  • Shower head features:
  • Thin design (0.2 in. / 5 mm)
  • G 1/2 in. female inlet
  • Full rain spray single function
  • 1.8 Gpm @ 80 PSI
  • Silicone sharp nozzles easy to clean
  • Made in stainless steel.

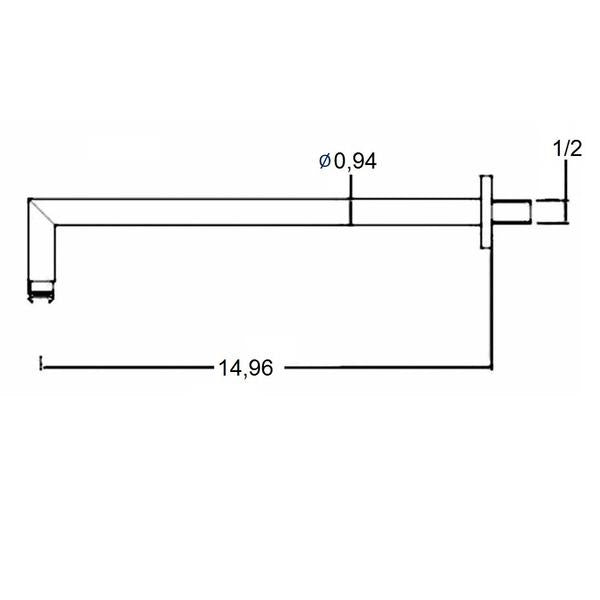

  • Shower arm features:
  • Wall mount.
  • NPT 1/2 in. inlet . G 1/2 in. outlet
  • 14" length
  • Mobil scutcheon
  • Full brass construction.
  • Material: Brass
  • Finish/Color: Polished Chrome
  • Dimensions:
  • Weight: 6.4 lb.
  • Rustproof: Yes
  • Warranty (Years): 1
  • Material Warranty: Yes
  • Finish Warranty: Yes
  • UPC Certified: Yes
  • Easy Installation: Yes

Included:

  • COF.SHM.MTO.01.00.BR.PCH Shower mixer rough-in valve with trim.
  • JUM.SHA.SMA.15.00.BR.PCH Shower arm wall mount 15 in. length.
  • COF.SHH.DEV.08.00.SS.PSS Shower head 8 in. slim design with sharp nozzles
  • Qty: 1

Documents:

  • Spec Sheets (PDF)  Download
  •

    Metro 1-Way Only Head Included Complete Shower Set - Wall Mount - 8" Brass/Polished Chrome
