Metro 2-Way Pressure Balance Trim Complete Shower Set - Wall Mount - 12" Brass/Polished Chrome

SKU COF.SET.MTO.12.05.BR.PCH
Original price $0.00 - Original price $0.00
Original price $0.00
$861.00
$861.00 - $861.00
Current price $861.00

[additional]

Included:

  • COF.SHM.MTO.02.00.BR.PCH Shower mixer rough-in valve with trim.
  • COF.SHA.MTO.14.00.BR.PCH Shower arm wall mount 14 in. length
  • COF.SHH.MTO.12.00.SS.PSS Shower head 12 in. design with sharp nozzles
  • COF.HCO.MTO.02.00.BR.PCH Hose connector
  • COF.HSH.MTO.01.00.BR.PCH Hand shower round with silicone nozzles
  • COF.HHO.SCO.05.00.SS.PCH Hose 5 feet.
  • JUM.HCL.LUK.27.00.BR.PCH Sliding bar
  • Qty: 1

Documents:

  • Spec Sheets (PDF) Download

[/additional]

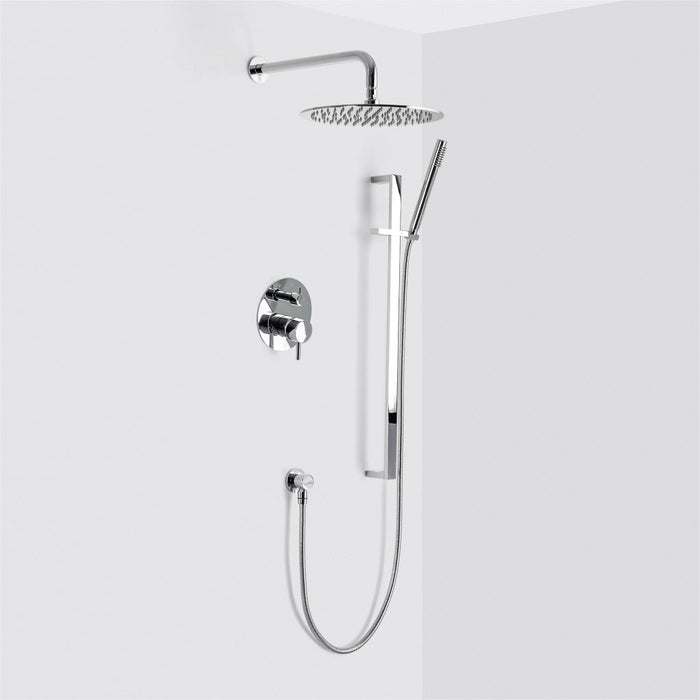

Pressure balanced 2-Way shower system of our family Metro. With this shower set you have everything you need to install your shower. It is a two-way system with outlet for shower head and outlet for sliding bar with hand shower. This system is available in different finishes. Composed of two-way pressure balanced mixer, hose connector, sliding bar, hand shower, hose, shower arm for wall installation and 12 in. shower head.

Features:

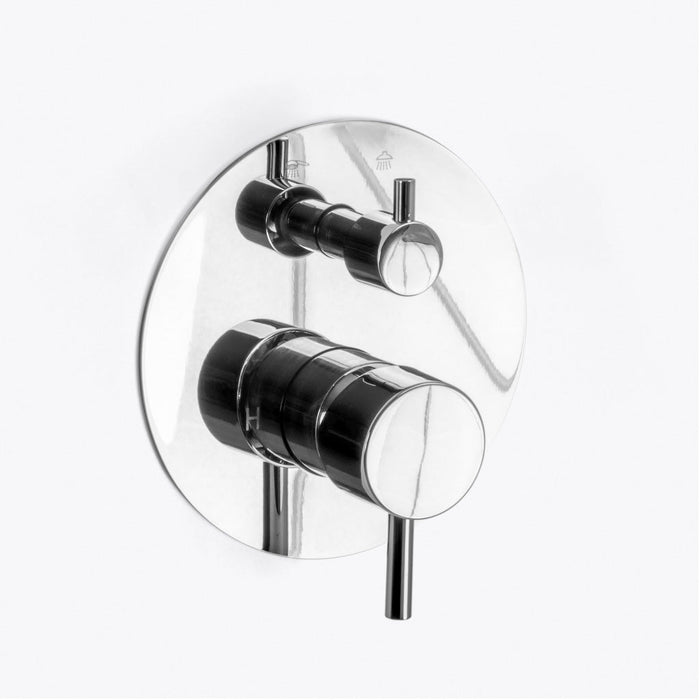

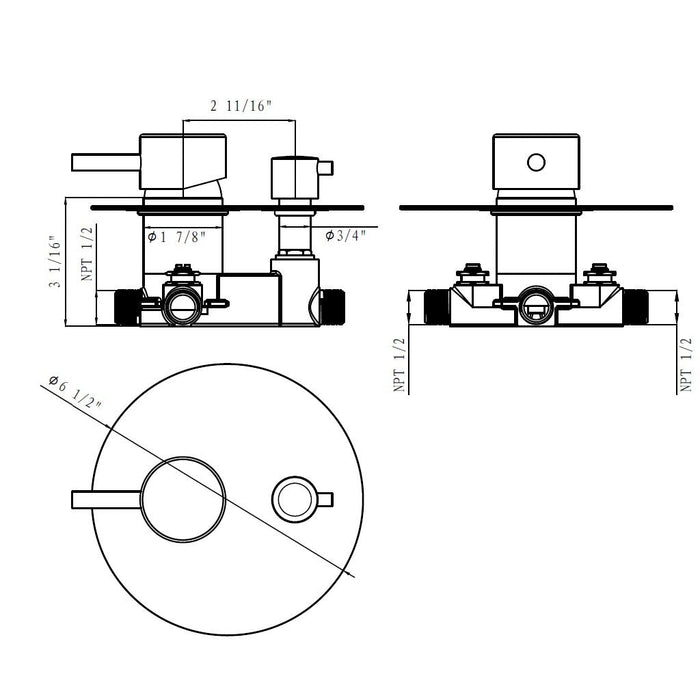

  • Mixer features:
  • 2-Way Pressure balanced rough-in valve with two way diverter
  • Shut-off valves and integrated anti-return valves
  • Pressure balanced cartridge adjust inlet pressure fluctuations.
  • Pressure balanced cartridge prevent scalding, cold water supply stops when cold water pressure fail
  • Maximum outlet temperature and volume can be limited
  • Working pressure:
  • Min: 20 PSI (1.5 bar)
  • Max: 125 PSI (8 bar)
  • Recommended: 45 PSI (3 bar)
  • Hot water inlet max. temperature: 180 °F (80 °C)
  • Water inlet threads: 1/2 NPT male
  • Full brass
  • Trim features:
  • Round design
  • Full brass
  • Connector features:
  • Round design.
  • NPT 1/2 in. inlet. G 1/2 in. outlet
  • Hose features:
  • Length 60 in.
  • Stainless Steel construction.
  • NPT 1/2 in. inlet
  • Hand shower features:
  • Round design.
  • Only rain function.
  • 1.8 Gpm
  • G1/2 in. Inlet.
  • Silicone square nozzles easy to clean.
  • Brass construction.

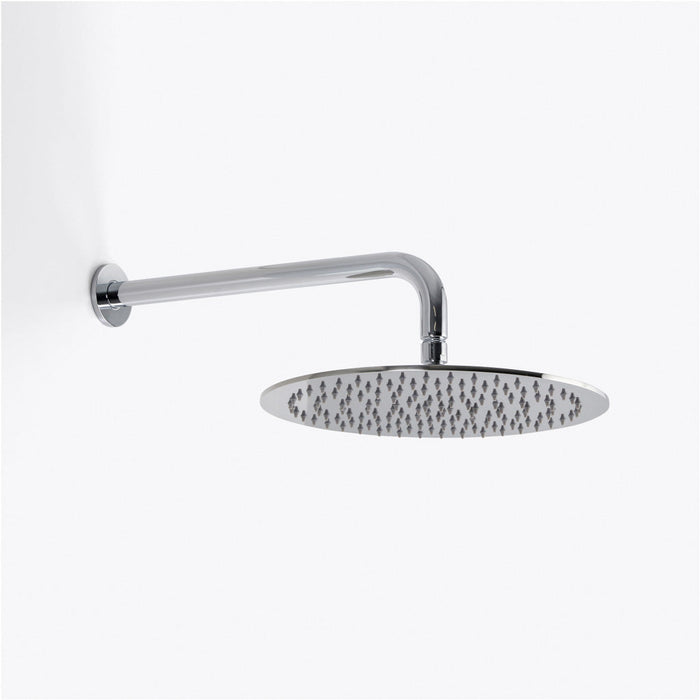

  • Shower head features:
  • Thin design (0.2 in. / 5 mm)
  • G 1/2 in. female inlet
  • Full rain spray single function
  • 1.8 Gpm @ 80 PSI
  • Silicone sharp nozzles easy to clean
  • Made in stainless steel.

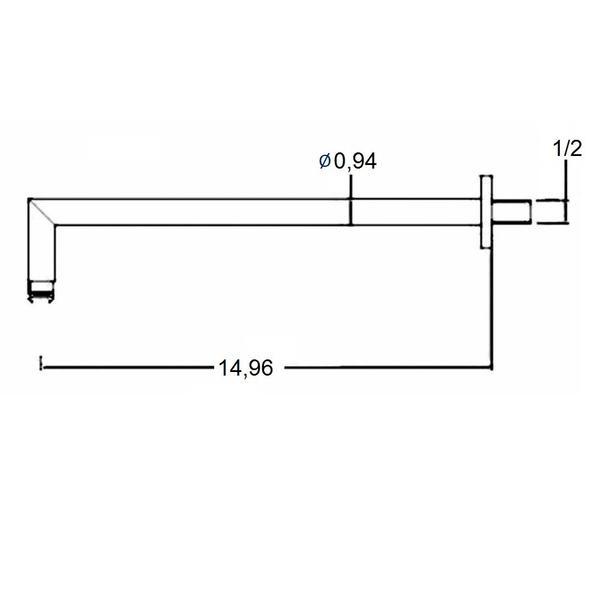

  • Shower arm features:
  • Wall mount.
  • NPT 1/2 in. inlet . G 1/2 in. outlet
  • 15" length
  • Mobil scutcheon
  • Full brass construction.

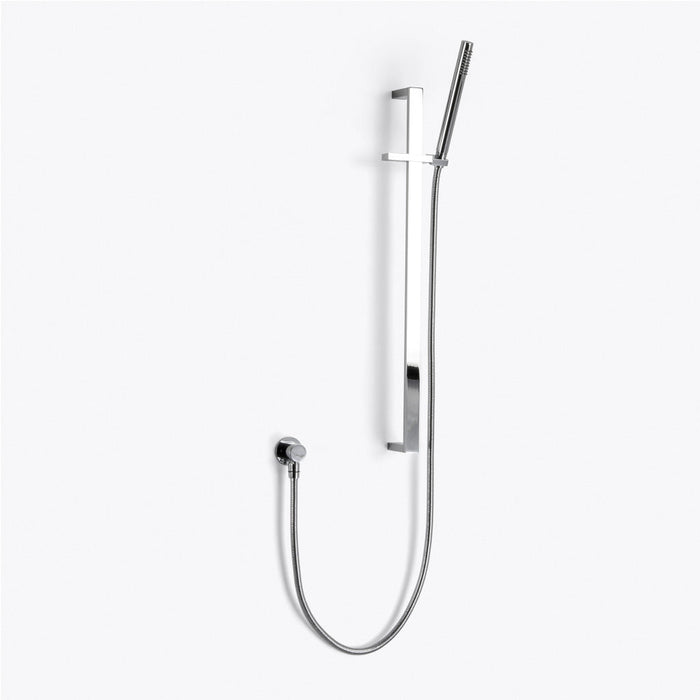

  • Sliding bar features:
  • Made in full brass
  • Support for hand shower adjustable in height and inclination.
  • You need to complete this product with hose, connector and hand shower
  • Material: Brass
  • Material: Brass
  • Finish/Color: Polished Chrome
  • Dimensions:
  • Weight: 13.1 lb.
  • Rustproof: Yes
  • Warranty (Years): 1
  • Material Warranty: Yes
  • Finish Warranty: Yes
  • UPC Certified: Yes
  • Easy Installation: Yes
