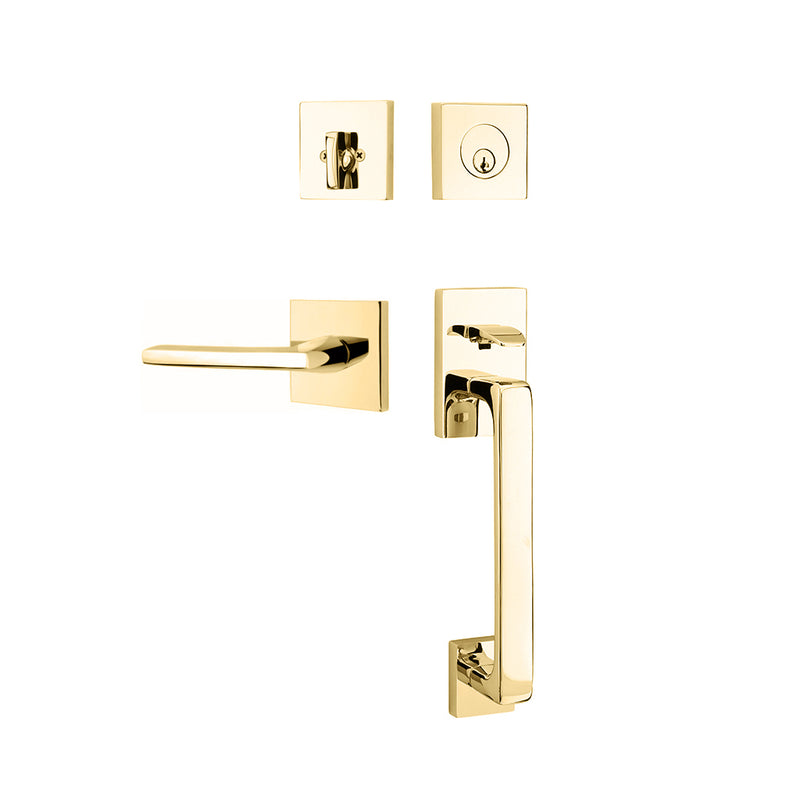

These tubular door entry sets are constructed of solid forged brass, feature a Schlage C Keyway and a modern attractive design . Excellent way to secure your home with a sense of style.With a modern style, this key entry set has an exterior key lock and an interior with manual lock.Also available with key lock inside or dummy function.

Features:

• Handing required if Lever used on inside.
• Available in Single Cylinder, Double Cylinder, or Dummy function.
• Standard 2-1/8 in. bore door prep.
• Schlage C Keyway as standard.
• Standard door thickness of 1-3/4 in. Specify if thicker.
• Standard backset 2 3/8". Specify 2 3/4" backset if required.
• Exterior Handleset Overall Length: 16-3/8 in.
• Exterior Upper Plate: 2-1/2 in. x 4 in. x 1/2 in. thick
• Exterior Lower Plate: 1-3/4 in. x 2 in. x 1/2 in. thick
• Exterior Grip: 1 in. thick
• Clearance between Door & Grip: 1-7/8 in.
• Exterior Projection: 2-1/2 in.
• Exterior/Interior Deadbolt Trim: 2-1/2 in. x 2-1/2 in. x 5/8 in. thick
• Interior Trim Plate: 2-1/2 in. x 2-1/2 in. x 1/2 in. thick
• Sold as complete set. Includes Knob or Lever, Latch and Strike Plate.
• Dummy set for doors where only pull is required. No latch or strike.
• Available in: Satin Brass, oil Rubbed Bronze, Polished Nickel, Satin Nickel, Matt Black, Polished Nickel and Unlacquered Brass
• Material: Brass
• Finish/Color: Unlacquered Brass
• Dimensions: W: 2,5" * H: 17,5" * D: 1,75"
• Weight: 06 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• Easy Installation: Yes

Included:

• Interior trim deadbolt
• Exterior trim beadbolt
• Interior trim lever plate
• Exterior trim handle plate
• 2 keys
• Installation hardware
• Qty: 1

Documents:

Installation Instruction (.PDF)
