Devon 3-Way Shower Set With Hand Shower Set - Wall Mount - 8" Brass/Matt Black

Devon 3-Way Tub Spout, Hand Shower And Head Included Complete Shower Set - Wall Mount - 8" Brass/Matt Black

Devon 3-Way Shower Set With Hand Shower Set - Wall Mount - 8" Brass/Matt Black

Name: Devon 3-Way Shower Set With Hand Shower Set - Wall Mount - 8" Brass/Matt Black
Brand: Bathonomy
SKU: COF.SET.DEV.08.04.BR.MBL
Price: 1564.0 USD
Availability: InStock

SKU COF.SET.DEV.08.04.BR.MBL

by Bathonomy

$0.00 - $0.00

$0.00

$1,564.00

$1,564.00 - $1,564.00

$1,564.00

Quantity

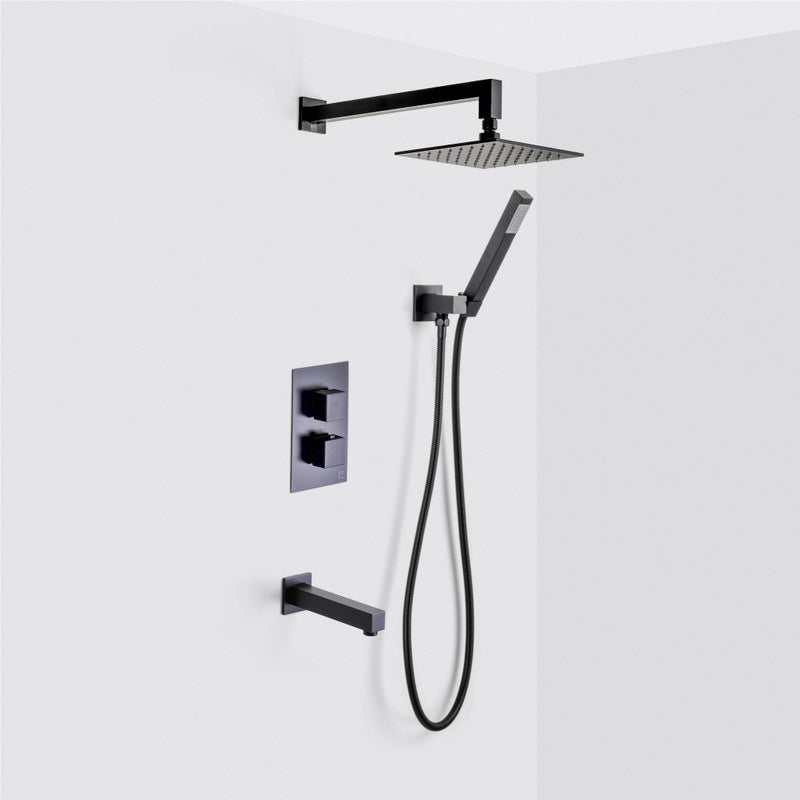

Pressure balanced 3-Way shower system of our family Devon. With this shower set you have everything you need to install your shower. It is a three-way system with outlet for shower head, outlet for hand shower and outlet for tub spout diverter. Composed of three-way thermostatic mixer, tub spout, hand shower, hose, hand shower shower connector with holder, shower arm for wall installation and shower head.

Features

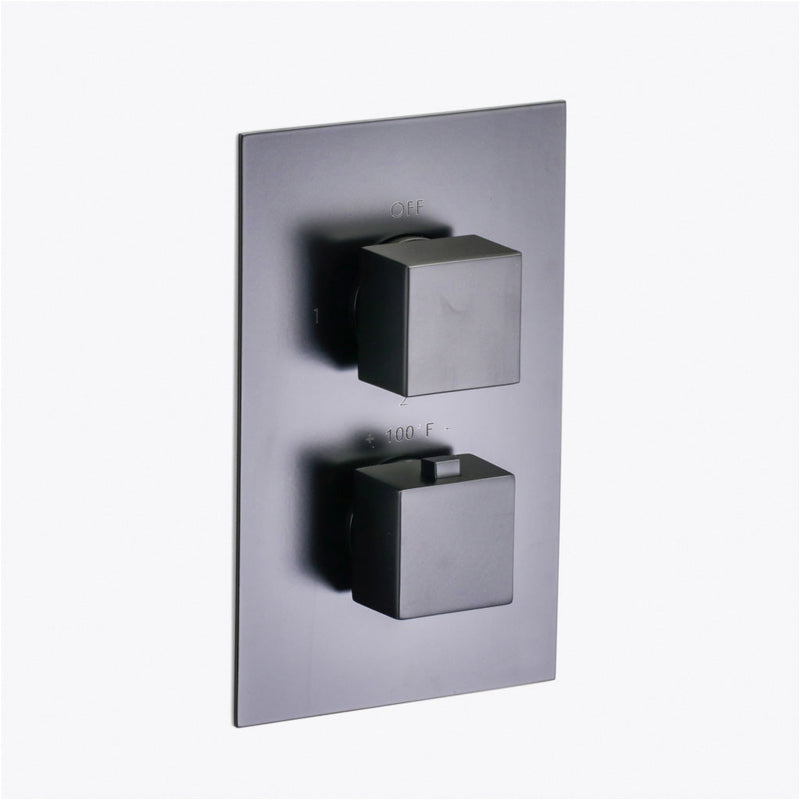

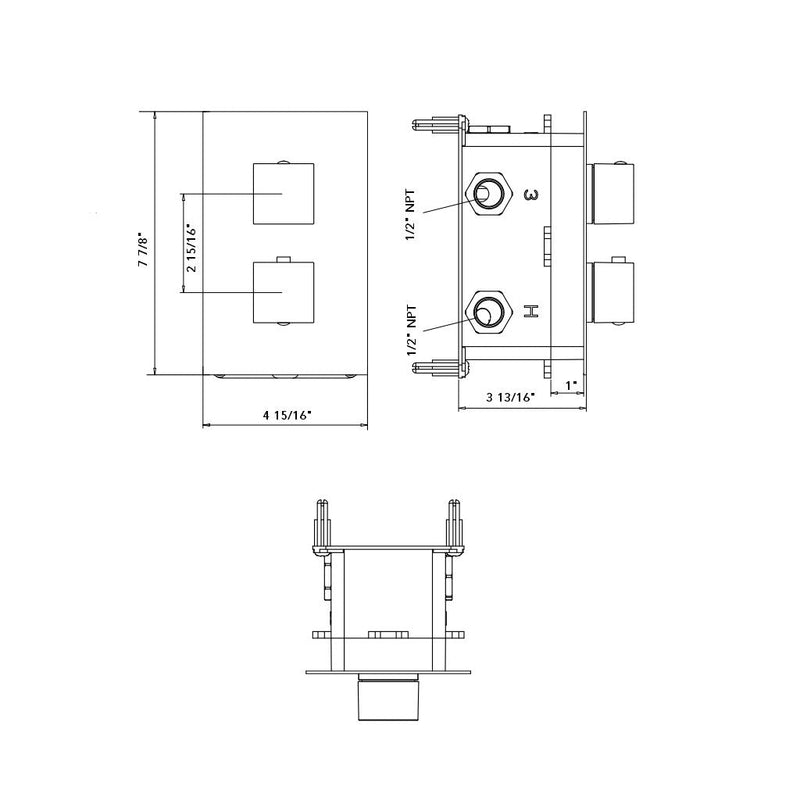

Mixer features:
3-Way Thermostatic rough-in valve
Shut-off valves and integrated anti-return valves
Sedal ceramic thermostatic cartridge.
Thermostatic cartridge prevent scalding, cold water supply stops when cold water pressure fail
Flow rate 3.4 GPM
Working pressure:
Min: 20 PSI (1.5 bar)
Max: 125 PSI (8 bar)
Recommended: 45 PSI (3 bar)
Hot water inlet max. temperature: 180 °F (80 °C)
Water inlet threads: 1/2 NPT female
Full brass
Trim features:
Square design
Full brass

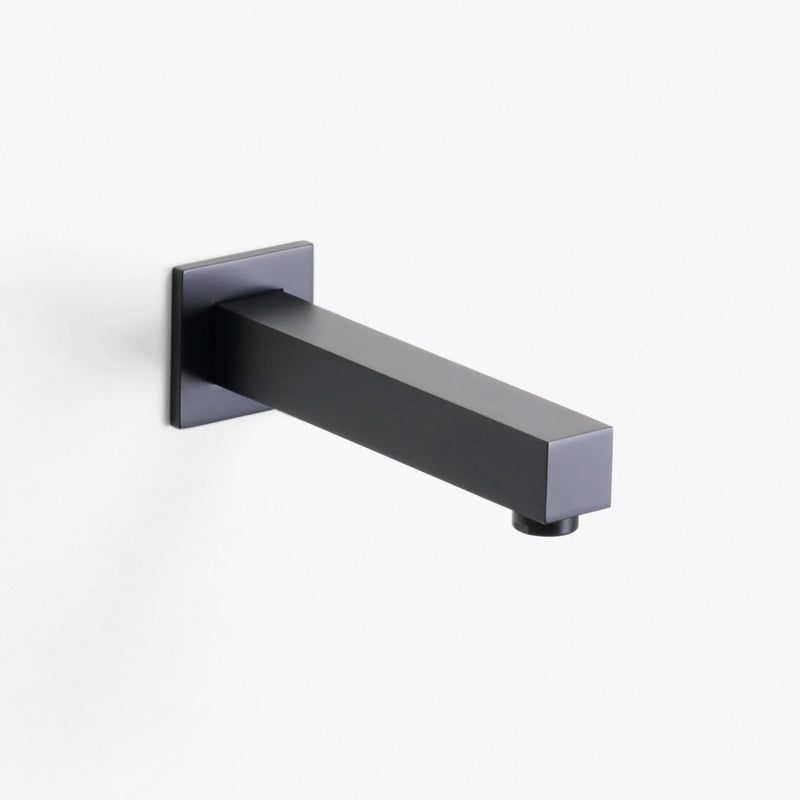

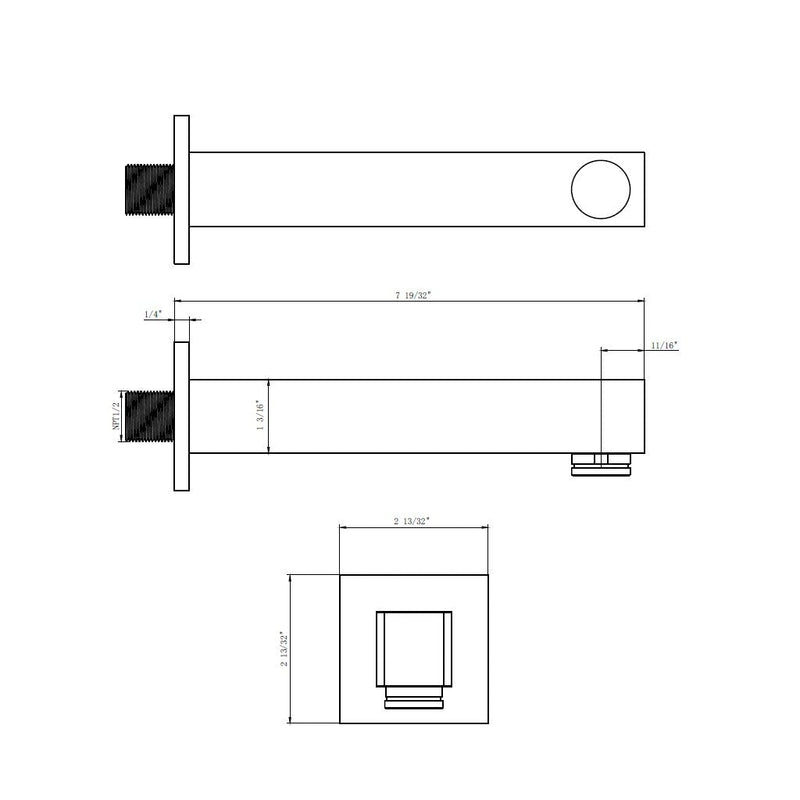

Tub spout features:
NPT 1/2 in. male inlet.
Full brass construction.
Adjustable scutcheon

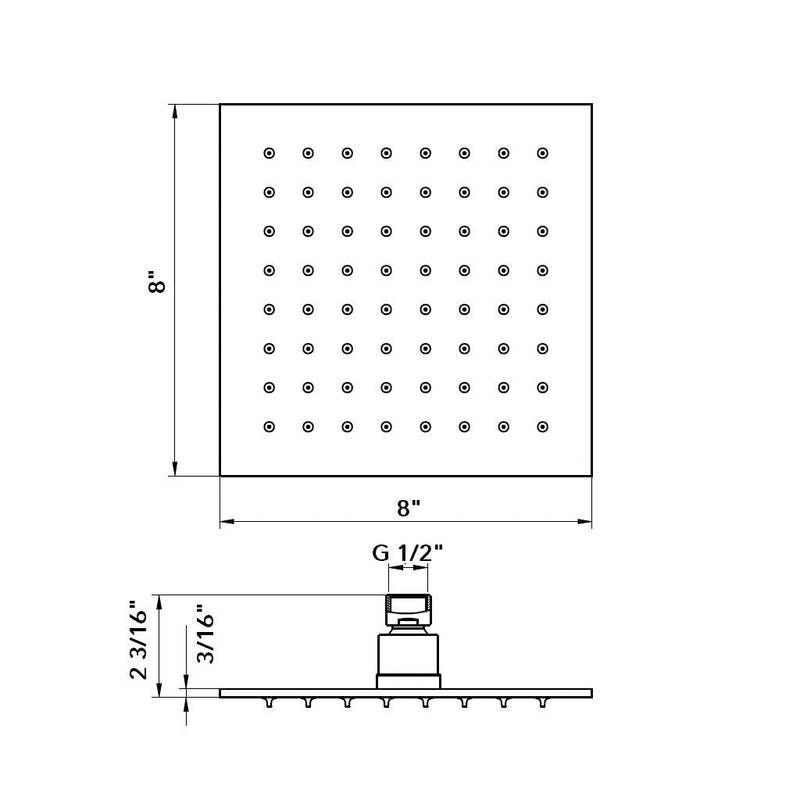

Shower head features:
Thin design (0.2 in. / 5 mm)
G 1/2 in. female inlet
Full rain spray single function
1.8 Gpm @ 80 PSI
Silicone sharp nozzles easy to clean
Made in stainless steel.

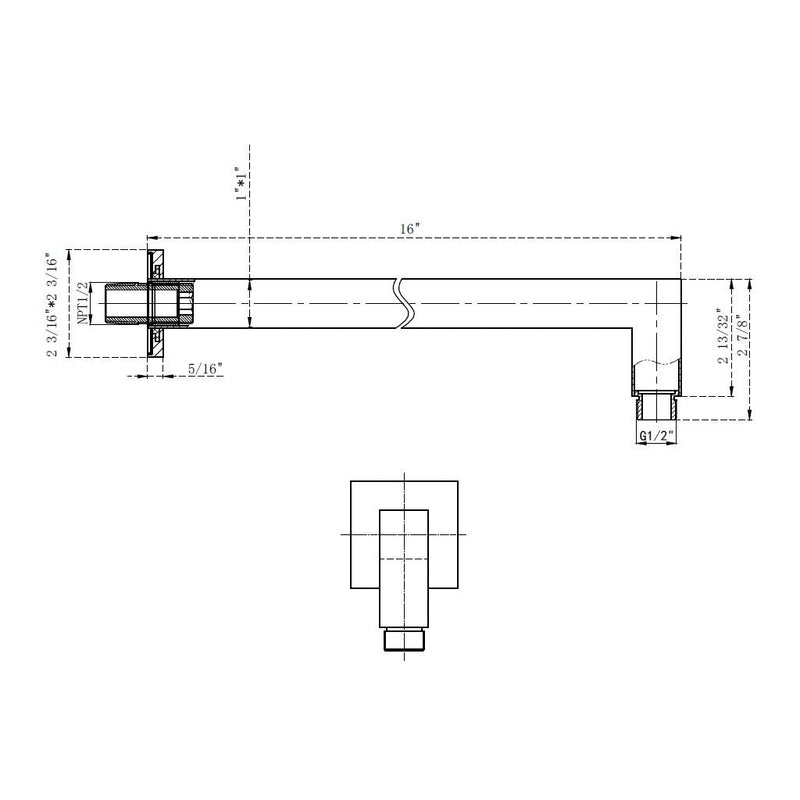

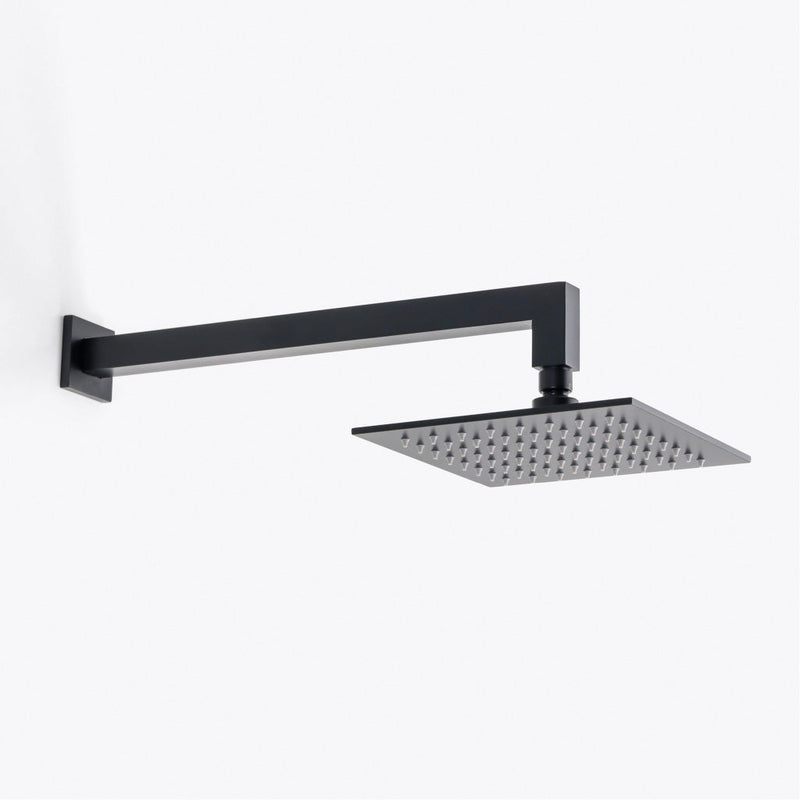

Shower arm features:
Wall mount.
NPT 1/2 in. inlet . G 1/2 in. outlet
16" length
Fixed scutcheon
Full brass construction.

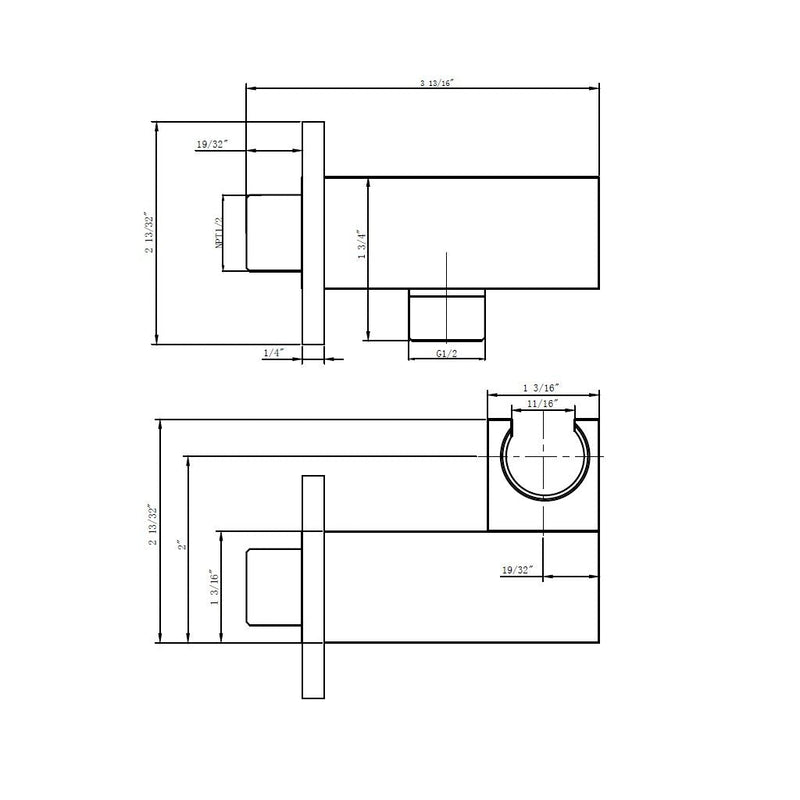

Connector features:
Rectangular design with holder for hand shower.
NPT 1/2 in. inlet. G 1/2 in. outlet
Hose features:
Length 60 in.
Stainless Steel construction.
NPT 1/2 in. inlet

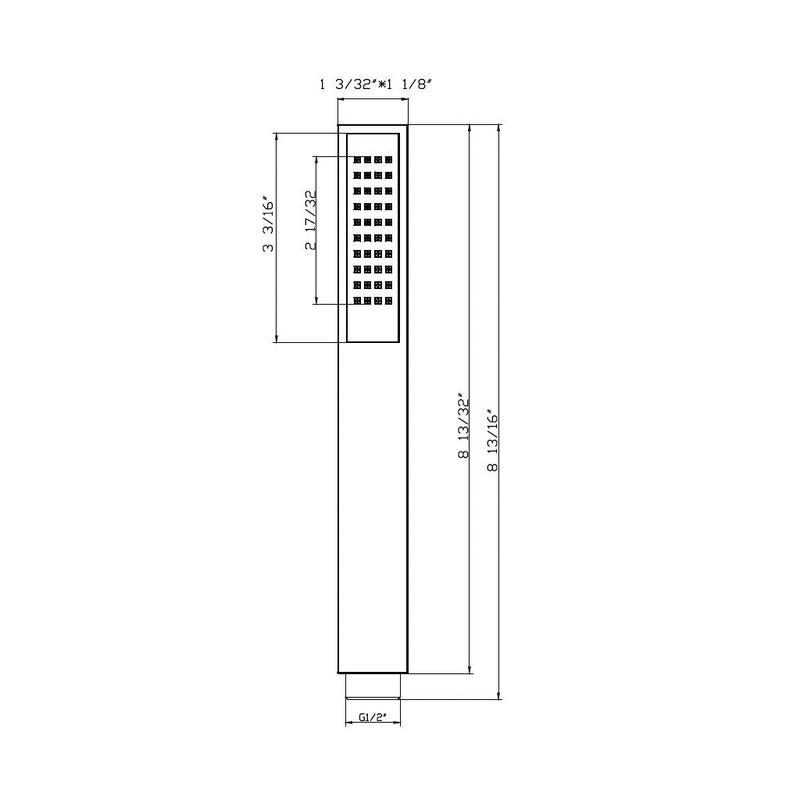

Hand shower features:
Square design.
Only rain function.
1.8 Gpm
G1/2 in. Inlet.
Silicone square nozzles easy to clean.
ABS construction.
Material: Brass
Finish/Color: Matt Black
Dimensions:
Weight: 16.8 lb.
Rustproof: Yes
Warranty (Years): 1
Material Warranty: Yes
Finish Warranty: Yes
UPC Certified: Yes
Easy Installation: Yes
