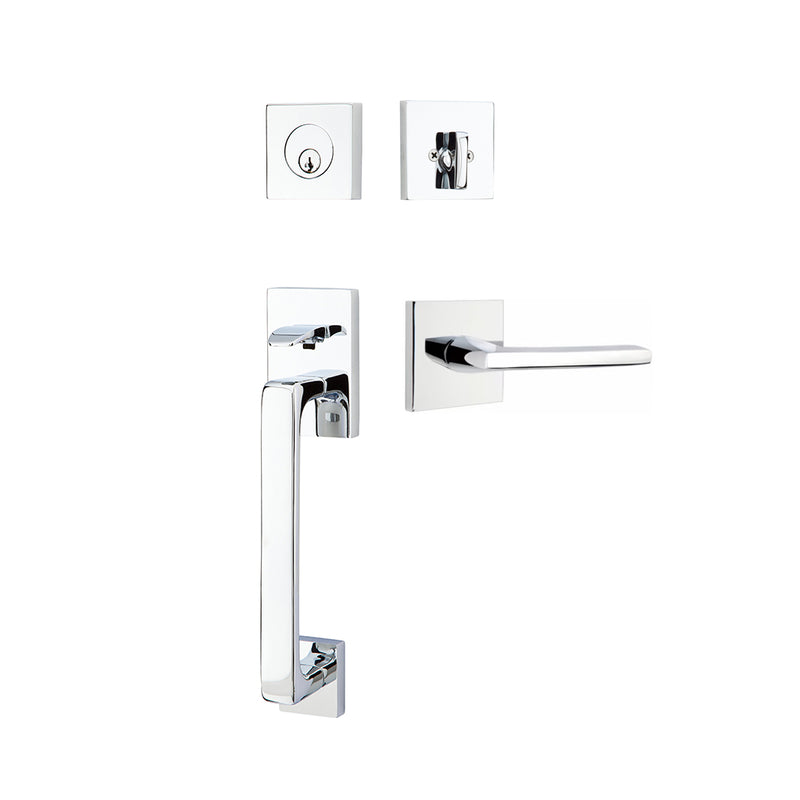

Baden Tubular Single Cylinder Helios Lever Right Door Entrance Set - Door Mount - 17" Brass/Polished Chrome

Included:

• Interior trim deadbolt
• Exterior trim beadbolt
• Interior trim lever plate
• Exterior trim handle plate
• 2 keys
• Installation hardware
• Qty: 1

Documents:

Installation Instruction (.PDF)

[/additional]

These tubular door entry sets are constructed of solid forged brass, feature a Schlage C Keyway and a modern attractive design . Excellent way to secure your home with a sense of style.With a modern style, this key entry set has an exterior key lock and an interior with manual lock.Also available with key lock inside or dummy function.Available in different finishes and functions.Also available the version with Motorized Smart Lock connected via Wi-Fi to your smartphone (only for single cylinder function)

Features:

• Handing required if Lever used on inside.
• Available in Single Cylinder, Double Cylinder, or Dummy function.
• Standard 2-1/8 in. bore door prep.
• Schlage C Keyway as standard.
• Standard door thickness of 1-3/4 in. Specify if thicker.
• Standard backset 2 3/8". Specify 2 3/4" backset if required.
• Exterior Handleset Overall Length: 16-3/8 in.
• Exterior Upper Plate: 2-1/2 in. x 4 in. x 1/2 in. thick
• Exterior Lower Plate: 1-3/4 in. x 2 in. x 1/2 in. thick
• Exterior Grip: 1 in. thick
• Clearance between Door & Grip: 1-7/8 in.
• Exterior Projection: 2-1/2 in.
• Exterior/Interior Deadbolt Trim: 2-1/2 in. x 2-1/2 in. x 5/8 in. thick
• Interior Trim Plate: 2-1/2 in. x 2-1/2 in. x 1/2 in. thick
• Sold as complete set. Includes Knob or Lever, Latch and Strike Plate.
• Dummy set for doors where only pull is required. No latch or strike.
• Available in: Satin Brass, oil Rubbed Bronze, Polished Nickel, Satin Nickel, Matt Black, Polished Nickel and Unlacquered Brass
• Material: Brass
• Finish/Color: Polished Chrome
• Dimensions: W: 2.5" * H: 17.5" * D: 1.75"
• Weight: 5.5 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• Easy Installation: Yes
