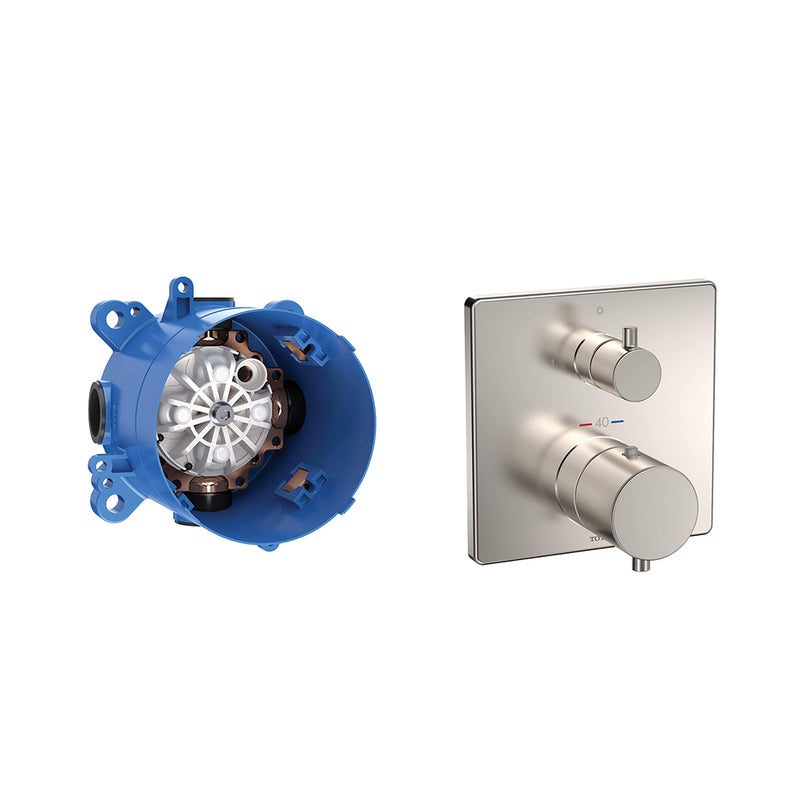

Mini Unit 2 Way Thermostatic Mixing Valve Shower Mixer - Wall Mount - 6" Brass/Brushed Nickel

[additional]

Included:

• TBN01001U Rough-in valve
• TBV02404U#BN Trim plate
• Installation accessories
• Qty: 1

Documents:

• Spec Sheet (.PDF)
• Installation Instruction (.PDF)
• Parts Diagram (.PDF)

[/additional]

We don't match the concealed system to each trim; instead we use a shared module. You can choose the functionality you need such as a thermostatic type or push button type.

Features:

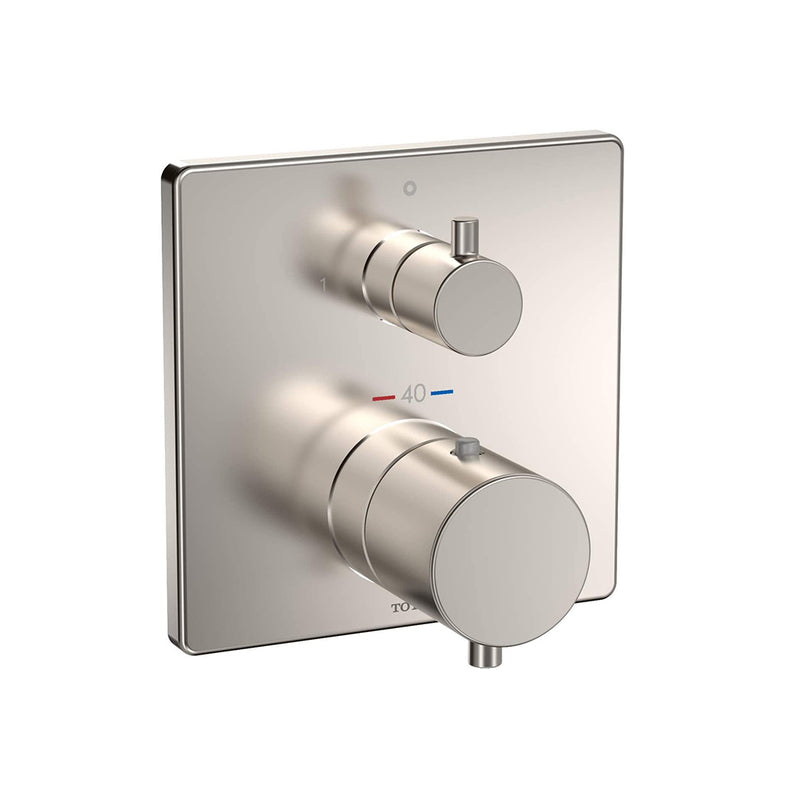

• TRIM:
• Unobtrusive twist assist for a clean aesthetic
• Meets 2018 California water efficiency CEC regulations
• Temperature control trim with anti-scald safety stop
• Thin escutcheon at approximately 5/16"
• ASSE certified Safety Thermo™ (SMA) Thermostatic Mixing Valve

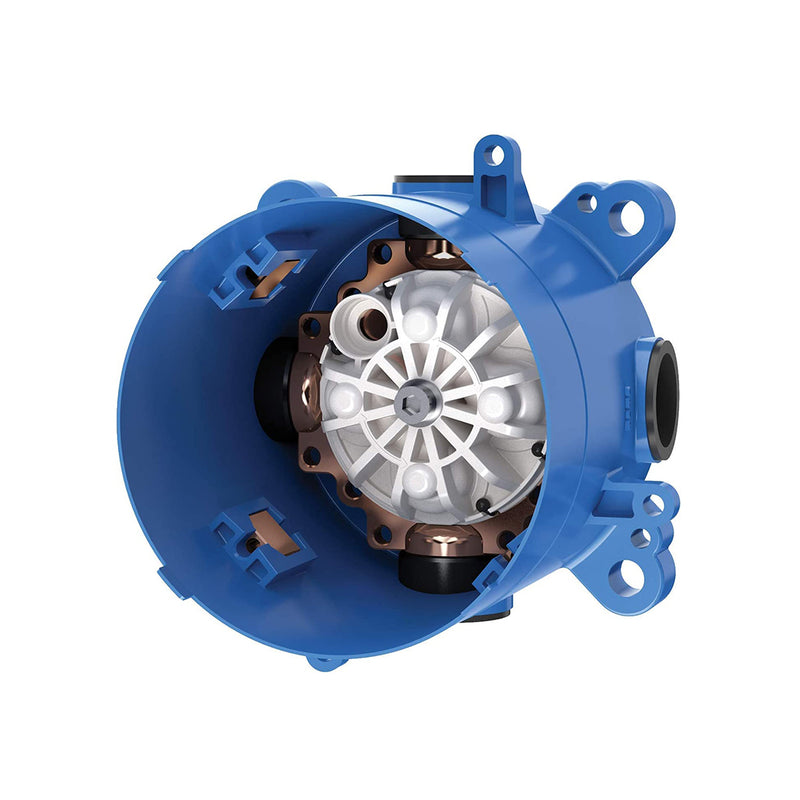

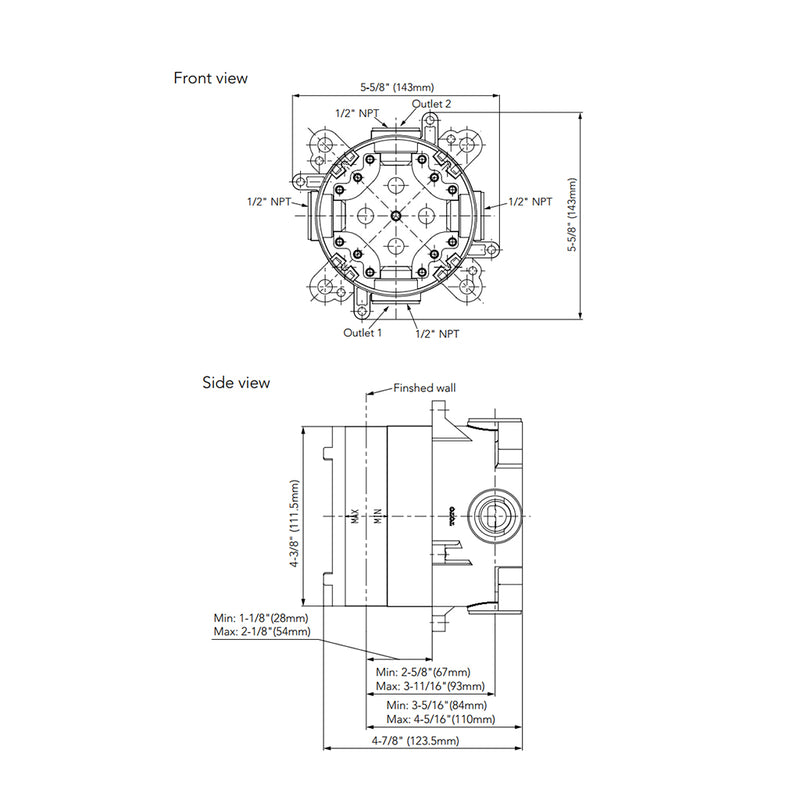

• ROUGH:
• Universal rough-in to allow easy customization of valves and trims without removing walls
• Corrosion resistant solid brass valve body
• 360 degree box design to minimize installation error
• 1" tolerance adjustable to thinner or thicker walls
• Compact body measured at 4.4" diameter and weighted 1.6 LBS for and effortless installation
• Requires volume control valve or positive shut off valve
• Material: Brass
• Finish/Color: Brushed Nickel

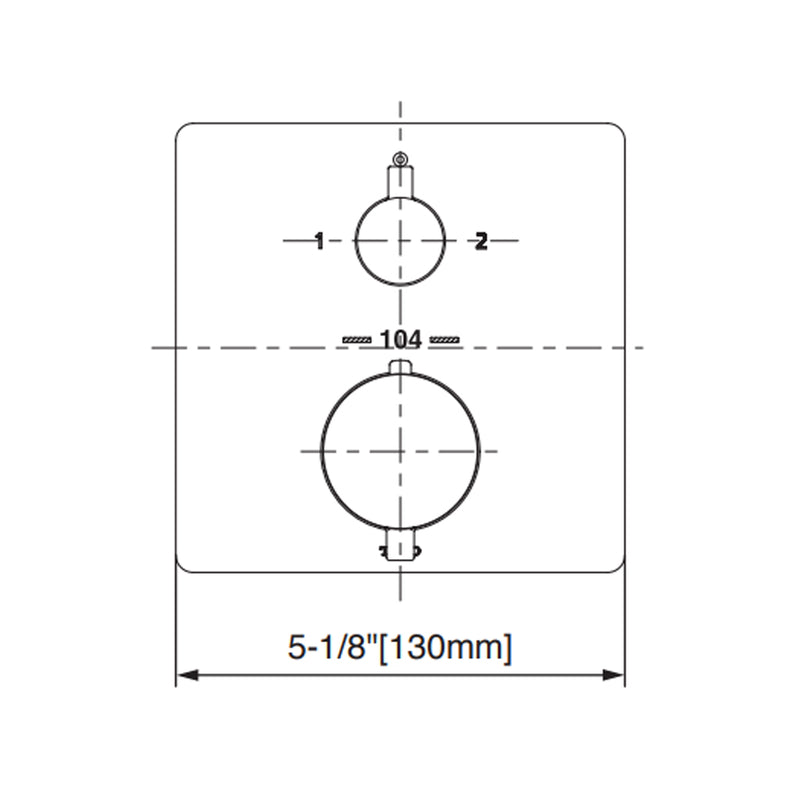

• Dimensions: W: 5,12" * H: 5,12" * D: 2,44"
• Weight: 06 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• ADA Certified: Yes
• Easy Installation: Yes
