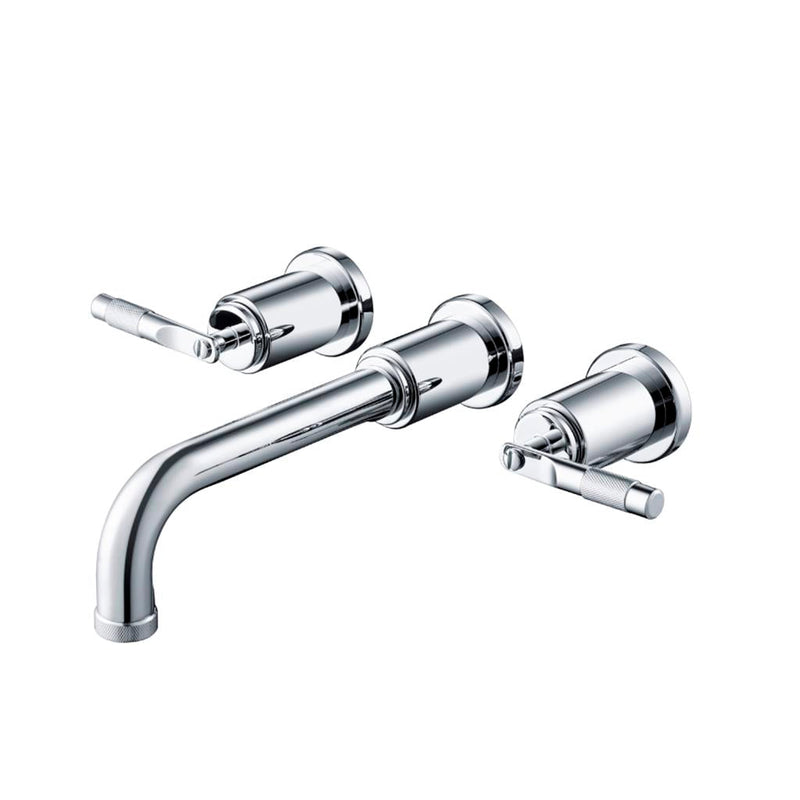

This product is a 1/2” NPT connection valve and trim combo with two volume control handles separately for hot and cold water with single mixed output.

Features:

• Three Hole Installation
• 8.0 GPM Flow Rate @ 60 PSI
• Extension Available
• 250.1950E**
• Material: Brass
• Finish/Color: Polished Chrome

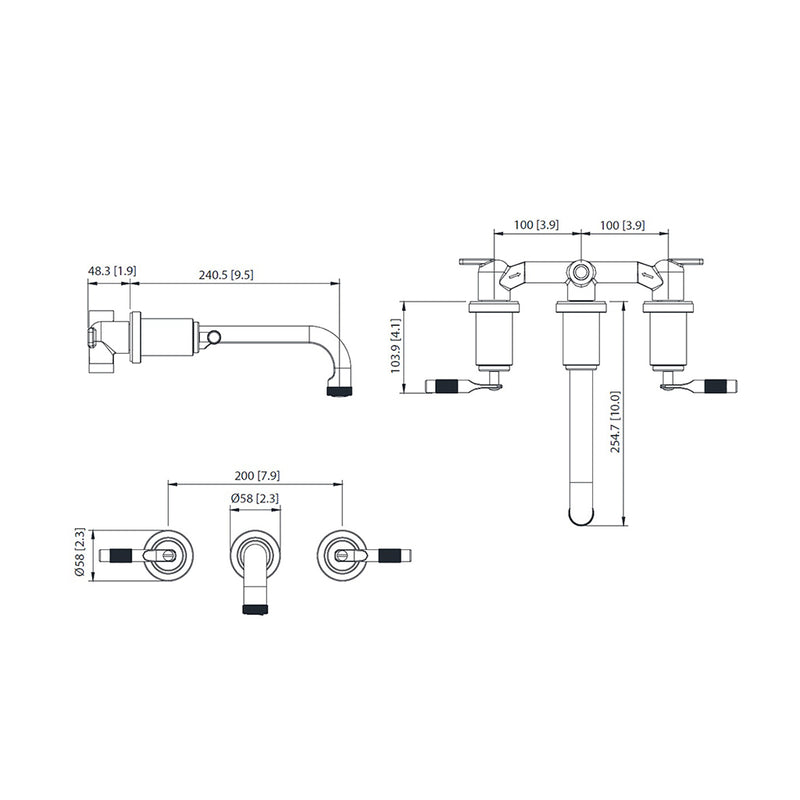

• Dimensions: W: 8,1" * H: 2,3" * D: 9,7"
• Weight: 07 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• ADA Certified: Yes
• Easy Installation: Yes

Included:

• 250.2450TCP Tub Faucet
• WLM.1900 Rough In Valve
• Qty: 1

Documents:

• Spec Sheet (.PDF)
• Installation Instruction (.PDF)
• Parts Diagram (.PDF)
