This complete shower system includes:

• ISB.SHA.S25.16.00.BR.MBL Shower Arm
• ISB.SHH.S25.08.00.BR.MBL Shower head
• ISB.SHM.S25.08.00.BR.MBL Shower Mixer
• ISB.HSH.S25.08.00.BR.MBL Hand Shower
• ISB.BHO.SCO.01.00.SS.MBL Hose
• ISB.HCL.S25.31.00.BR.MBL Sliding Bar
• Qty: 1

Documents:

• Spec Sheet (.PDF)
• Parts Diagram (.PDF)

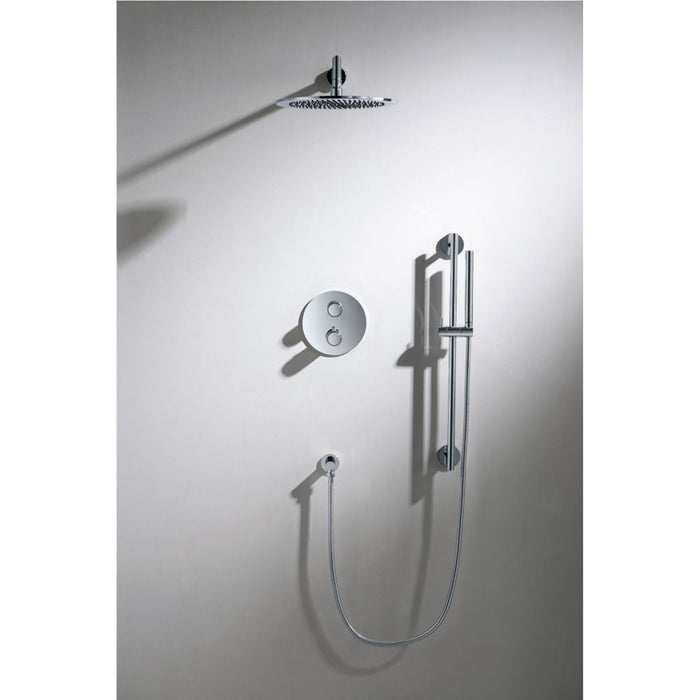

2-way shower system with balanced pressure. With this shower set you have everything you need to install your shower. It is a bidirectional system with outlet for shower head and outlet for hand shower. Composed of a balanced pressure bidirectional single-lever mixer, fitting with support for hand shower, hand shower, flexible hose, shower arm for wall installation and extra-flat design shower head.

Features:

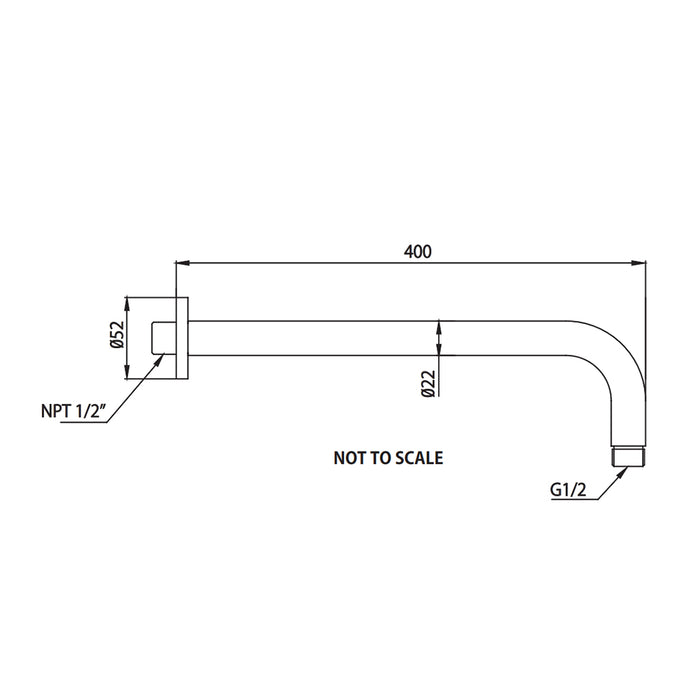

• Shower Arm Features:
• Standard 1/2″ NPT Connection
• With Sliding Flange

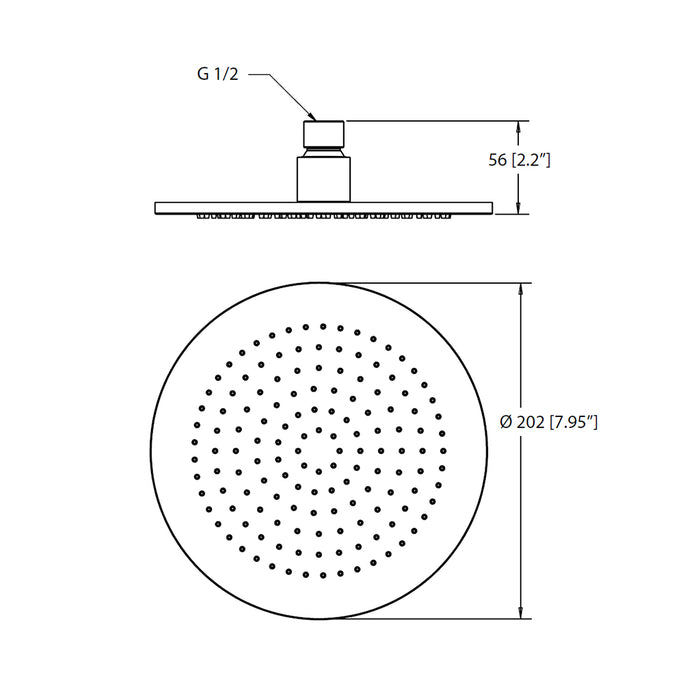

• Shower Head Features:
• Rubber nozzle for easy cleaning
• 1.8 GPM flow rate

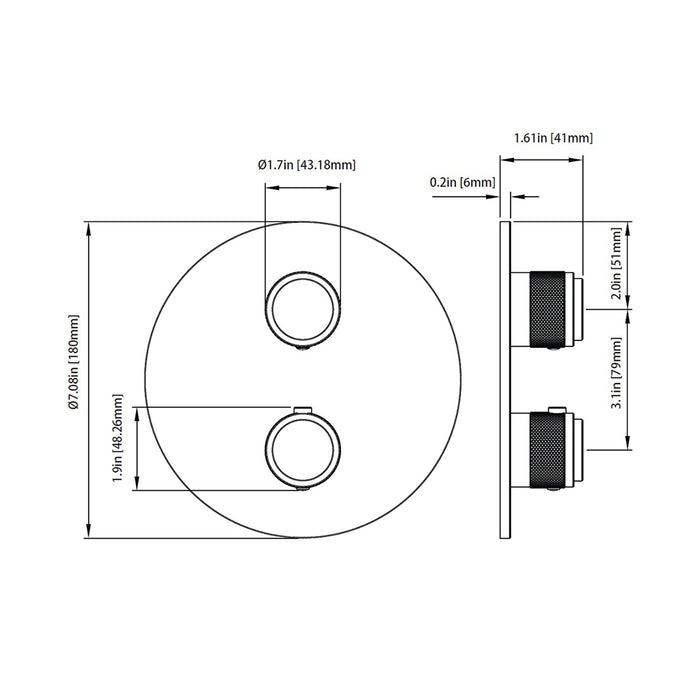

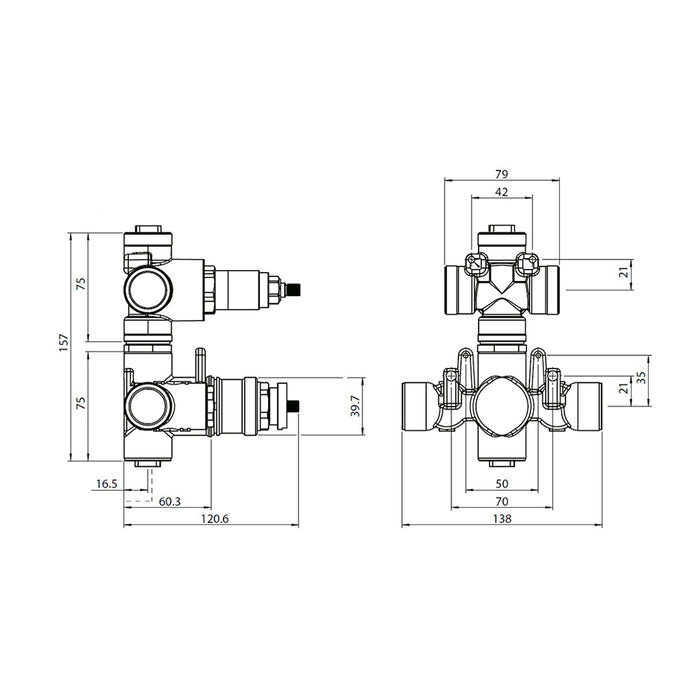

• Shower Mixer Features:
• 3/4″ NPT Female Connections
• 2-Way Diverter With Integrated Volume Control / Shut-off Feature
• Sets water temperature within 2° Celsius
• Use with shared port or non-shared port cartridges
• Turn bottom knob to control temperature.
• Turn top knob to control water flow.
• Thermostatic Valve Flow Rate
• 8.0 GPM @ 60 PSI

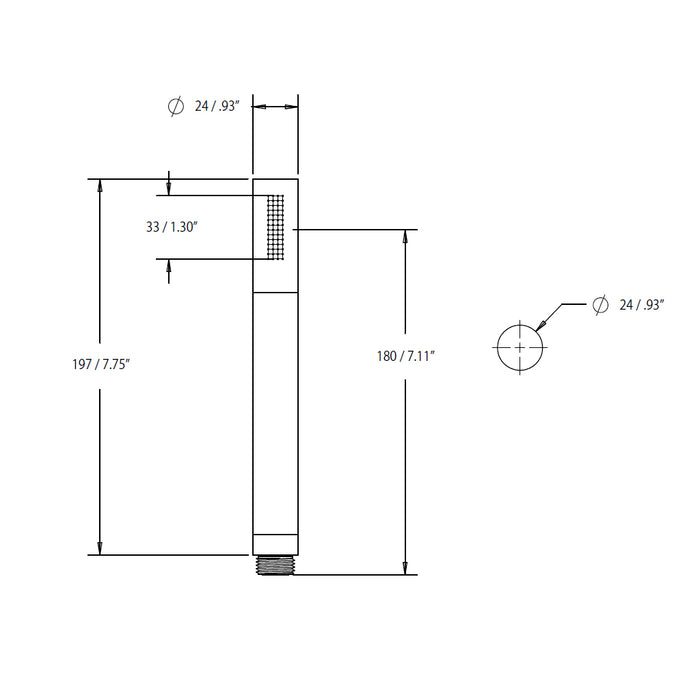

• Hand Shower Features:
• 1.8 GPM Flow Rate
• With back flow prevention check valve

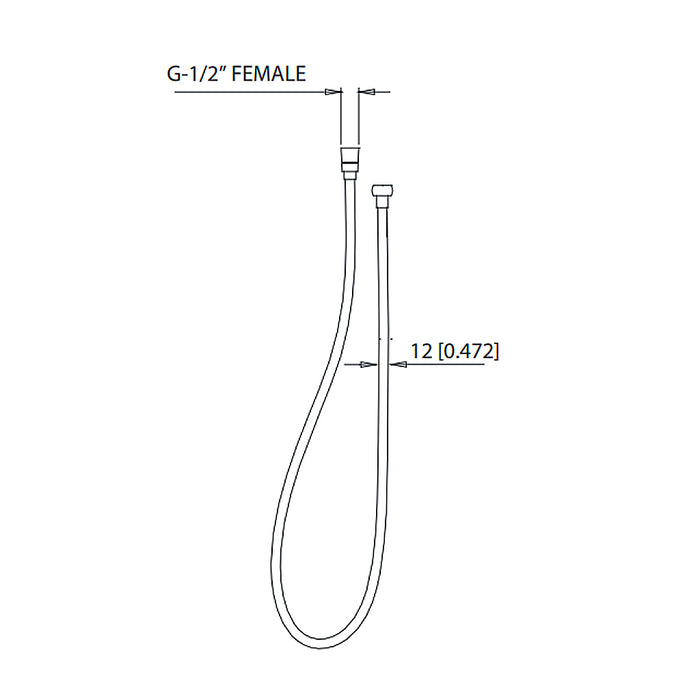

• Hose Features:
• G-1/2” connection
• 1.5m length

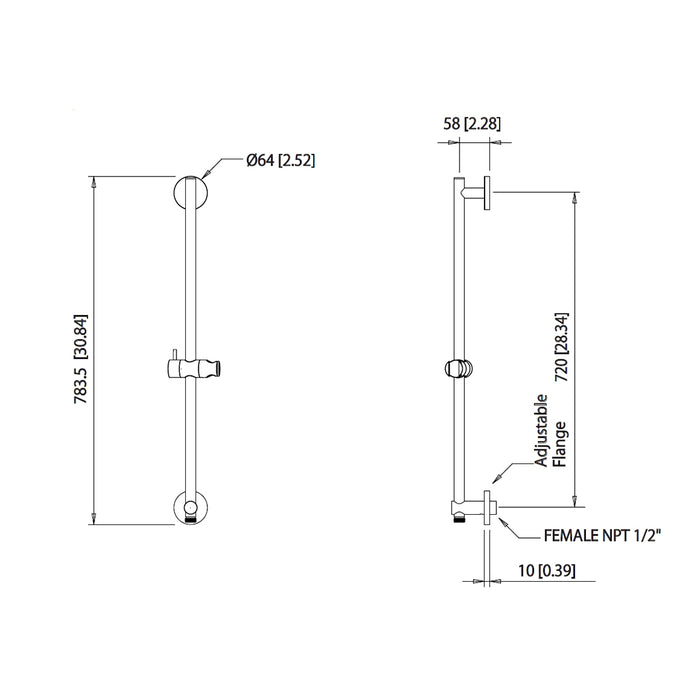

• Bar Features:
• 28.34″ center – to – center length
• With Back Flow Prevention Check Valve
• 1/2 Inch female elbow connection
• Hand held shower height is adjustable
• Easy front of wall installation
• Material: Brass
• Finish/Color: Matt Black
• Dimensions:
• Weight: 10.7 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• Easy Installation: Yes
