Spares Tub Drain Rough - Built-In - 5" PVC/Black

[additional]

Included:

• Drain.
• Tail piece.
• Reducing bushing. 2" to 1-1/2"
• Cutting template.
• Tile Guard
• Qty: 1

Documents:

• Spec Sheet (.PDF)

[/additional]

Ideal for install a freestanding tub. The kit installs above your subfloor, but underneath your cement floor or tile, so you do not need access below the fixture. The tub's tailpiece is secured into place by multiple push-fit rings that create a water-tight seal.

Features:

• Asymmetrical 18 gauge epoxy coated metal deck flange makes installation in tight spaces easier.
• Built-in snap off test cap allows for water/air/smoke testing.
• Low profile design allows for installation in 8" joist space or greater.
• PVC Adapter Kit (attaches Rough-in to PVC Bath Wastes).
• 1-1/2" diameter tailpiece with lock nut and poly washer.
• Rough-in assembly with 1-1/2" DWV PVC Tailpiece.
• Adapters for connection to 2 "or 1-1 / 2" drain pipes
• Includes cutting template and mortar/tile guard.
• Material: PVC
• Finish/Color: Black

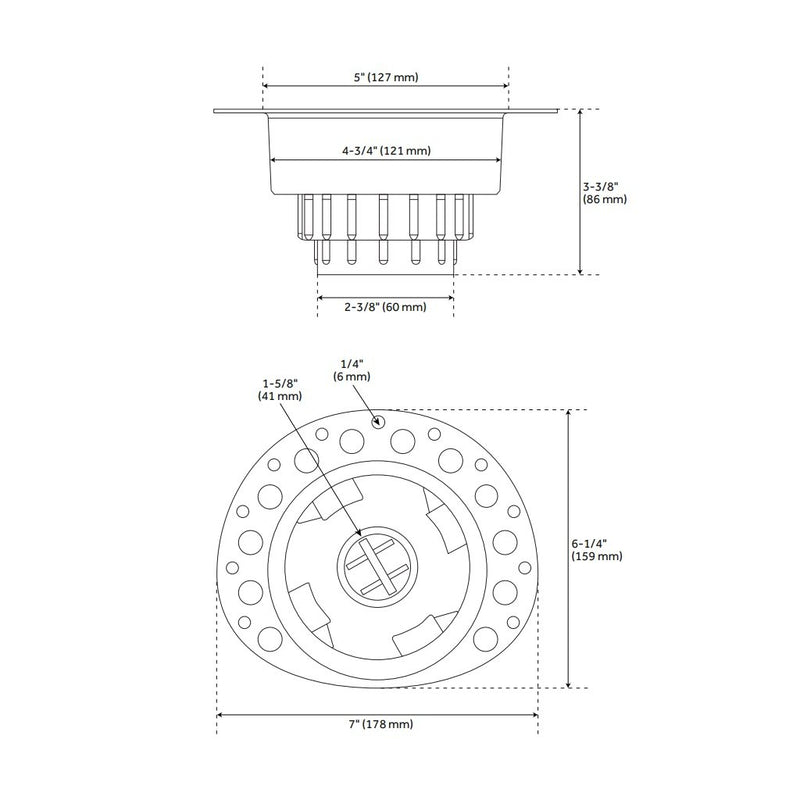

• Dimensions: W: 7" * H: 3.37" * D: 6.25" / Ø: 5"
• Weight: 11.0 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
