• Mixer features:
• 3-Way Thermostatic rough-in valve
• Shut-off valves and integrated anti-return valves
• Sedal ceramic thermostatic cartridge.
• Thermostatic cartridge prevent scalding, cold water supply stops when cold water pressure fail
• Flow rate 3.4 GPM
• Working pressure:
• Min: 20 PSI (1.5 bar)
• Max: 125 PSI (8 bar)
• Recommended: 45 PSI (3 bar)
• Hot water inlet max. temperature: 180 °F (80 °C)
• Water inlet threads: 1/2 NPT female
• Full brass

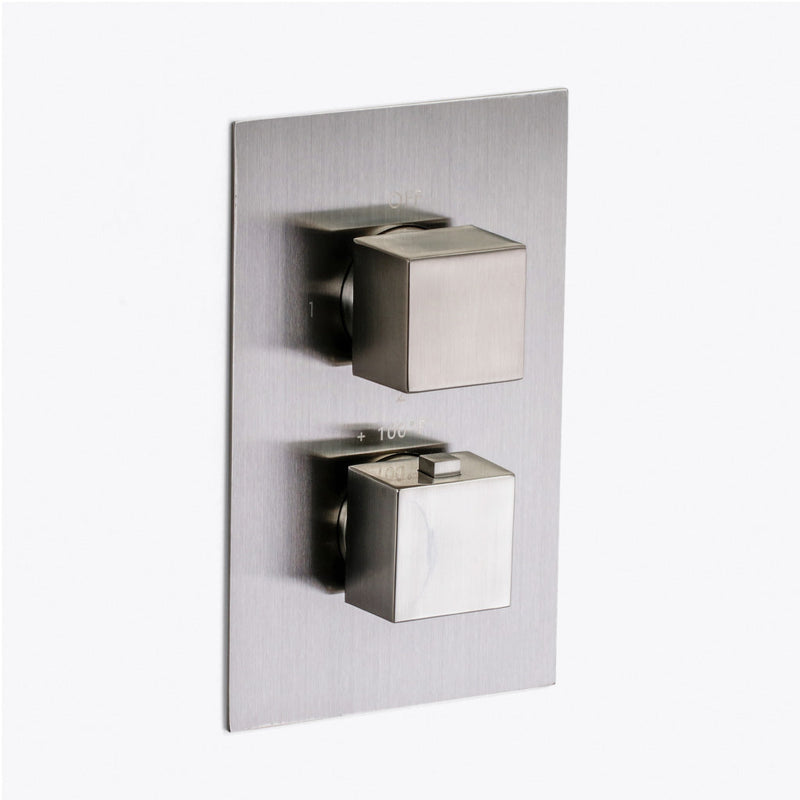

• Trim features:
• Square design
• Full brass

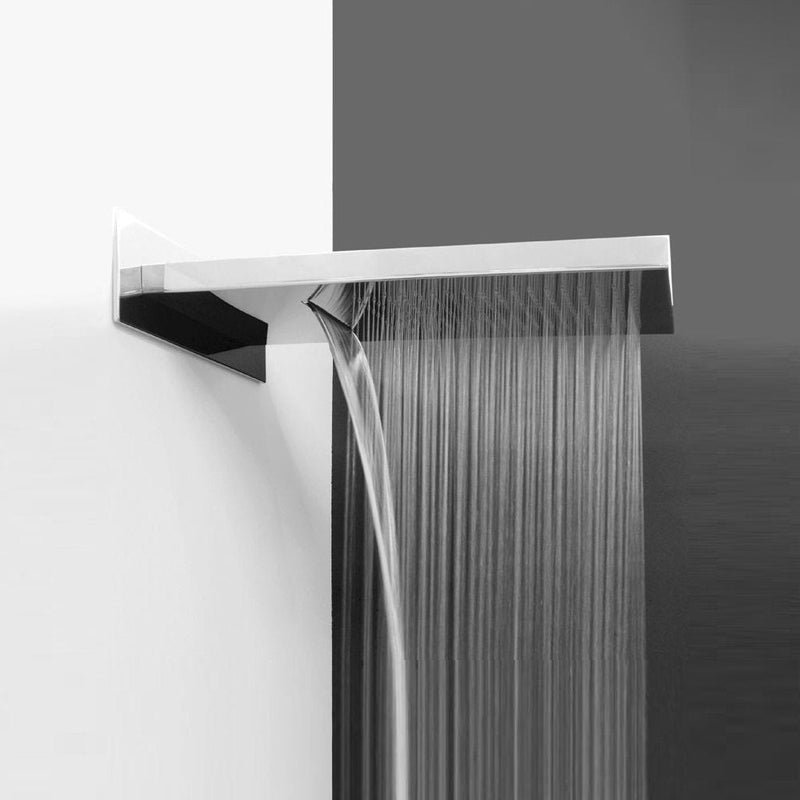

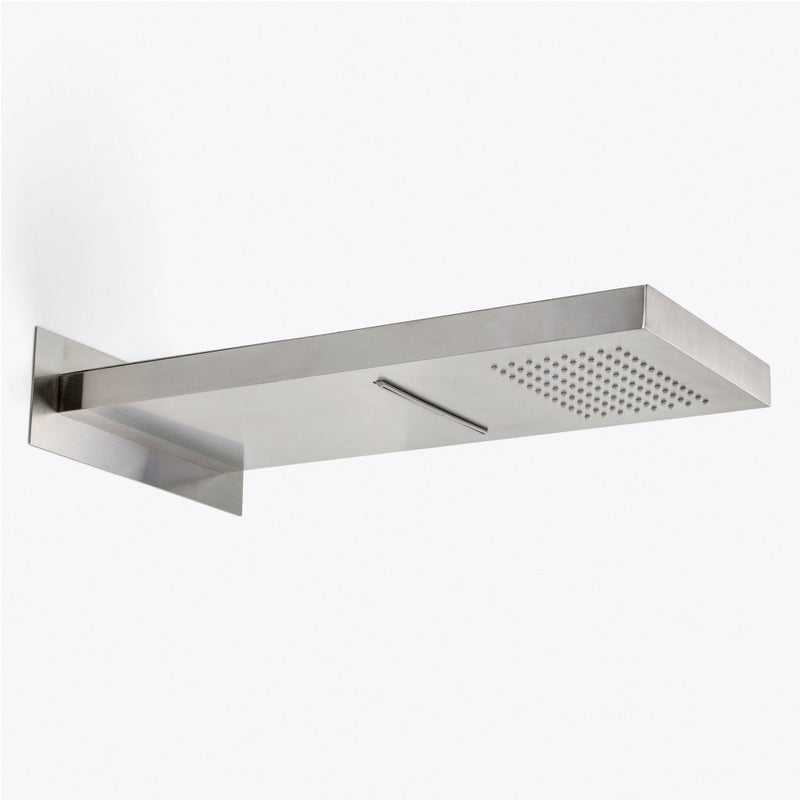

• Shower head features:
• Waterfall and rain shower.
• 1/2" NPT male inlet for each function
• 2 functions, needs premixed water
• 4 Gpm @ 80 PSI / 15 L/min @ 522 kPa
• Silicone nozzles easy to clean in rain function
• Made in stainless steel.

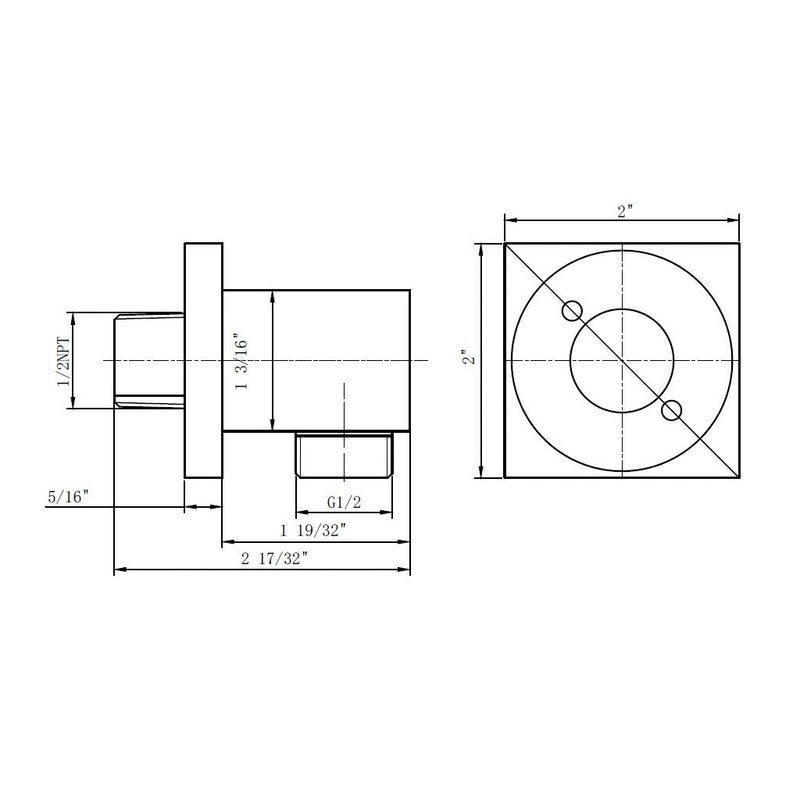

• Connector features:
• Square design
• NPT 1/2 in. inlet. G 1/2 in. outlet
• Hose features:
• Length 60 in.
• Stainless Steel construction.
• NPT 1/2 in. inlet
• Hand shower features:
• Square design.
• Only rain function.
• 1.8 Gpm
• G1/2 in. Inlet.
• Silicone square nozzles easy to clean.
• ABS construction.

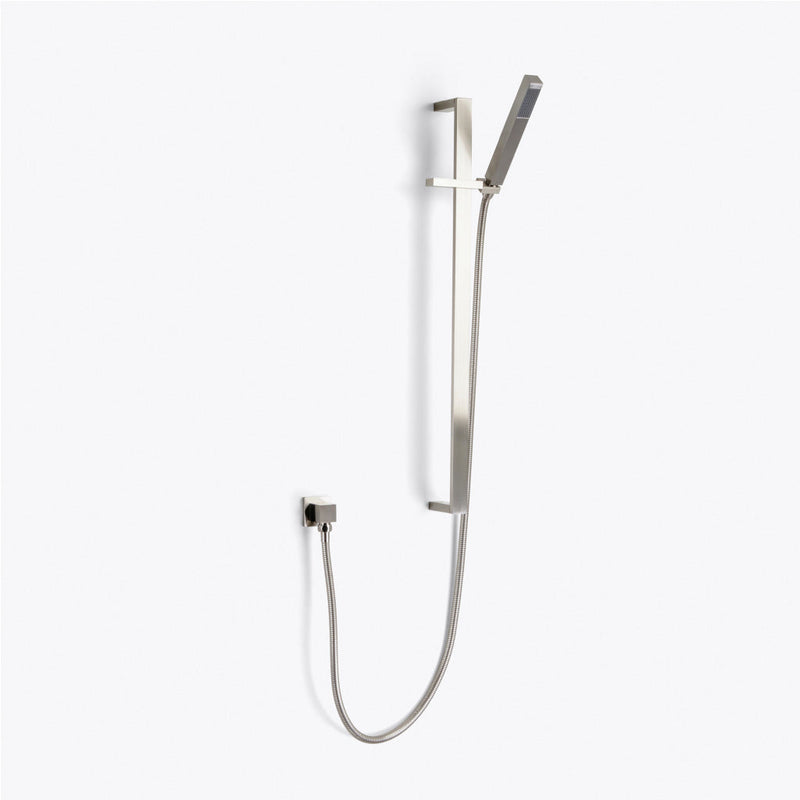

• Sliding bar features:
• Made in full brass
• Support for hand shower adjustable in height and inclination.
• You need to complete this product with hose, connector and hand shower
• Material: Brass
• Material: Brass
• Finish/Color: Brushed Nickel
• Dimensions:
• Weight: 20.5 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• Easy Installation: Yes

Documents:

• Spec Sheets (PDF)
