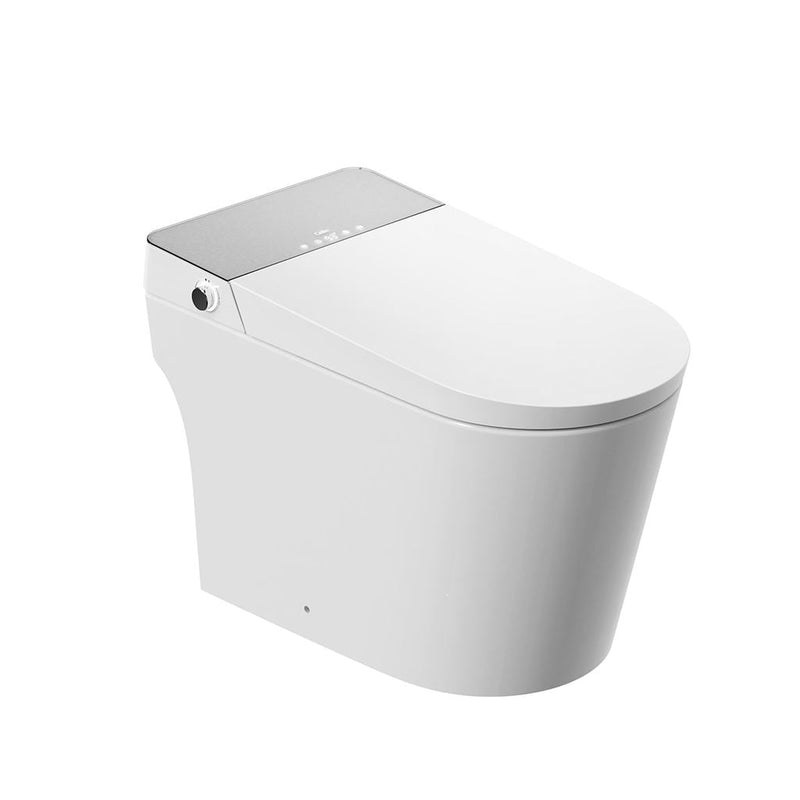

The Ikon one-piece toilet is cleverly engineered, complex technology showcased in an exceptionally simple yet modern low-profile design. Its design takes up less space than traditional toilets and incorporates engineering innovations to offer less design intrusion with more flush excellence.
This design and powerful flushing efficiency provide unique water conservation benefits and eliminate the need for unnecessary ceramics (a reduction of over 25% fewer materials than traditional toilets).

Features:

Main Unit:

• Rated voltage: 110V-120V, 50/60Hz
• Rated power: 1170W
• Water proof: IPX4
• Power cord length: About 2.2m

Toilet:

• Flush volume: 1.6/1.1Gpf, 6.0L(full flush)/4.1L(half flush)
• Flushing mode: Siphonic jet
• Rough-in: 305mm
• Outlet outside diameter: ≤100mm
• Drainage method: S-trap
• Water pressure range: 0.09MPa (dynamic pressure, flow rate of 3.96+Gal/min or 15.0+L/min) - 0.8MPa (static pressure)

Cleaning device:

• Heating mode: Instant
• Heating power: 120V/1400W
• Water temperature: 6-level adjustment
• Water volume: 3-level adjustment
• Dual cleaning technology
• Auto opening
• Foot sensor opening
• Digital display
• Seat heating
• Mobile washing Instant Heating
• Plasma sterilization
• Arch-shaped spray wand
• Pre-wash
• Deodorization technology
• Foot sensor flushing
• Material: Vitreous China
• Finish/Color: White

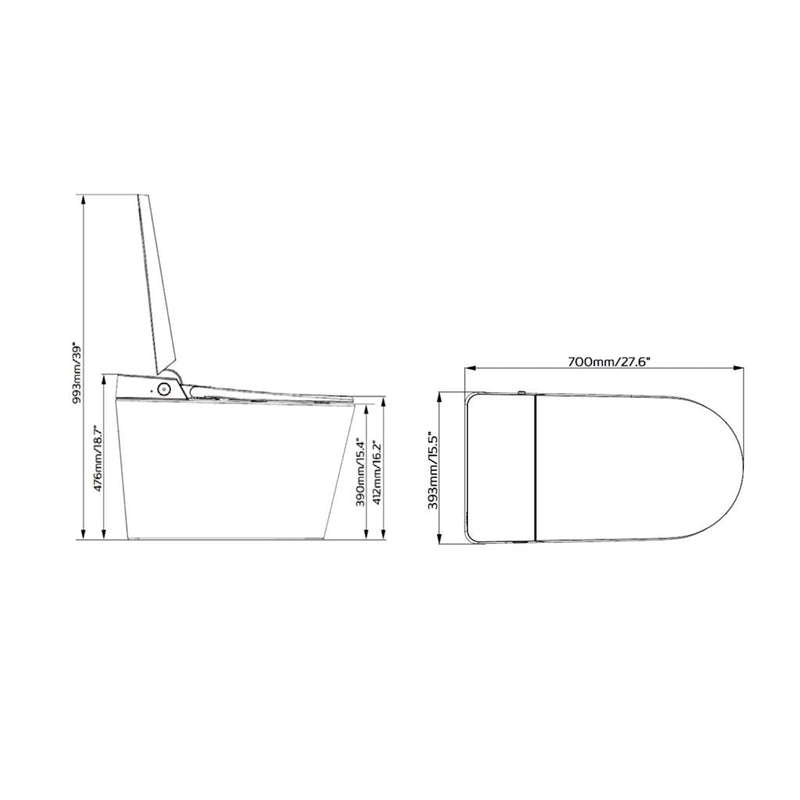

• Dimensions: W: 15.5" * H: 18.7" * D: 27.6"
• Weight: 110 lb.
• UPC Certified: Yes
• Easy Installation: Yes

• Remote Control
• Toilet Seat
• Toilet Bowl
• Installation accessories
• Qty: 1

Documents:

• Spec Sheet (.PDF)
• Technical Specifications (.PDF)
• Installation Manual (.PDF)
