Name: Rond Round Blade Handles With Hand Shower Complete Tub Faucet - Drop-In - 8" Brass/Satin Brass
Brand: Phylrich
SKU: 183-48-004+80001247
Price: 2226.0 USD
Availability: InStock

Rond Round Blade Handles With Hand Shower Complete Tub Faucet - Drop-In - 8" Brass/Satin Brass

Rond Round Blade Handles With Hand Shower Complete Tub Faucet - Drop-In - 8" Brass/Satin Brass

SKU 183-48-004+80001247

by Phylrich

$0.00 - $0.00

$0.00

$2,226.00

$2,226.00 - $2,226.00

$2,226.00

Delivery time

This product will ship from the manufacturer within 10 business days

Included:

183-48-004 Tub Faucet

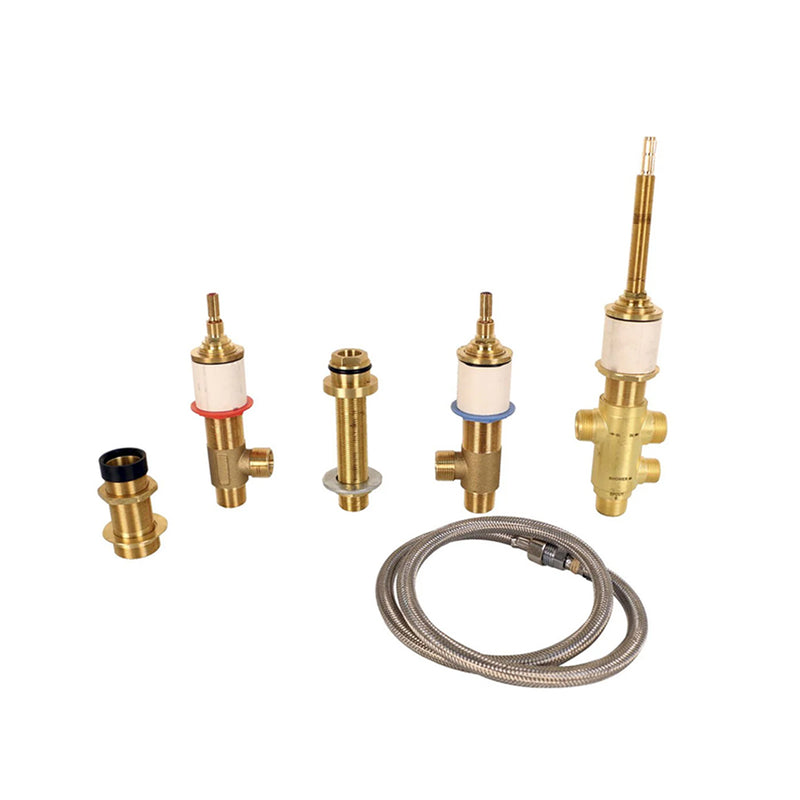

80001247 Rough-In Valve
Installation accessories
Qty: 1

Documents:

Spec Sheet (.PDF)
Parts Diagram (.PDF)
Instruction Manual (.PDF)

The Rond collection is a stunning display of modern design with its sleek, rounded edges that give it its name.

Features

ADA Compliance: Yes
Deck Thickness Maximum: 2"
Deck Thickness Minimum: 1/8"
Handle Fitting Hole Diameter: 1 3/8" Max
Number of Holes: Five Hole
Number of Handles: Three
Handle Spread Maximum: 12"
Handle Spread Minimum: 8"
Handle Turn Angle: Quarter Turn
Inlet Connection Type: Male 3/4" NPT
Installation Type: Deck Mounted
Primary Material: Brass
Valve Material: Ceramic
Spout Flow Restriction: Full Flow
Hand Shower Flow Restriction: 1.8 GPM
Water Pressure Maximum: 85 PSI
Water Pressure Minimum: 20 PSI
Water Pressure Recommended: 60 PSI
Material: Brass
Finish/Color: Satin Brass
Dimensions: W: 8" * H: 6,5" * D: 10,75"
Weight: 08 lb.
Rustproof: Yes
Warranty (Years): 1
Material Warranty: Yes
Finish Warranty: Yes
UPC Certified: Yes
ADA Certified: Yes
Easy Installation: Yes
