Serie 196 2 Way Thermostatic Trim Complete Shower Set - Wall Mount - 6" Brass/Polished Chrome

[additional]

Included:

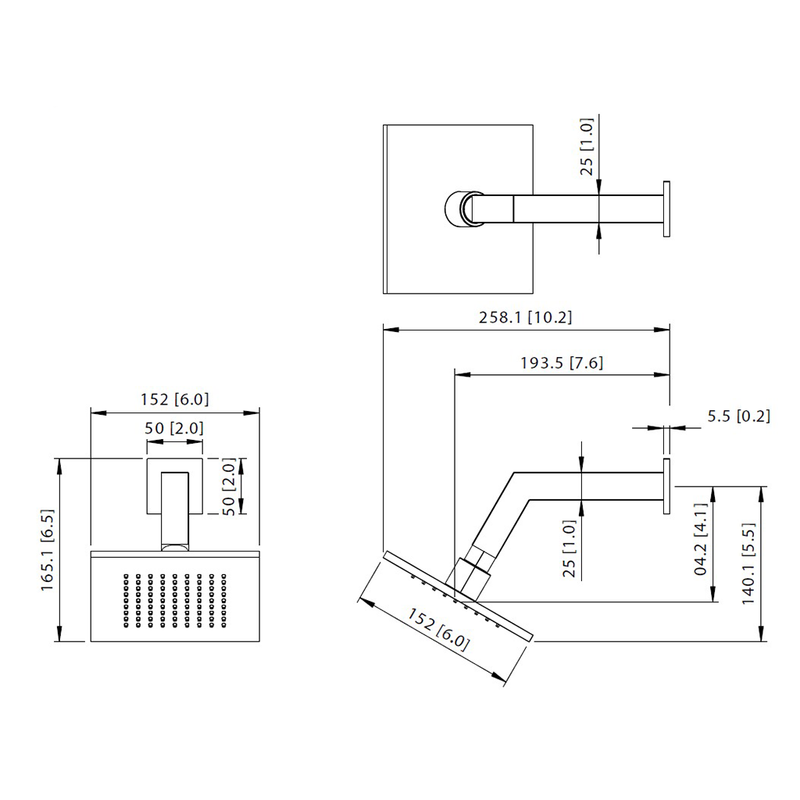

• ISB.SHH.RHW.06.00.BR.PCH Shower head
• ISB.SHM.S19.06.00.BR.PCH Shower Mixer
• ISB.HSH.HS0.01.00.BR.PCH Hand Shower
• ISB.BHO.SCO.01.00.SS.PCH Hose
• ISB.HHC.HS8.03.00.BR.PCH Connector
• Qty: 1

Documents:

• Spec Sheet (.PDF)
• Installation Instruction (.PDF)
• Parts Diagram (.PDF)

[/additional]

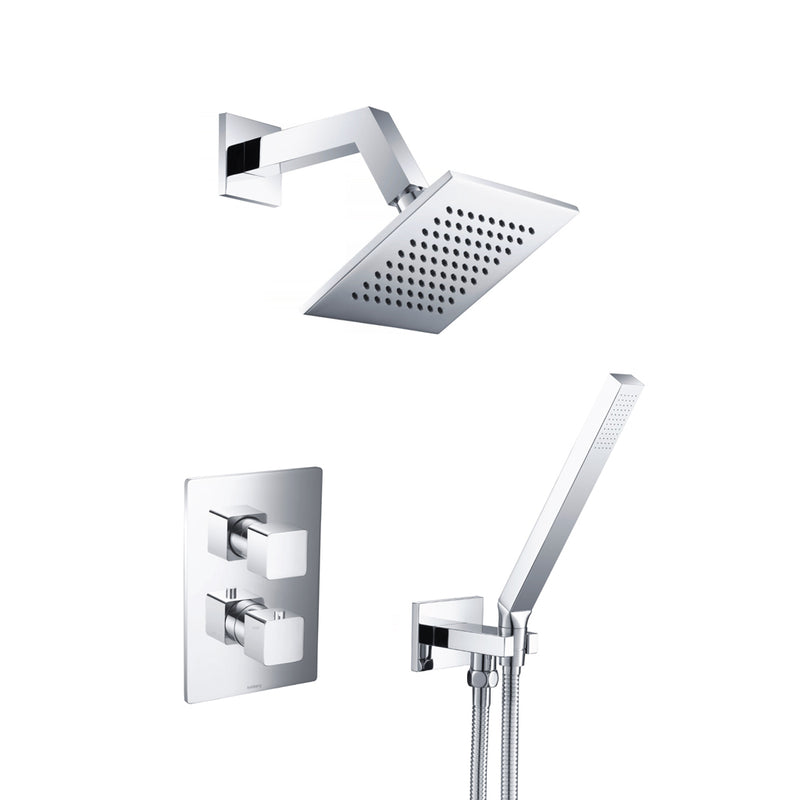

2-way shower system with balanced pressure. With this shower set you have everything you need to install your shower. It is a bidirectional system with outlet for shower head and outlet for hand shower. Composed of a balanced pressure bidirectional single-lever mixer, fitting with support for hand shower, hand shower, flexible hose, shower arm for wall installation and extra-flat design shower head.

Features:

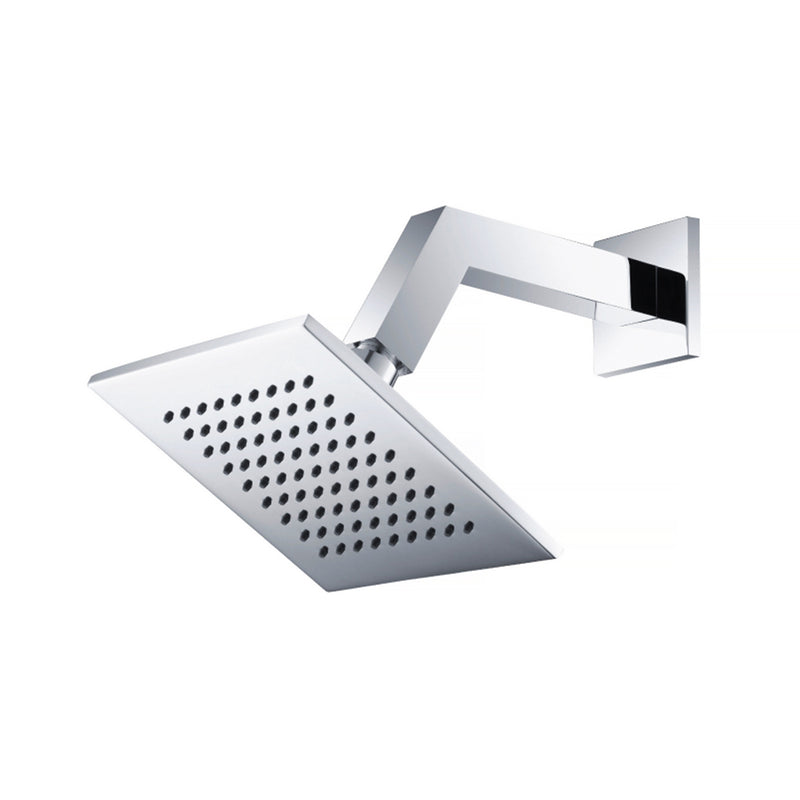

• Shower Head Features:
• Rubber nozzle for easy cleaning
• 1.8 GPM flow rate
• With adjustable flange

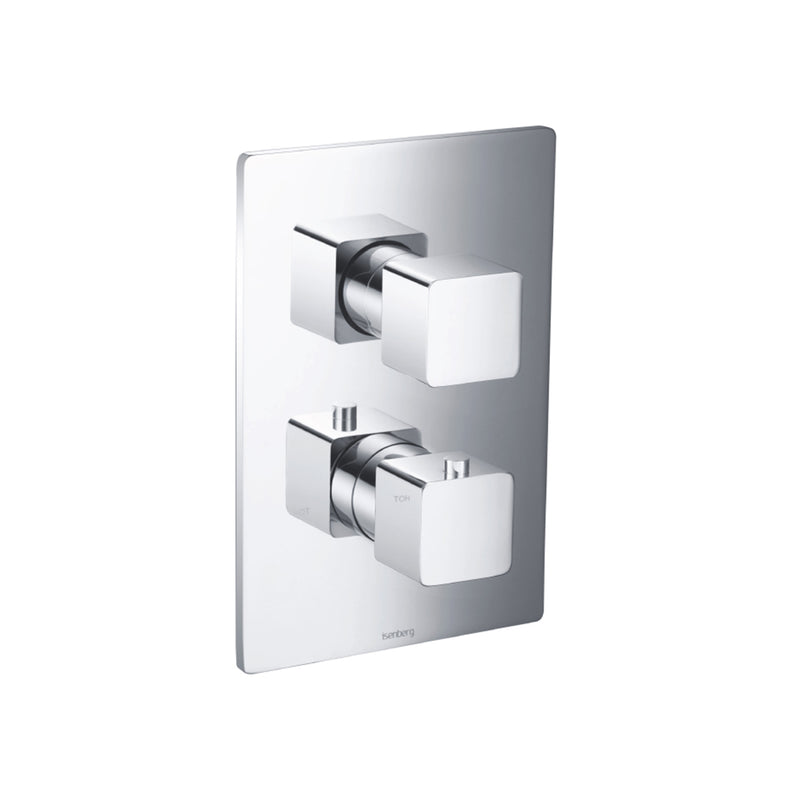

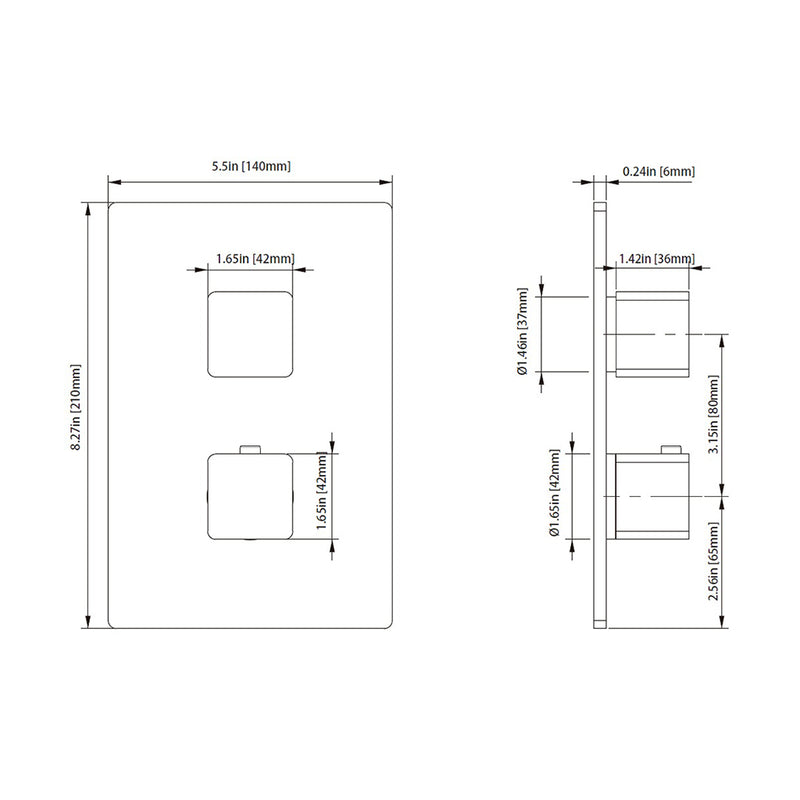

• Shower Mixer Features:
• Turn bottom handle to control temperature.
• Trim Only – Valve Not Included
• Turn top handle to divert water & control volume.

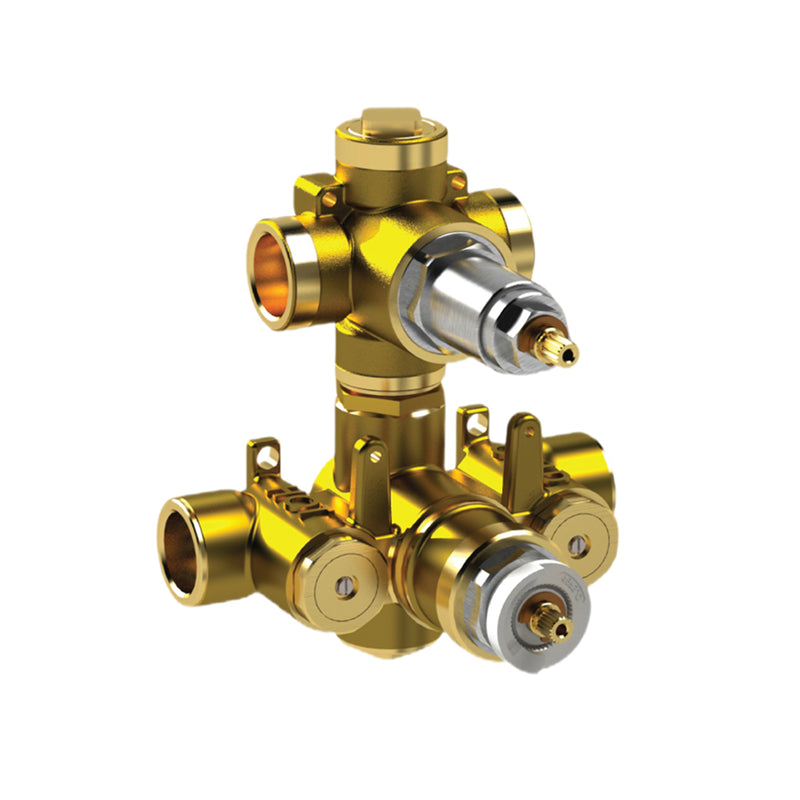

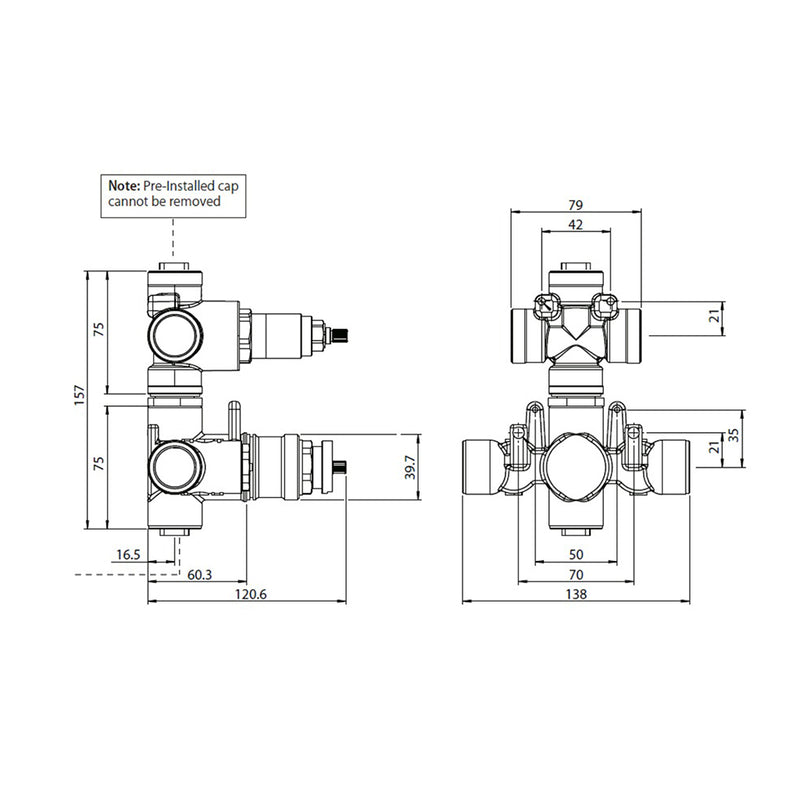

• Includes Thermostatic valve (TVH.4420F) w/ service stops
• Thermostatic Valve Flow Rate
• 8.0 GPM @ 60 PSI
• Extension Available
• TVH.4101E**

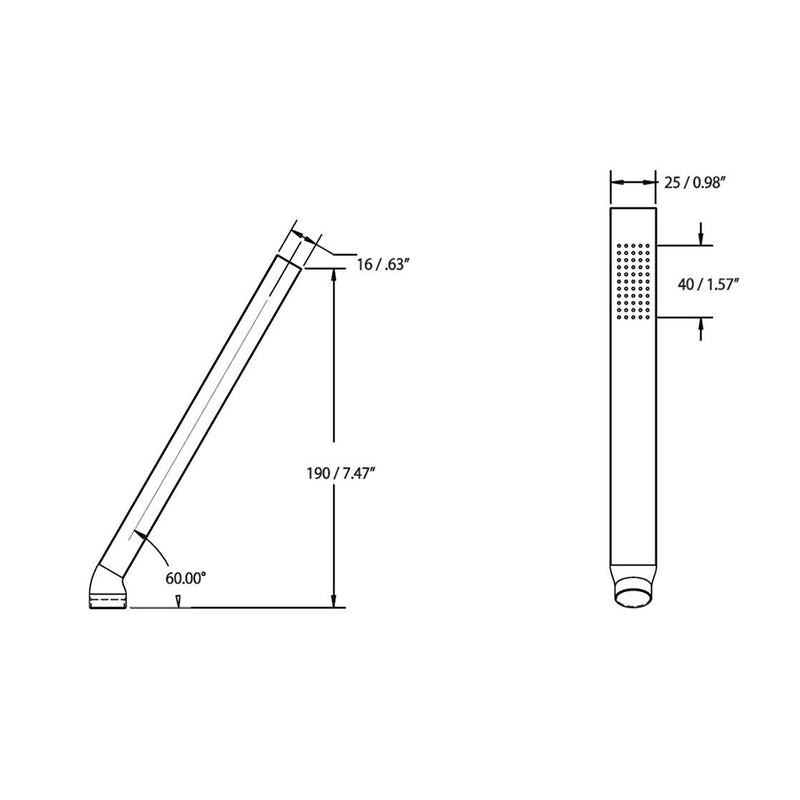

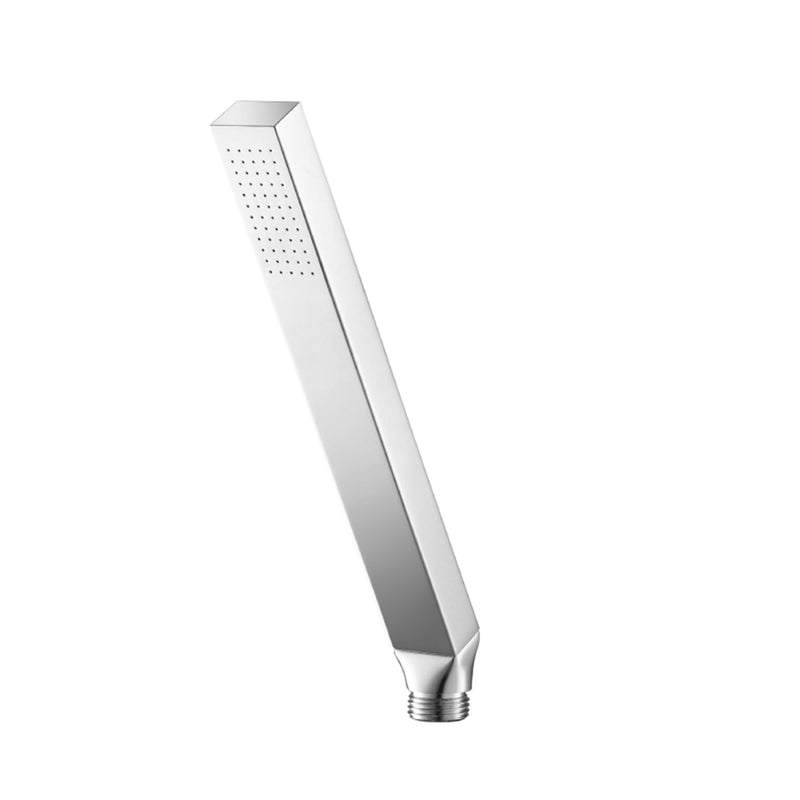

• Hand Shower Features:
• 1.8 GPM Flow Rate
• With back flow prevention check valve
• 60° tilt

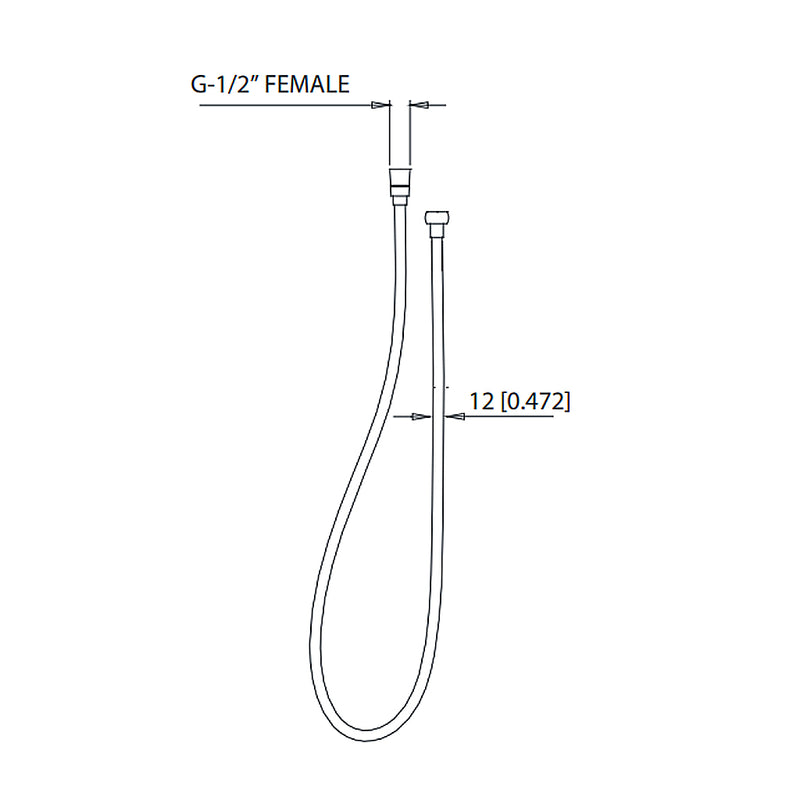

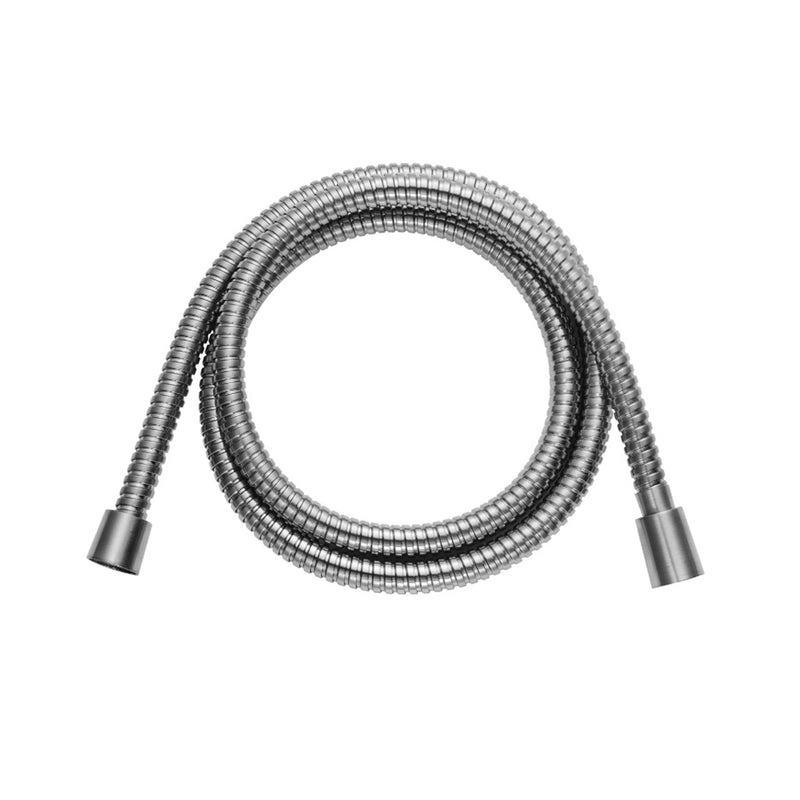

• Hose Features:
• G-1/2” connection
• 1.5m length

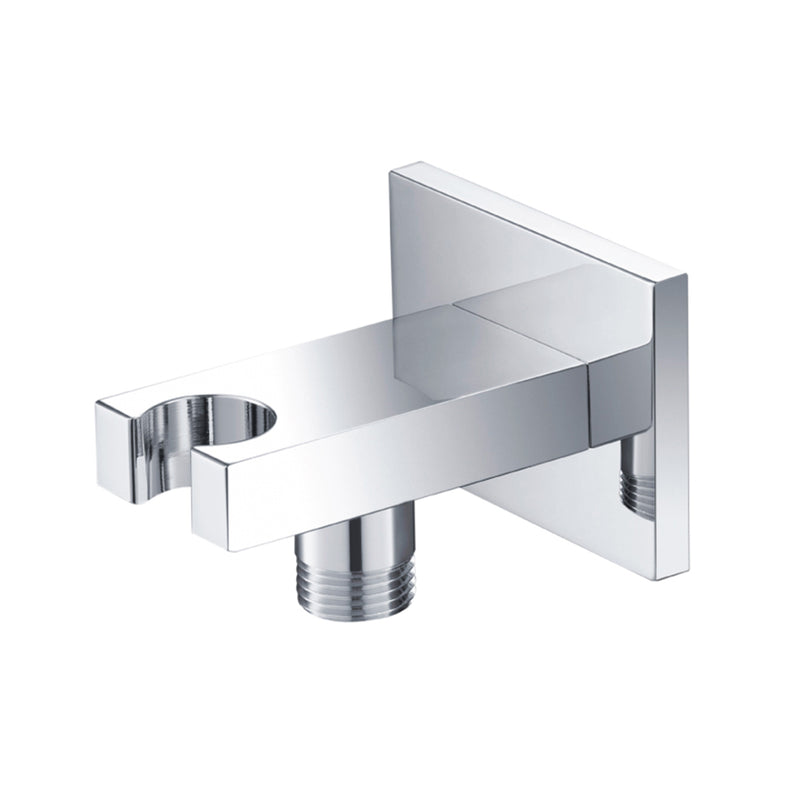

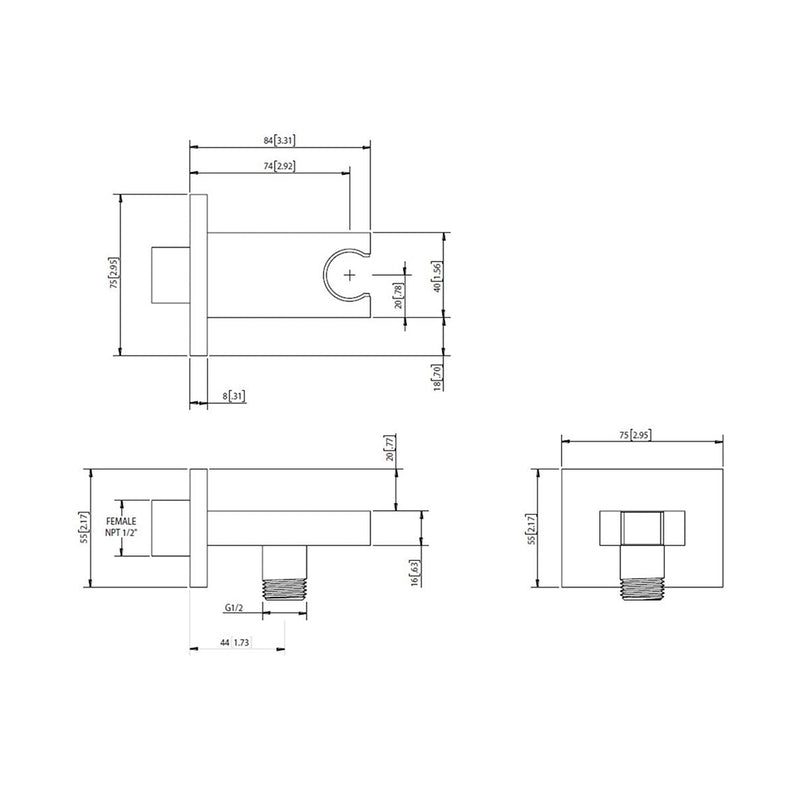

• Connector Features:
• Hose connector with holder
• Includes Check Valve with back flow prevention.
• With 1.8 GPM flow restrictor
• 90° degree elbow for shower hose
• With backflow prevention check valve
• Material: Brass
• Finish/Color: Polished Chrome
• Dimensions:
• Weight: 110 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• Easy Installation: Yes
