The Raindance shower collection provides versatility in the way you shower. There's a shower head for everyone, with spray modes ranging from massaging to a gentle rain experience. High-quality German engineering brings the pleasure of a spa shower to your own bathroom.

Features:

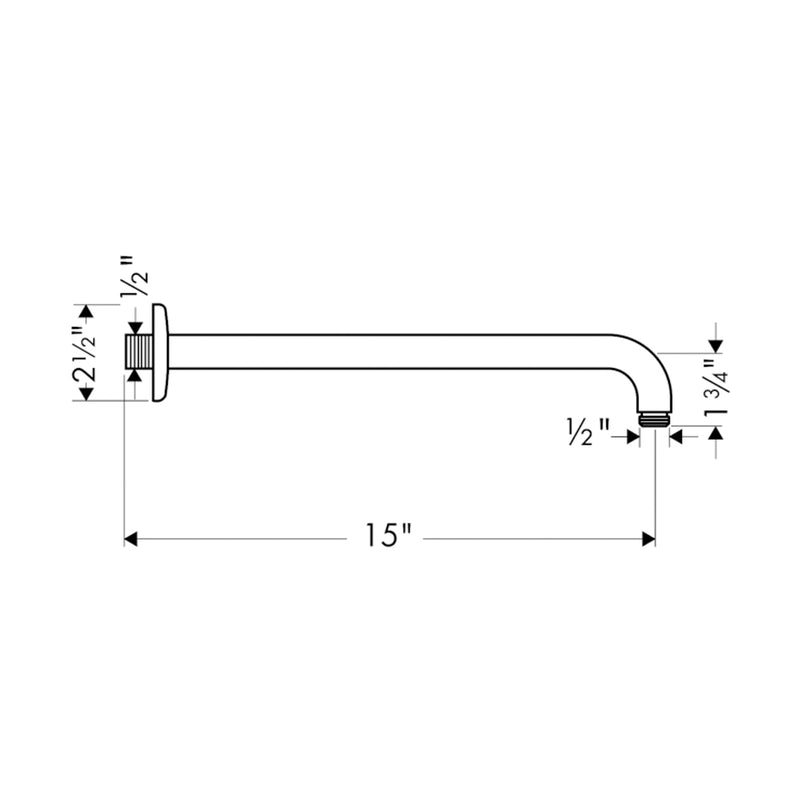

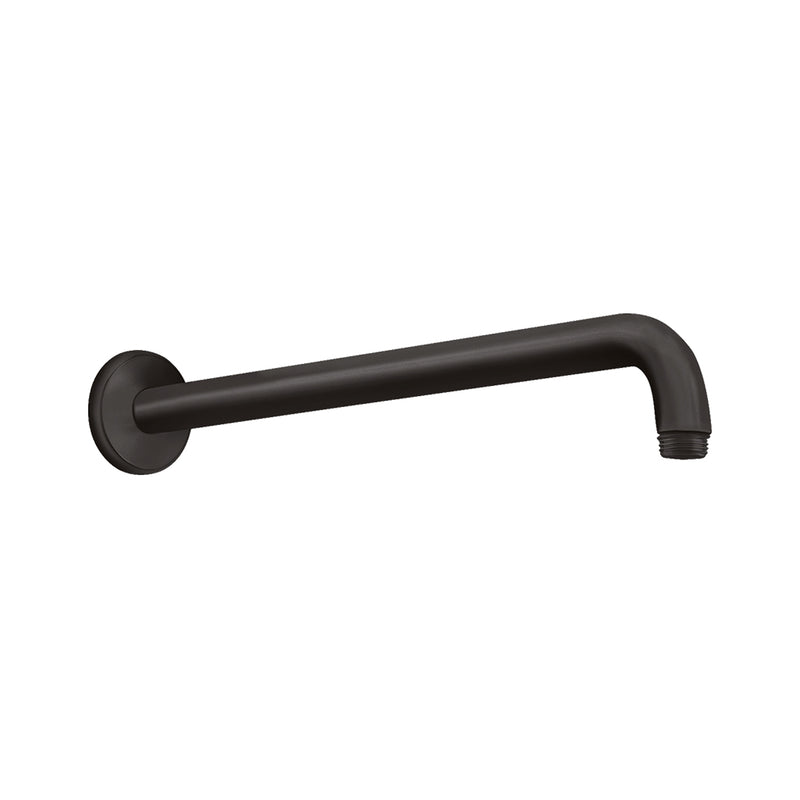

Shower Arm Features:
• Length: 389 mm
• Version: 90° angle
• Connection type: ½" NPT
• Showerarm, Escutcheon, Assembly instructions

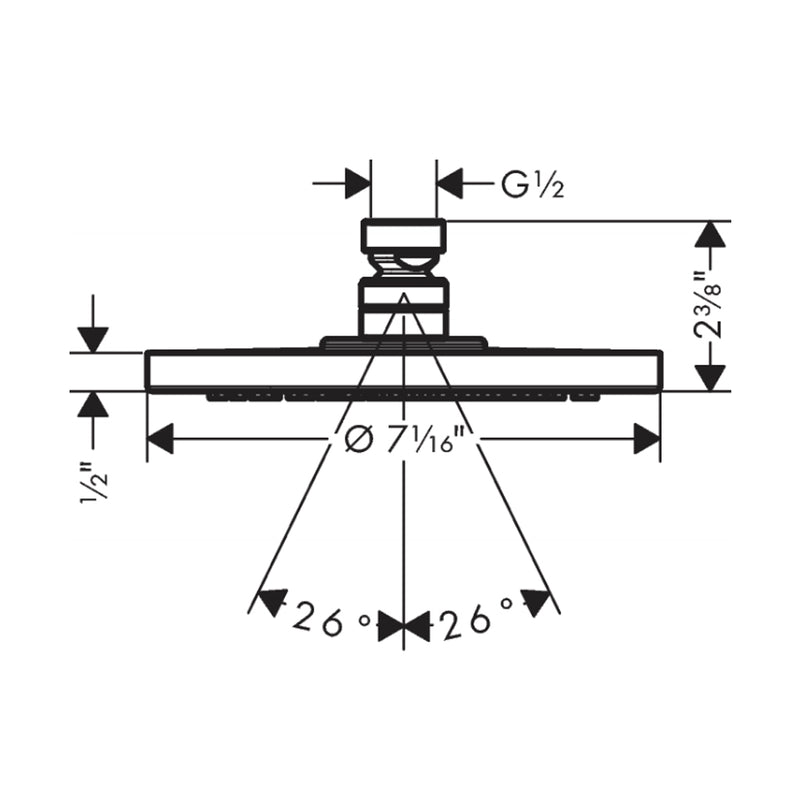

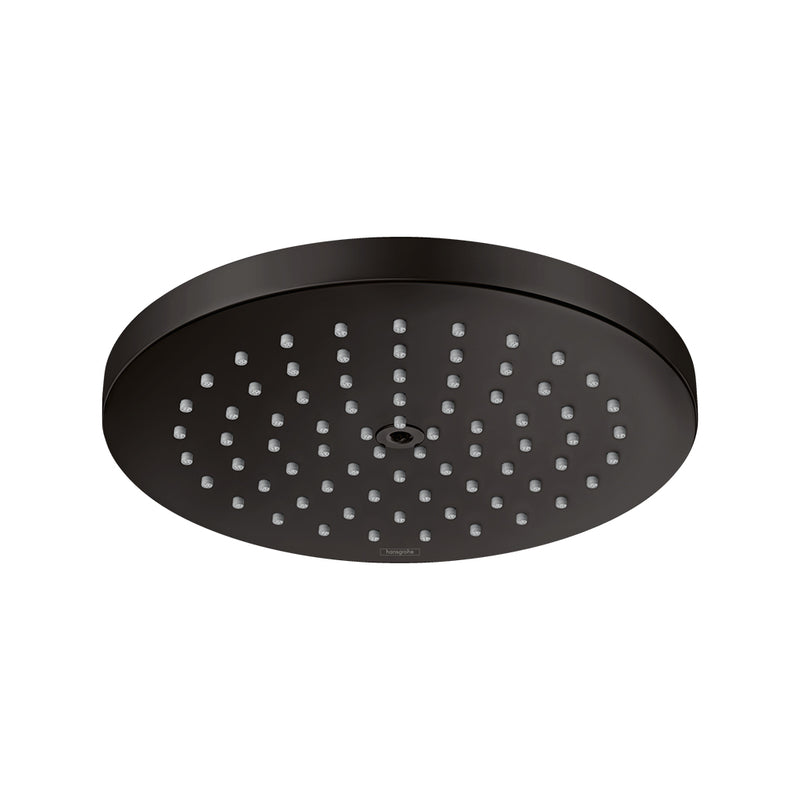

Shower Head Features:
• Shower head size: 180 mm
• Spray modes: PowderRain
• Spray face finish: Fully-finished matching spray face
• Flow: 2.5 GPM (9.5 L/Min)

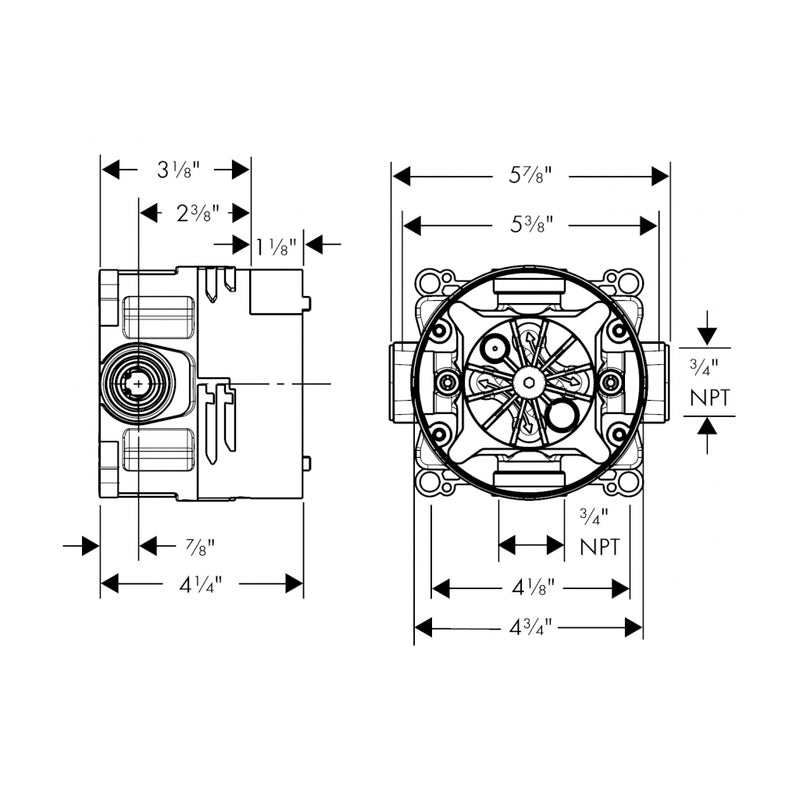

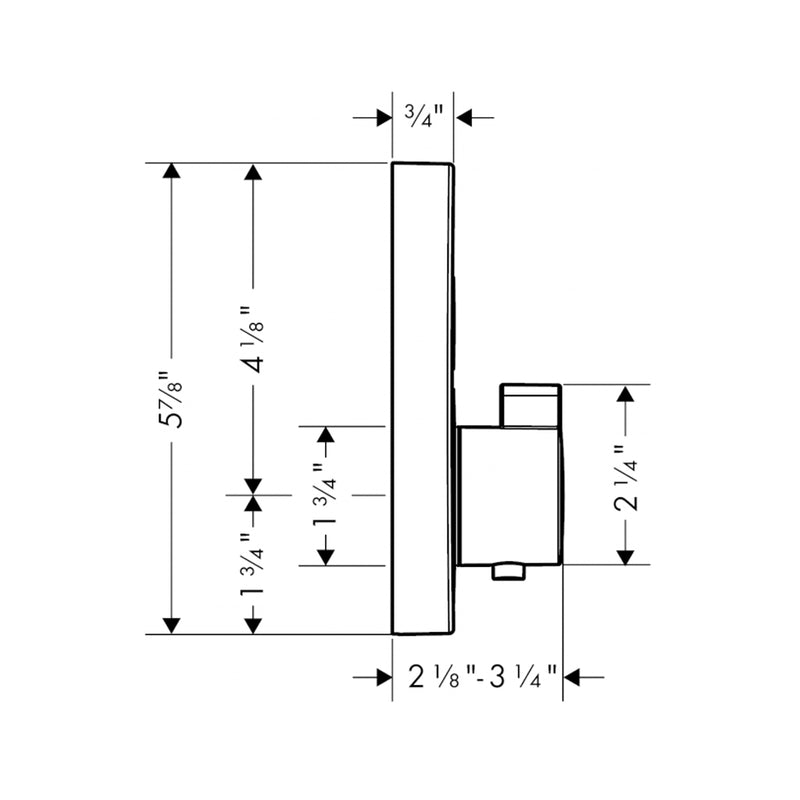

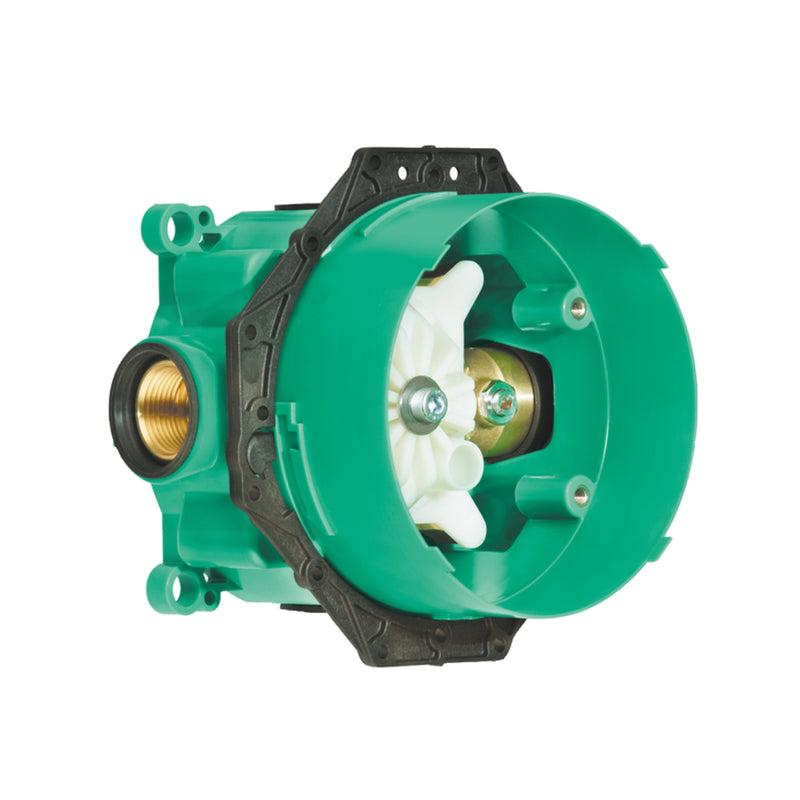

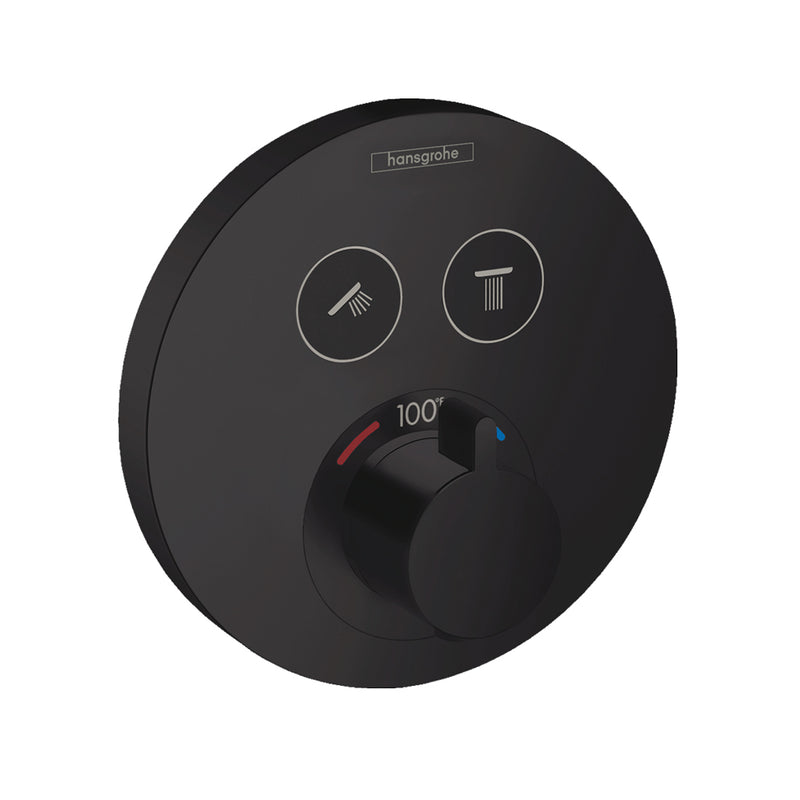

Shower Mixer Features:
• ¾" NPT
• 180° rotationally-symmetric installation
• Sound-decoupled installation
• Thermostatic cartridge, Start/stop cartridge
• Select push-button on/off control for 2 outlets
• Outlets may be operated simultaneously
• Flow: 8.0 GPM (30.3 L/Min) / 2.0 GPM (7.6 L/Min)
• Optimized for water-efficient shower products
• Anti-scald 100° safety stop
• Trim comes with Select buttons: handshower and Rain
• Optional accessory to limit total flow to 2.0 GPM @ 80 psi where required

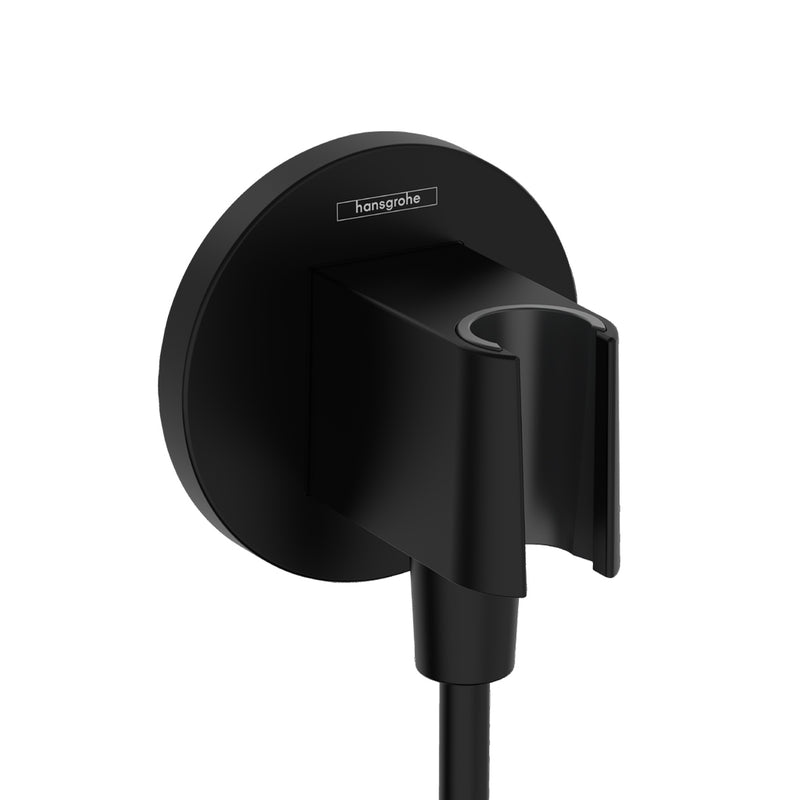

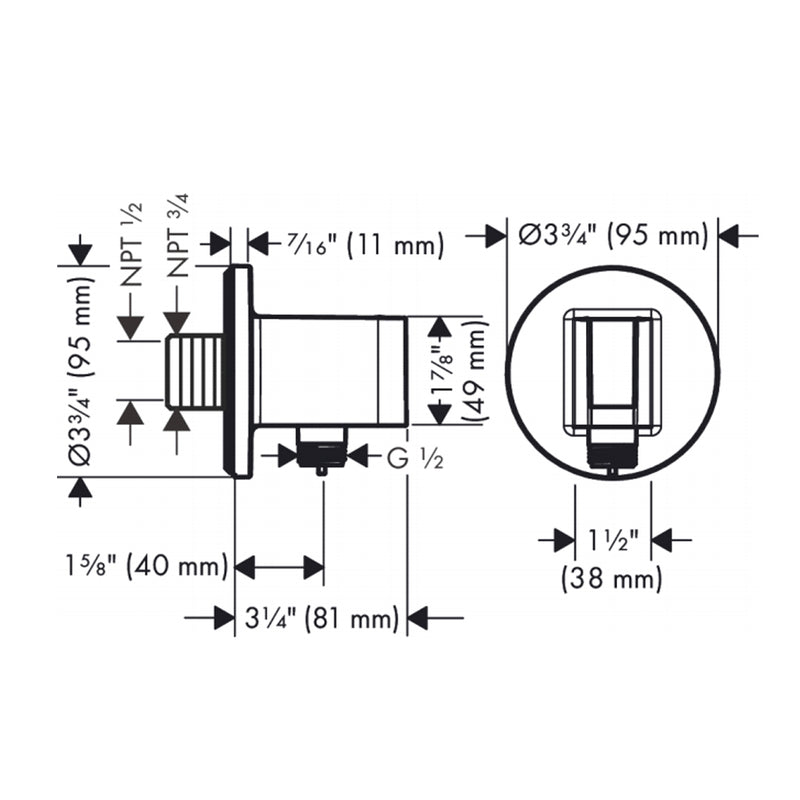

Connector Features:
• Consists of: Wall connector, Escutcheon
• Version: plastic housing with internal water supply made of plastic
• Wall-mounted
• Connection type: ½" NPT, ¾" NPT

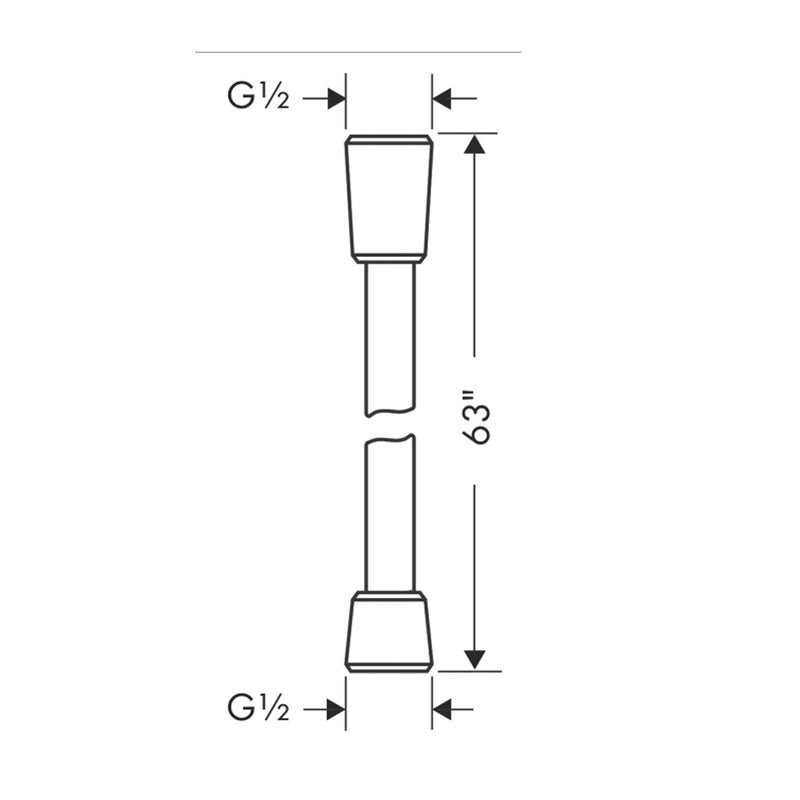

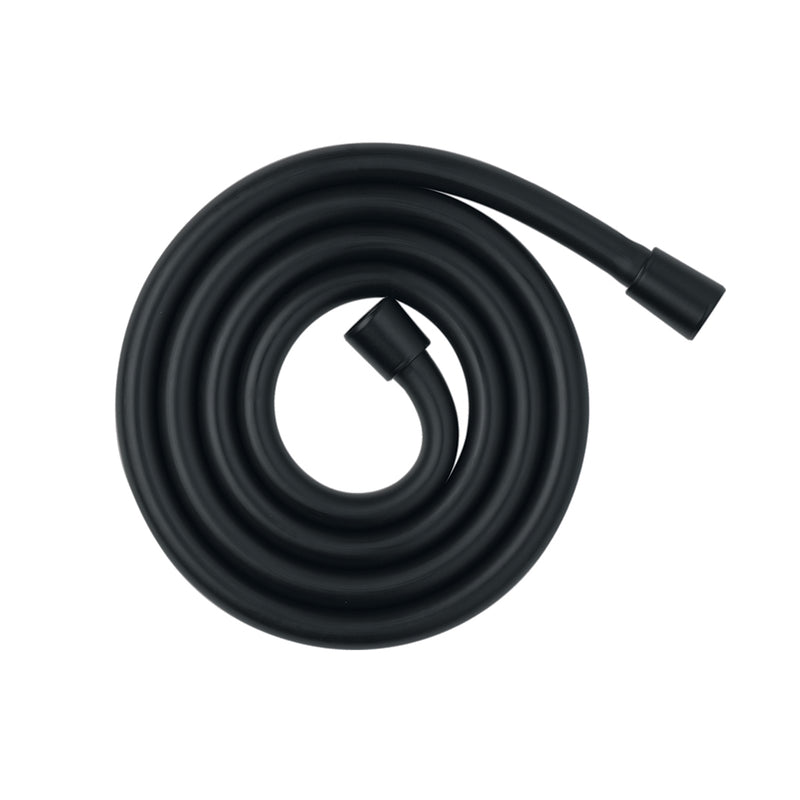

Hose Features:
• High-quality shower hose
• Pivot connector prevents hose from tangling
• No-kink hose
• Connection thread: G ½

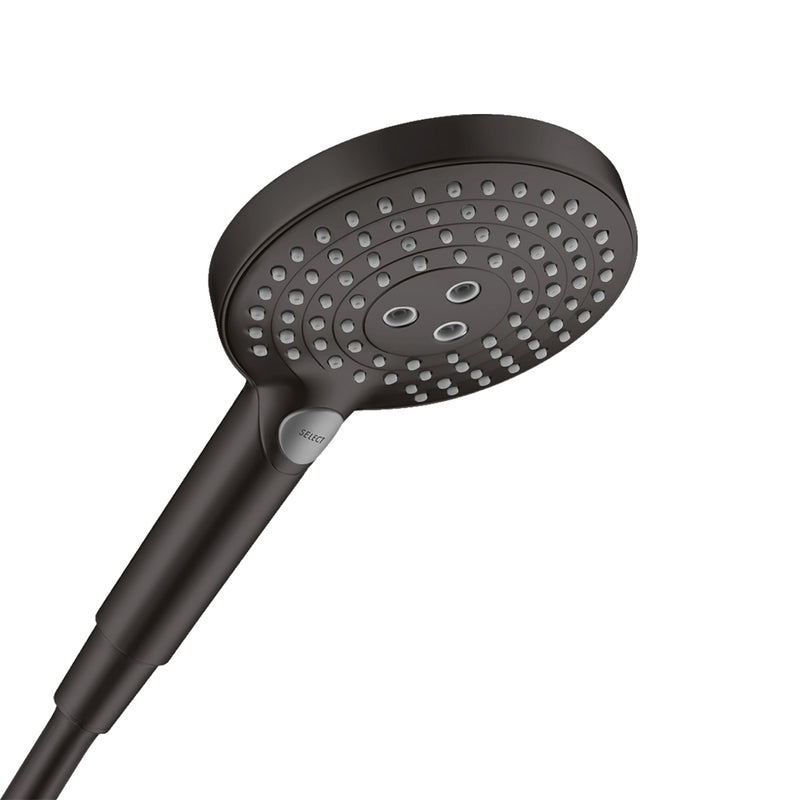

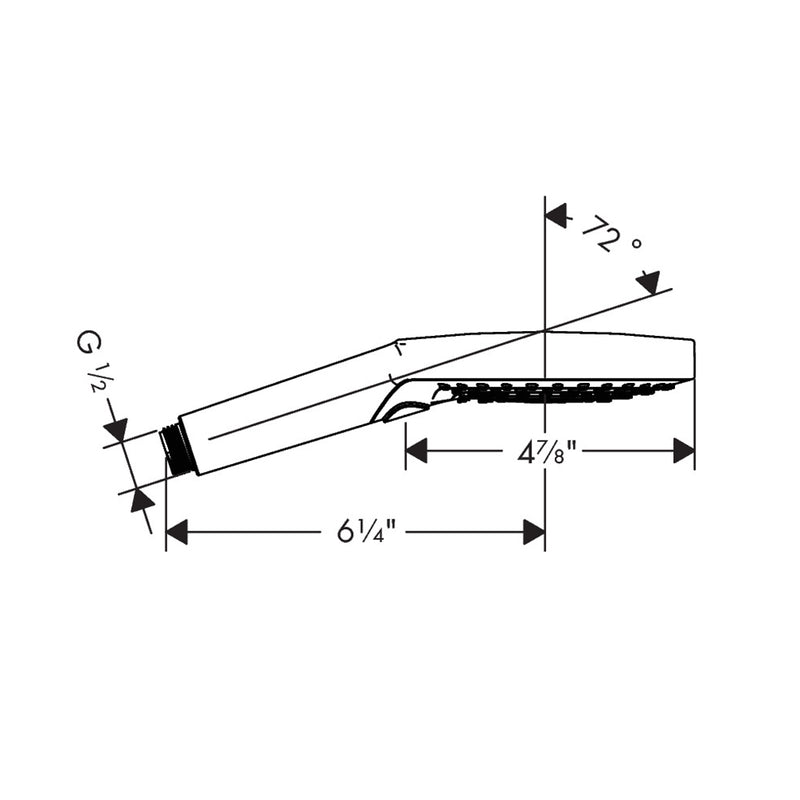

Hand Shower Features:
• Spray modes: Rain, Whirl, PowderRain
• Select button for comfortable alternation of spray modes
• Spray face finish: easy cleanable plastic spray disc
• Flow: 2.5 GPM (9.5 L/Min)
• Material: Brass
• Finish/Color: Matt Black
• Dimensions:
• Weight: 44 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• Easy Installation: Yes

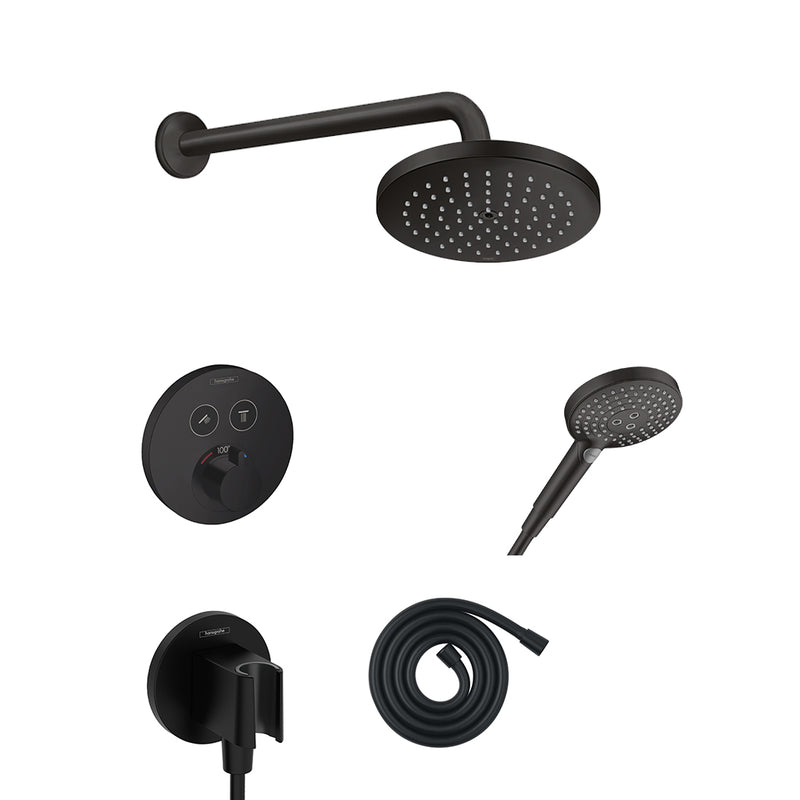

This complete shower system includes:

• HAN.SHA.RDN.15.01.BR.MBL Shower arm wall mount 15"
• HAN.SHH.RDN.08.00.BR.MBL Shower head 2.5 GPM 8"
• HAN.SHM.SHS.06.00.BR.MBL Shower mixer rough-in valve with thermostatic trim 6"
• HAN.HHC.FXF.04.00.BR.MBL Shower Connector 4"
• HAN.HHO.TCH.63.00.BR.MBL Hose 63"
• HAN.HSH.RDN.09.00.BR.MBL Hand Shower 9"
• Installation accessories
• Qty: 1

Documents:

Spec Sheet (.PDF)
