Metro 2-3 Way Thermostatic Trim Complete Shower Set - Wall Mount - 12" Brass/Polished Chrome
SKU COF.SET.MTO.12.12.BR.PCH
by Bathonomy

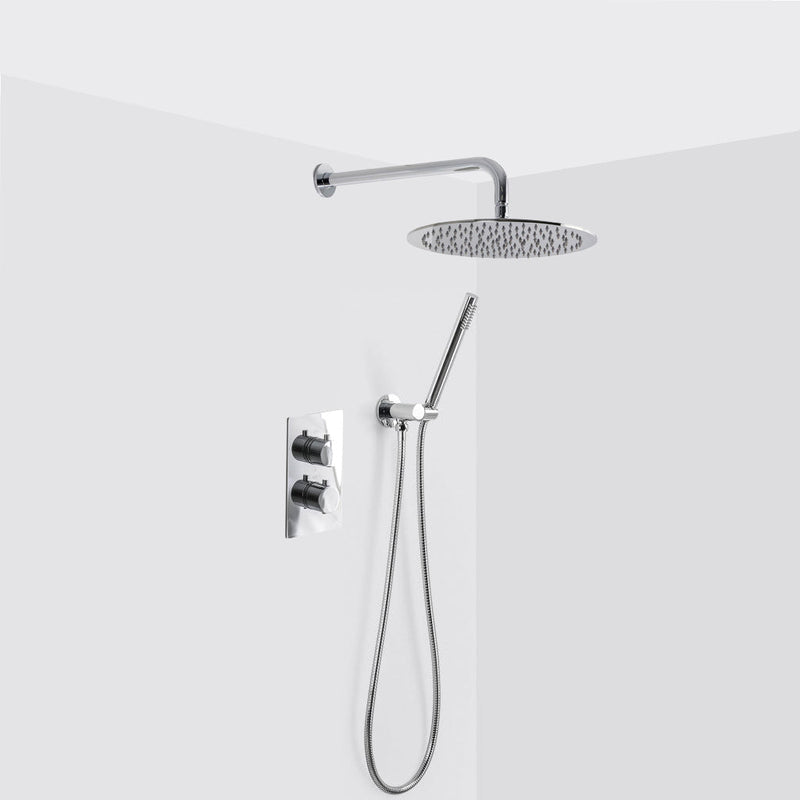

Pressure balanced 2-3 Way shower system of our family Metro. With this shower set you have everything you need to install your shower. It is a two-way system with outlet for shower head and outlet for hand shower. This system is available in different finishes. Composed of two-way pressure balanced mixer, connector with holder for hand shower, hand shower, hose, shower arm for wall installation and shower head of slim design.
Features
- Mixer features:

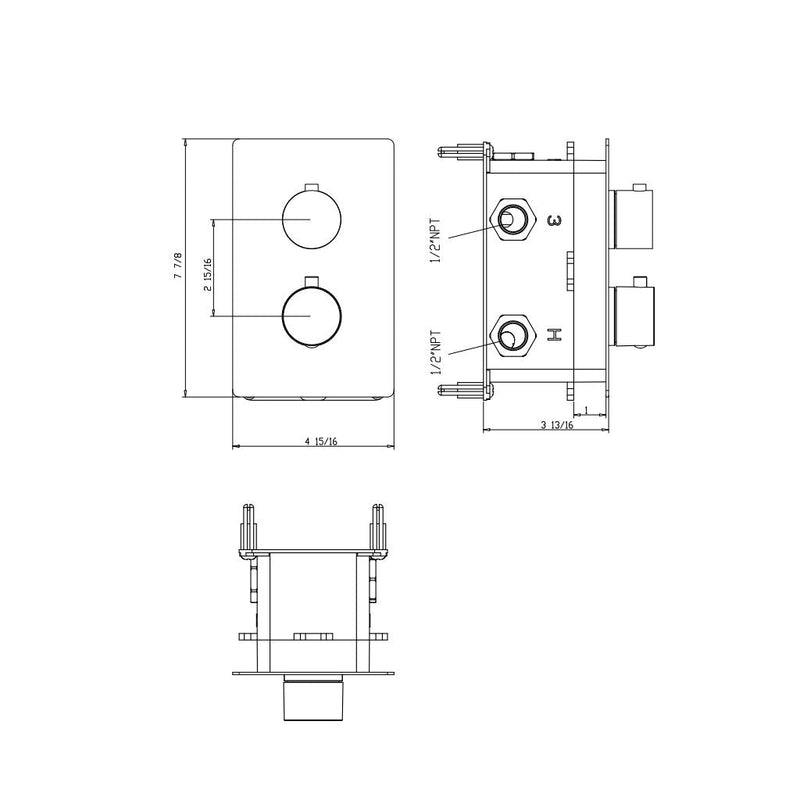

- 2-3 Way Pressure balanced rough-in valve with two way diverter
- Shut-off valves and integrated anti-return valves
- Pressure balanced cartridge adjust inlet pressure fluctuations.
- Pressure balanced cartridge prevent scalding, cold water supply stops when cold water pressure fail
- Maximum outlet temperature and volume can be limited
- Working pressure:
- Min: 20 PSI (1.5 bar)
- Max: 125 PSI (8 bar)
- Recommended: 45 PSI (3 bar)
- Hot water inlet max. temperature: 180 °F (80 °C)
- Water inlet threads: 1/2 NPT male
- Full brass

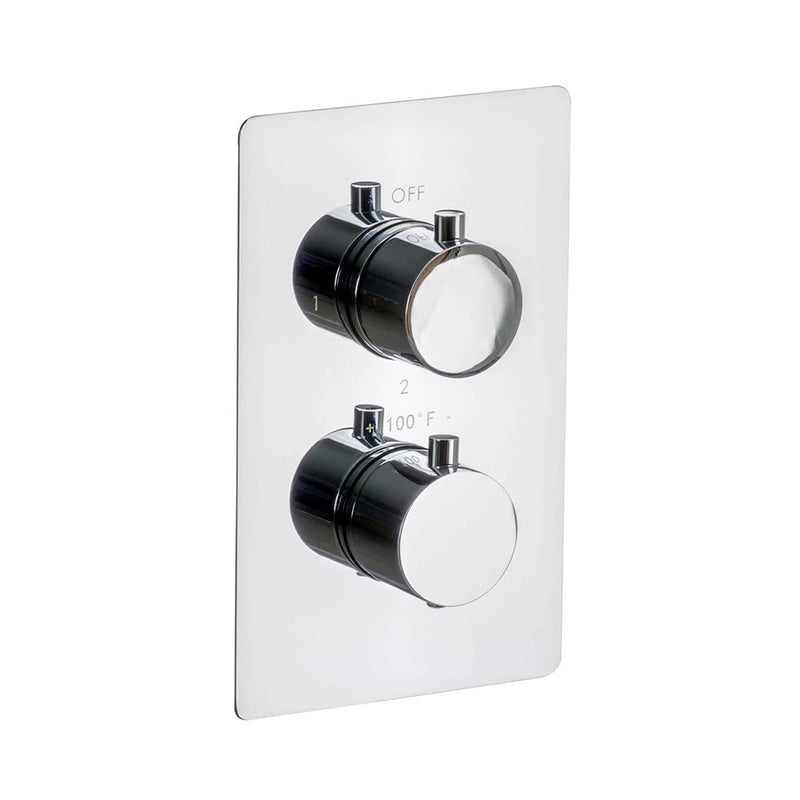

- Trim features:
- Round design
- Full brass

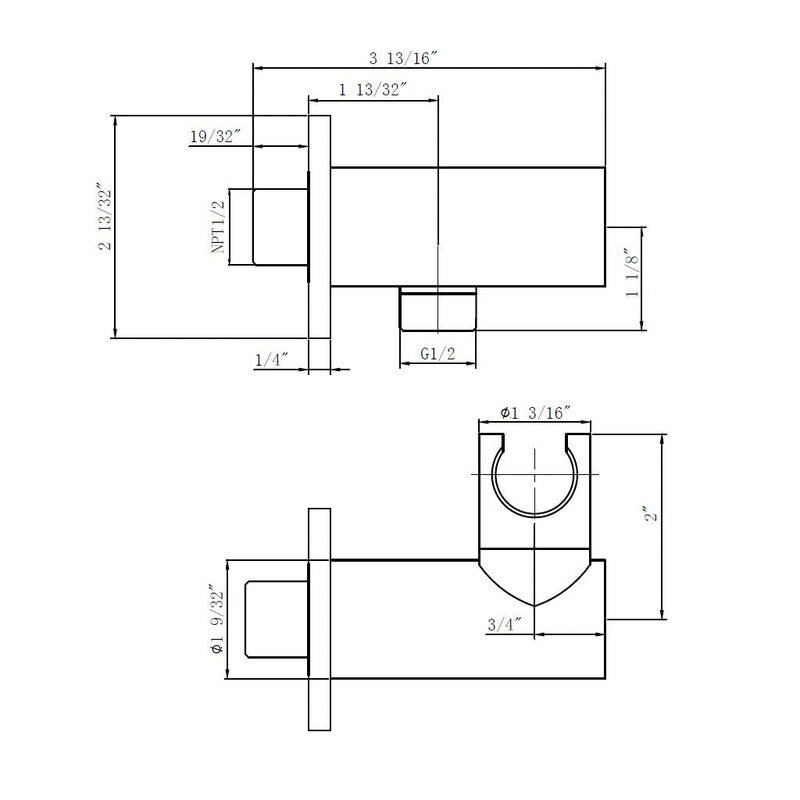

- Connector features:
- Round design with swivel holder for hand shower.
- NPT 1/2 in. inlet. G 1/2 in. outlet
- Hose features:
- Length 60 in.
- Stainless Steel construction.
- NPT 1/2 in. inlet

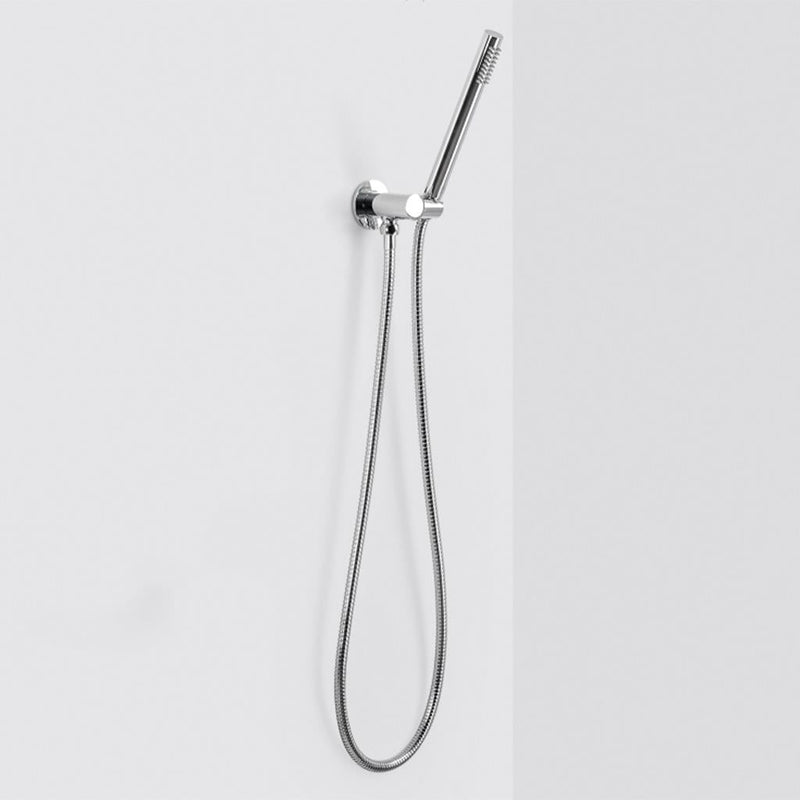

- Hand shower features:
- Round design.
- Only rain function.
- 1.8 Gpm
- G1/2 in. Inlet.
- Silicone square nozzles easy to clean.
- Brass construction.

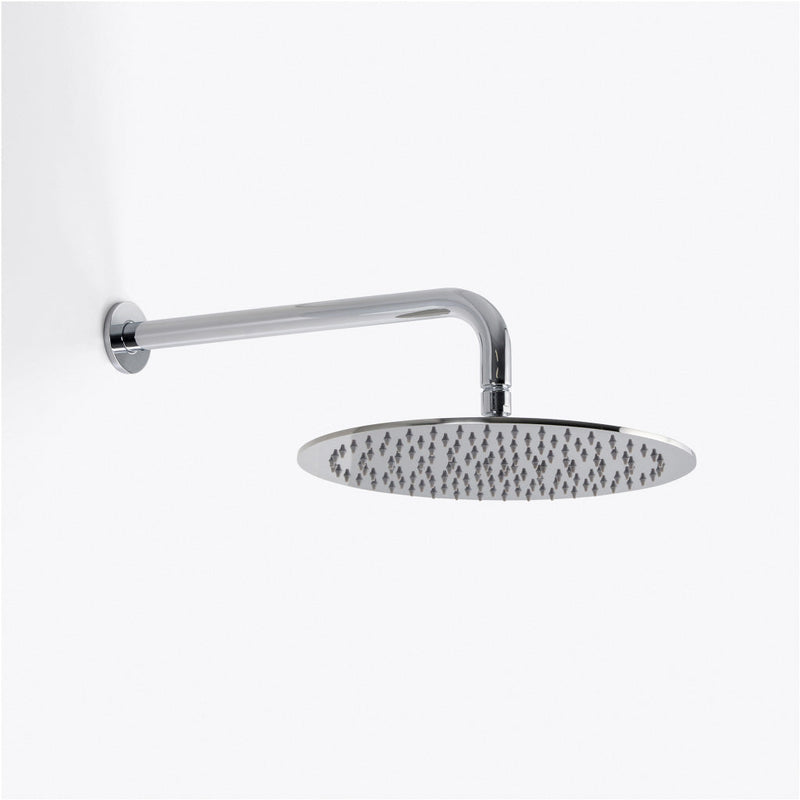

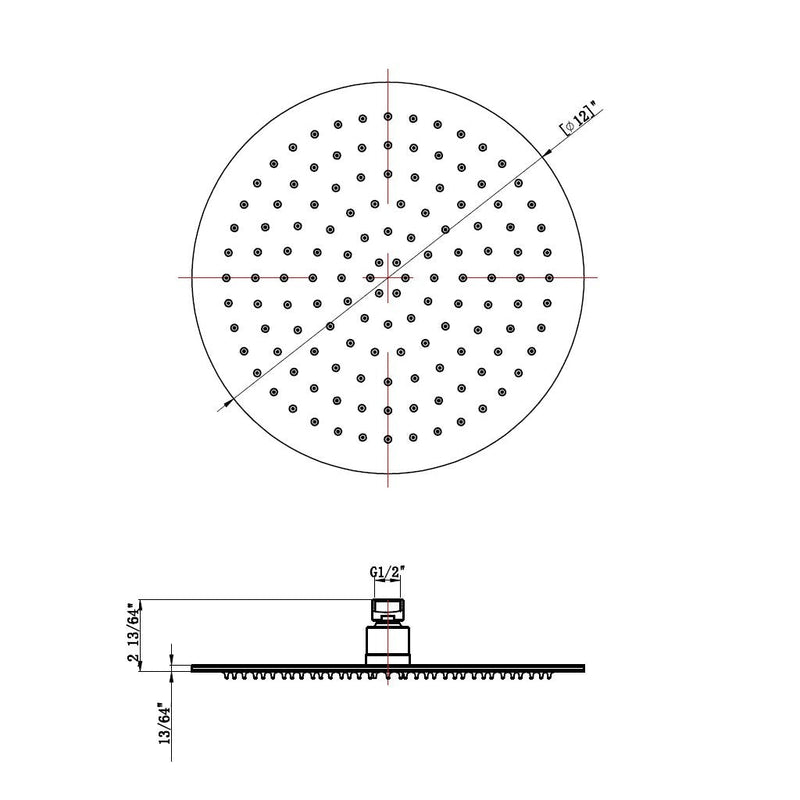

- Shower head features:
- Thin design (0.2 in. / 5 mm)
- G 1/2 in. female inlet
- Full rain spray single function
- 1.8 Gpm @ 80 PSI
- Silicone sharp nozzles easy to clean
- Made in stainless steel.

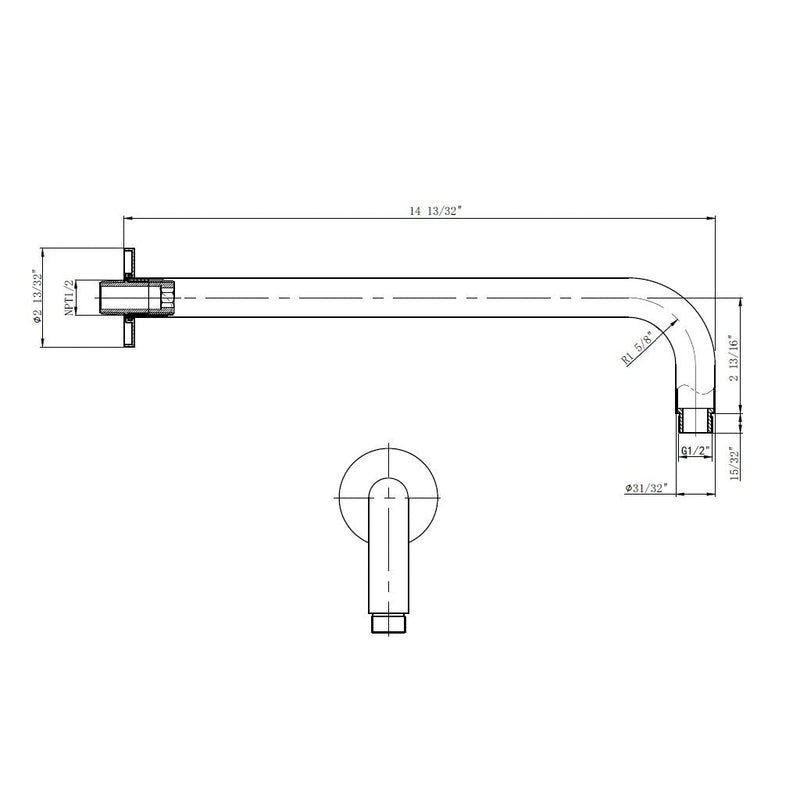

- Shower arm features:
- Wall mount.
- NPT 1/2 in. inlet . G 1/2 in. outlet
- 14" length
- Mobil scutcheon
- Full brass construction.
- Material: Brass
- Finish/Color: Polished Chrome
- Dimensions:
- Weight: 220.5 lb.
- Rustproof: Yes
- Warranty (Years): 1
- Material Warranty: Yes
- Finish Warranty: Yes
- UPC Certified: Yes
- Easy Installation: Yes
Documents:
- Spec Sheet (.PDF)
