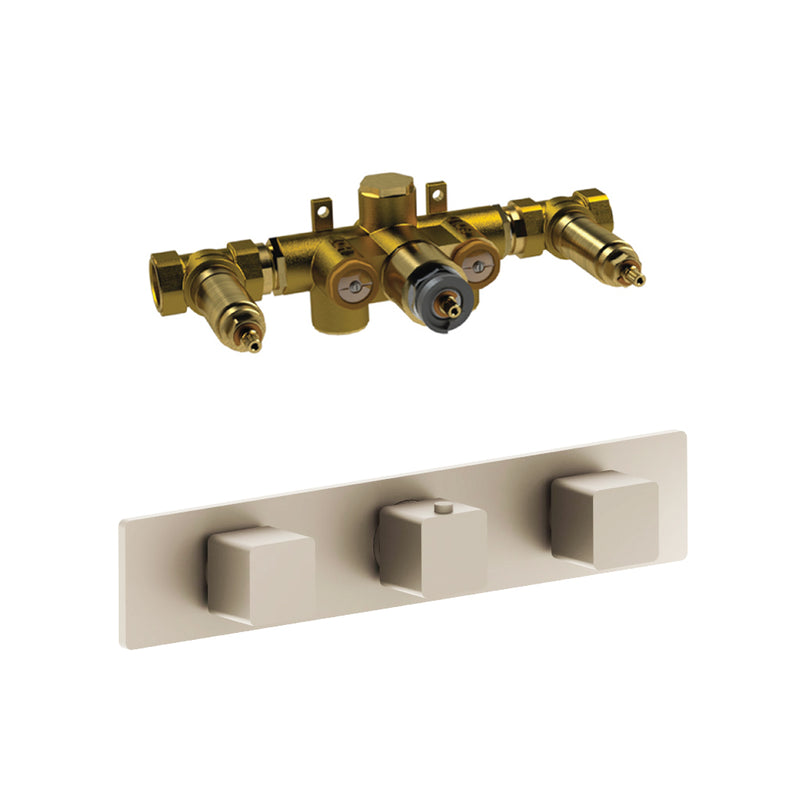

Name: Serie 196 2 Way Horizontal Thermostatic Shower Mixer with 2 Volume Controls - Wall Mount - 14" Brass/Polished Nickel
Brand: Flusso
SKU: 196.2715PN
Price: 1105.0 USD
Availability: InStock

Serie 196 2 Way Horizontal Thermostatic Shower Mixer with 2 Volume Controls - Wall Mount - 14" Brass/Polished Nickel

SKU 196.2715PN

by Flusso

$1,473.00

$1,473.00 - $1,473.00

$1,473.00

$1,105.00

$1,105.00 - $1,105.00

$1,105.00

Delivery time

This product will ship from the manufacturer within 10 business days

Included:

196.2715TPN Trim plate.
TVH.2715 Integrated Volume Control
Thermostatic
Valve
Extensions Available
Anti-Scald Ring
Supply Stops
Qty: 1

Documents:

Spec Sheet (.PDF)
Installation Instruction (.PDF)
Parts Diagram (.PDF)

The TVH.2715 Thermostatic valve features 3/4” NPT connections and has 2 water outputs [ports] which are operable simultaneously, i.e both at the same time, or one at a time. The middle handle sets the temperature. The left handle controls output port 1 and the right handle controls output port 2. Each port has full volume control capability.

Features

Two output
Center knob controls temperature
Left and right knob controls volume
Use in tub filler or shower applications
Thermostatic Valve Flow Rate
8.0 GPM @ 60 PSI
Shared 2 Port Water Flow
Use in Tub & Shower Applications
Material: Brass
Finish/Color: Polished Nickel

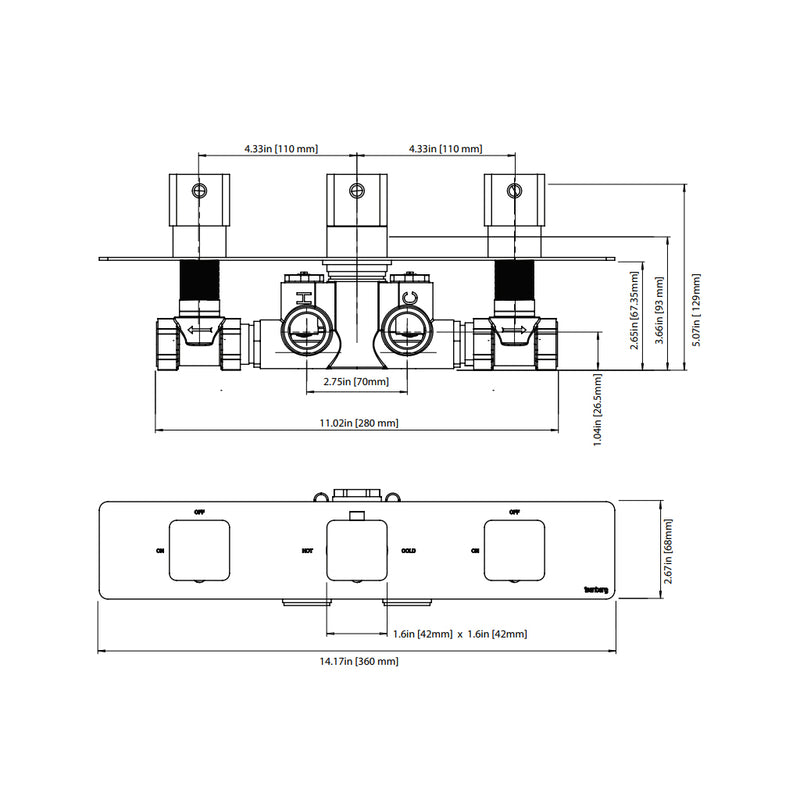

Dimensions: W: 14,17" * H: 2,67" * D: 5,07"
Weight: 110 lb.
Rustproof: Yes
Warranty (Years): 1
Material Warranty: Yes
Finish Warranty: Yes
UPC Certified: Yes
Easy Installation: Yes
