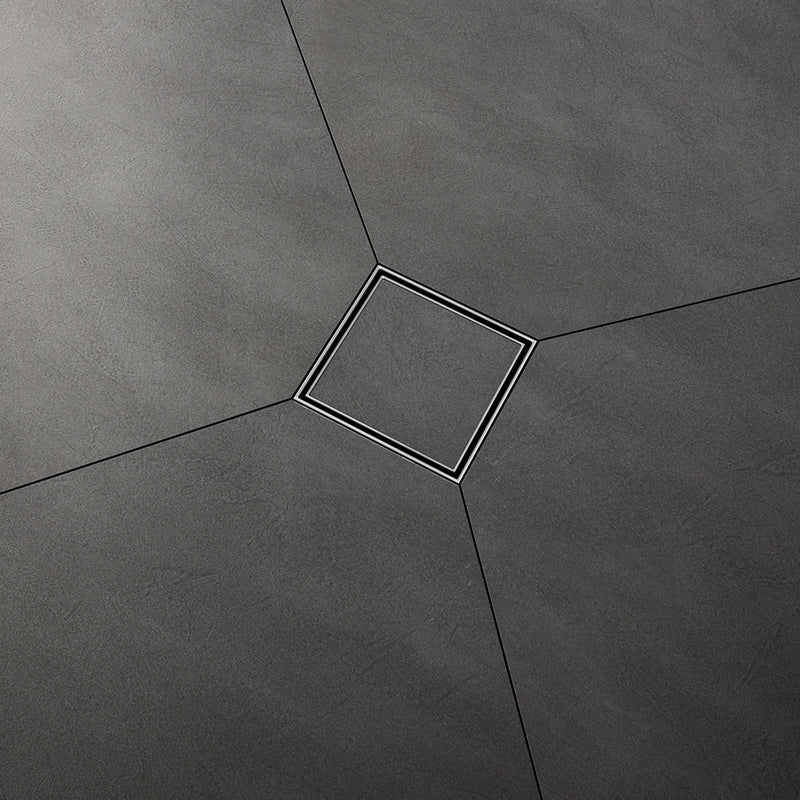

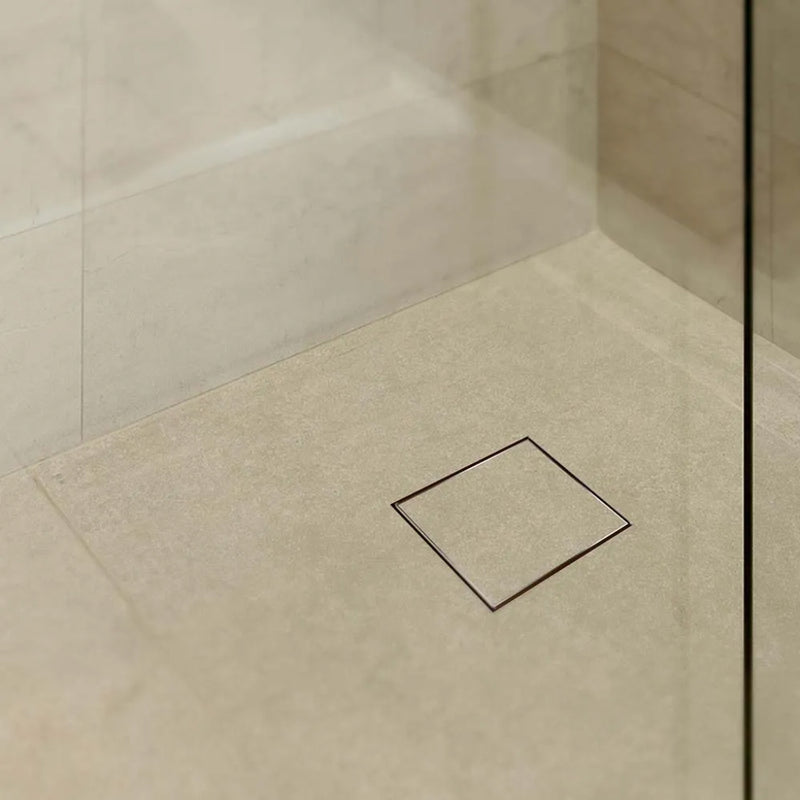

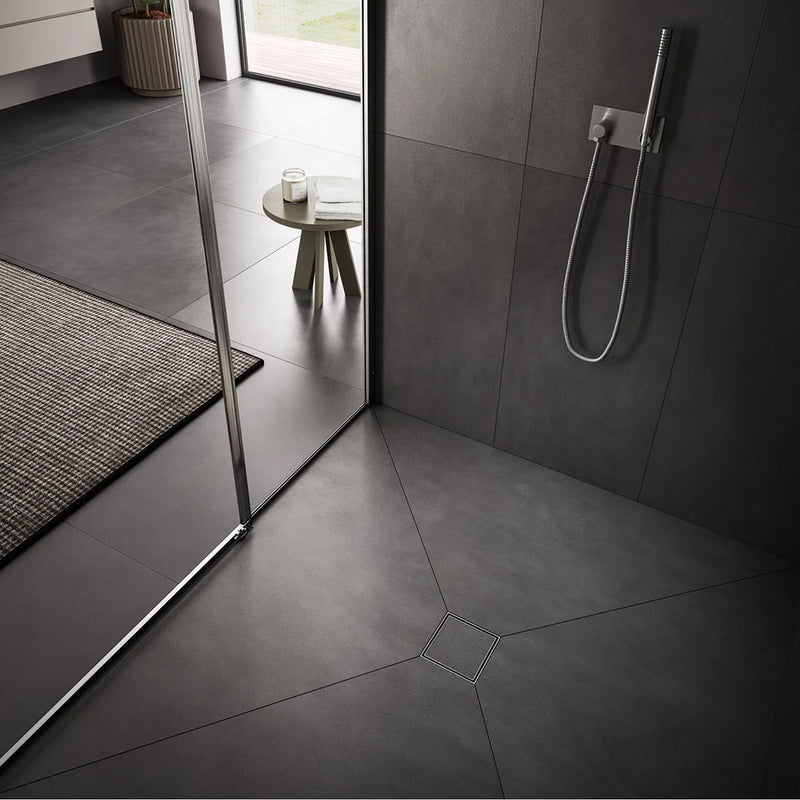

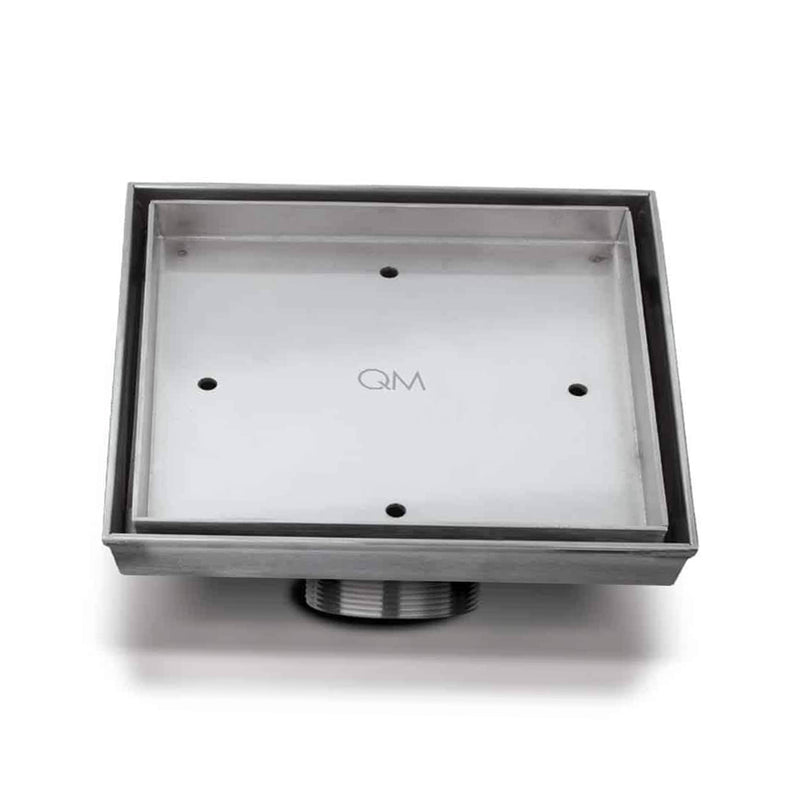

Delmar Mist (Tile-In) Center Square Shower Drain - Floor Mount - 6" Stainless Steel/Satin

Mist (Tile-In or Tile-Insert), a tribute to the way water gisguises everything around us in nature. The modern classic among center shower drains. Delmar center drains come in two size to complement any bathroom to perfection. Center shower drains are ideal for remodeling as well as new construction due to the low installation depth.

Features:

• Placement: Centrally located, four-way pitched drain and can be combined with all standard tile formats.
• Grate: Tile insert tray. It can accommodate any tile, stone or other flooring material up to 1/2” thick. Made with stainless steel marine grade 316 from top to bottom.
• Outlet: 2″ Center location.
• Application: Indoor and outdoor showers.
• Material: Stainless Steel
• Finish/Color: Satin

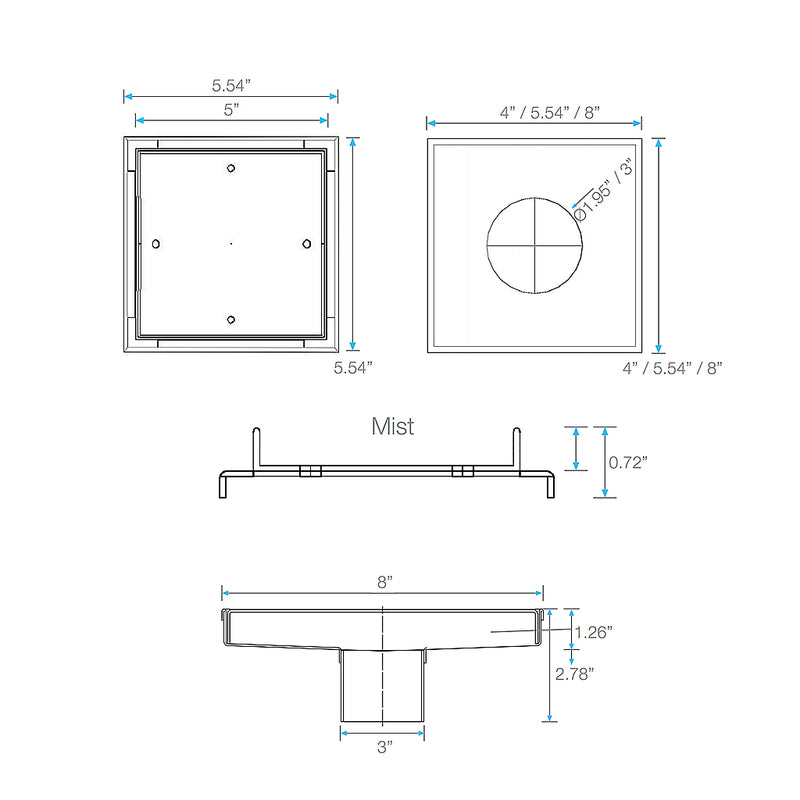

• Dimensions: W: 5.54" * H: 2.78" * D: 5.54"
• Weight: 1.6 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• ADA Certified: Yes
• Easy Installation: Yes

Included:

• Flange not included
• Lifting Key
• Grate
• Hair Strainer
• Base
• Threaded Nipple
• Qty: 1

Documents:

• Spec Sheet (.PDF)
• Installation Instruction (.PDF)
