Name: Rite-Temp Pressure-Balancing Shower Rough - Built-In - 6" Brass/Matt Black
Brand: Kohler
SKU: K-8304-KS-NA
Price: 141.0 USD
Availability: InStock

Rite-Temp Pressure-Balancing Shower Rough - Built-In - 6" Brass/Matt Black

Rite-Temp Pressure-Balancing Shower Rough - Built-In - 6" Brass/Matt Black

SKU K-8304-KS-NA

by Kohler

$188.55

$188.55 - $188.55

$188.55

$141.00

$141.00 - $141.00

$141.00

Delivery time

This product will ship from the manufacturer within 10 business days

[additional]

Included:

Pressure-balancing valve body and cartridge kit with service stops
Qty: 1

Documents:

Spec Sheet (.PDF)

Installation Instruction (.PDF)

[/additional]

The new Rite-Temp valve system sets new standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The Rite-Temp valve platform uses the latest pressure-balancing technology to provide anti-scald protection and temperature control for enhanced showering comfort. Once the valve is installed, select your finished trim and finish comprehensive design portfolio. Should you decide to remodel in the future, simply change out your trim for the latest design without the need to change the valve installation.

Features

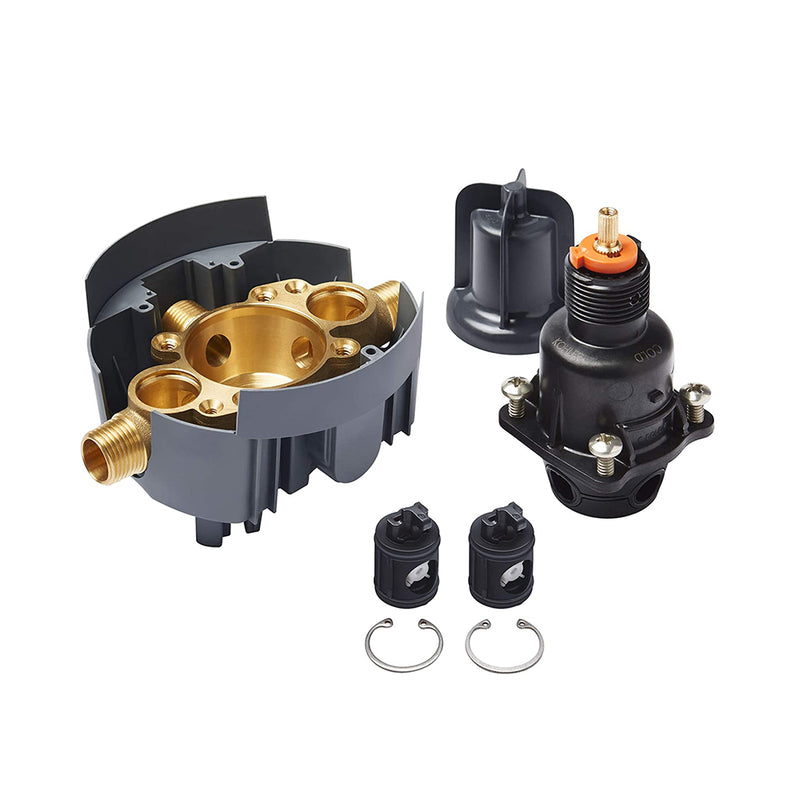

Includes valve body, pressure balance cartridge, rough-in guide, and mudguard.
1/2" Universal NPT & direct sweat inlets & outlets, with stops.
Service stops include integral check valves.
5.0 gpm (18.9 l/min) maximum flow rate at 45 psi.
Single lever design cycles from off through cold to hot.
Provides temperature regulation and automatic anti-scald protection.
One piece cartridge design simplifies installation and maintenance.
Adjustable high temperature limit stop to control maximum water temperature.
Requires valve trim to complete installation (sold separately).
Dimensions: H: 6" * / Ø: 5.875"
Weight: 6.6 lb.
Rustproof: Yes
Warranty (Years): 1
Material Warranty: Yes
Finish Warranty: Yes
UPC Certified: Yes
ADA Certified: Yes
Easy Installation: Yes

Shower Valve:

Pressure: 45 psi (3.1 bar)
Maximum (Static) Pressure: 125 psi (8.6 bar)
Minimum (Operating) Pressure: 20 psi (1.4 bar)
Valve body: Machined-brass

Material:

Forged de-zincification-resistant brass body provides long term reliability and resistance to aggressive water conditions.
Technology
Pressure-balancing diaphragm technology maintains outlet temperature within +/
3 degrees Fahrenheit during water pressure fluctuations.

Installation:

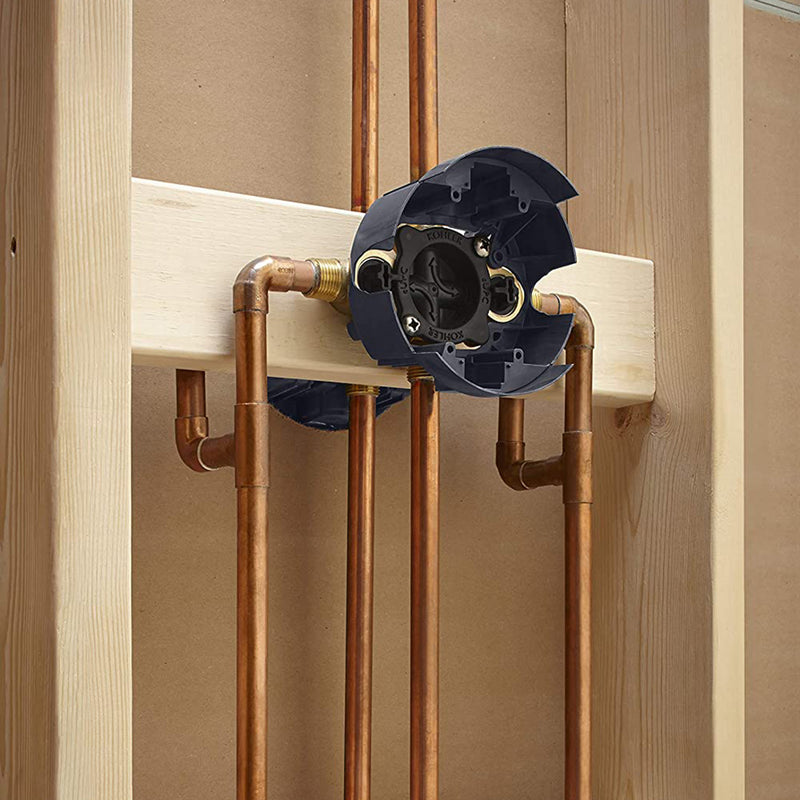

Designed for use in standard, back-to-back and thin wall installations.
Valve body features integral mounting locations and symmetrical valve inlets to simplify installation.
Cartridge is reversible for installations where hot and cold supplies are reversed.

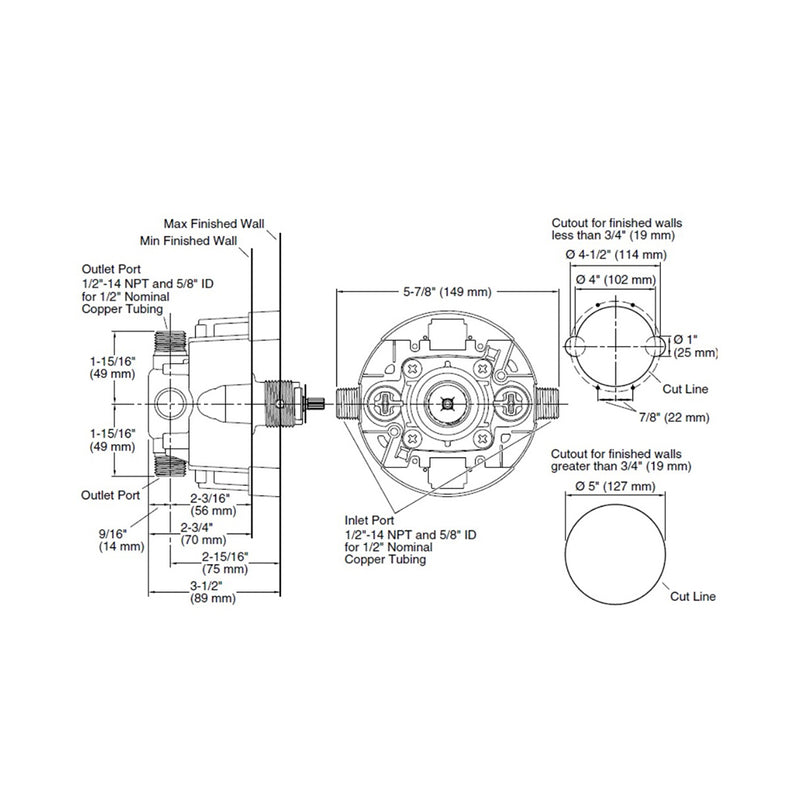

Rough-in guide designed for both standard and thin wall installations.
Installed valve rough-in can be flushed and pressure tested to 150 psi max (air or water) without cartridge using included K-10351 test cap.
