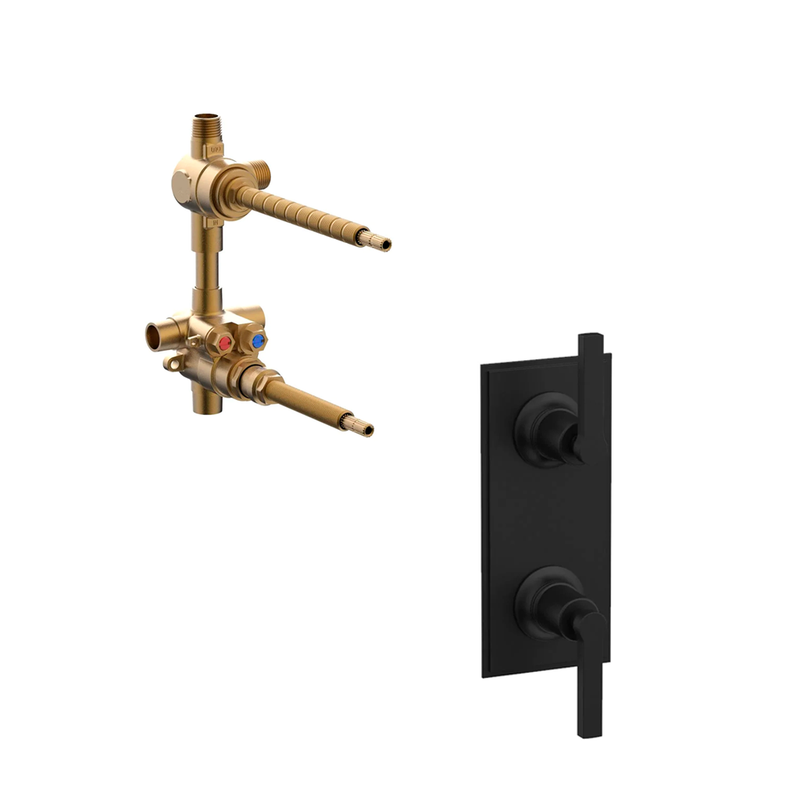

Name: Hex Modern 2 Way Thermostatic Lever Handle Shower Mixer - Wall Mount - 9" Brass/Matt Black
Brand: Phylrich
SKU: 4-106-040+1-132
Price: 1057.0 USD
Availability: InStock

Hex Modern 2 Way Thermostatic Lever Handle Shower Mixer - Wall Mount - 9" Brass/Matt Black

Hex Modern 2 Way Thermostatic Lever Handle Shower Mixer - Wall Mount - 9" Brass/Matt Black

by Phylrich

$0.00 - $0.00

$0.00

$1,057.00

$1,057.00 - $1,057.00

$1,057.00

Delivery time

Use this text to share information about your product and policies with your customers.

[additional]

Included:

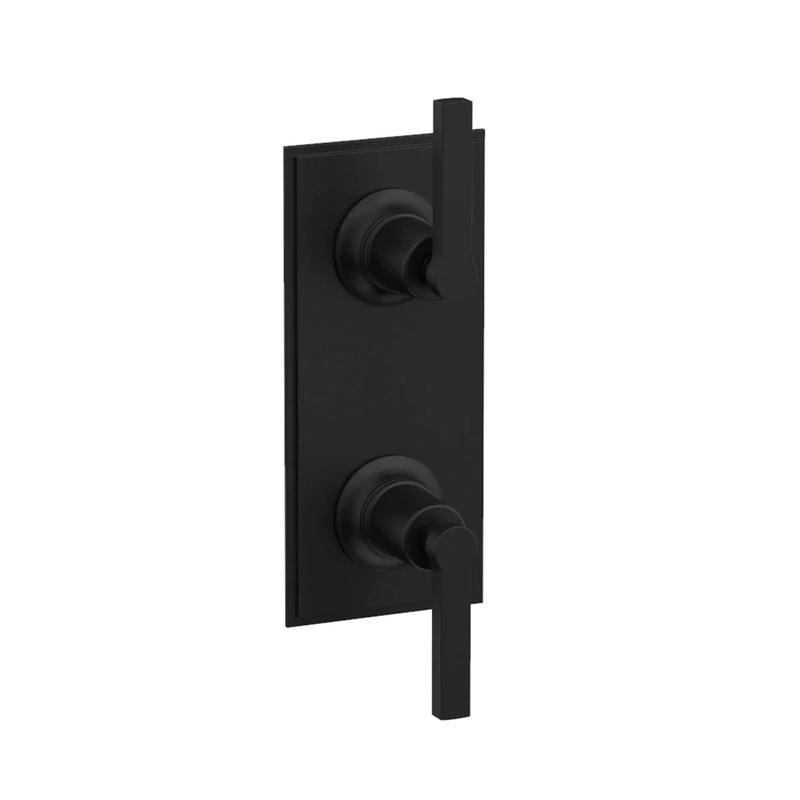

PHY.TRP.HXM.09.00.BR.MBL Trim Plate

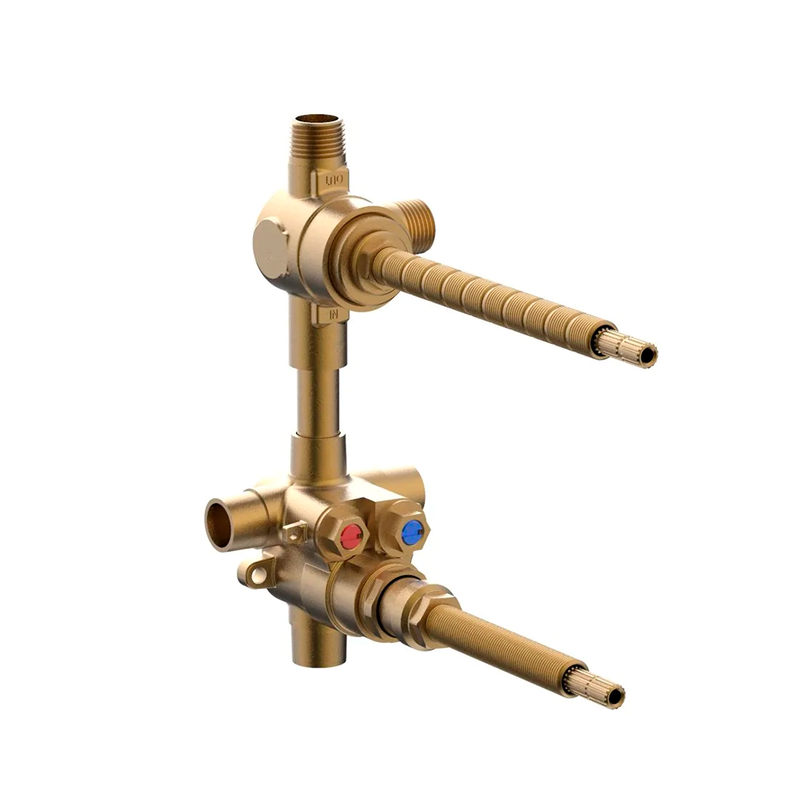

PHY.SHR.NEC.09.00.BR.BZE Rough
Installation Accessories
Qty: 1

Documents:

Spec Sheet (.PDF)
Installation Instruction (.PDF)
Part Diagrams (.PDF)

[/additional]

Temperature Controlled By ThermostaticLever Handles

Features

Access Hole: 3 x 8"
Number of Handles: Two
Handle Spread: 5”
Top Handle Turn Angle: Quarter Turn
Bottom Handle Turn Angle: 115-118˚
Installation Type: Wall Mounted
Primary Material: Brass
Valve Material: Ceramic
Flow Rate: 6.5 GPM
Flow Restriction: 1.8 GPM per function
Water Pressure Maximum: 85 PSI
Water Pressure Minimum: 20 PSI
Water Pressure Recommended: 60 PSI
Male 1/2” NPT inlets and outlets
Factory temperature setting = 100°F (38°C)
Temperature range = 52° to 118°F (11°-48°C)
Temperature hot supply = 149° to 180°F (65°-82°C)
Temperature cold supply = 50° to 72°F (10°-22°C)
Temperature stability = ±32°F (0°C)
Material: Brass
Finish/Color: Matt Black

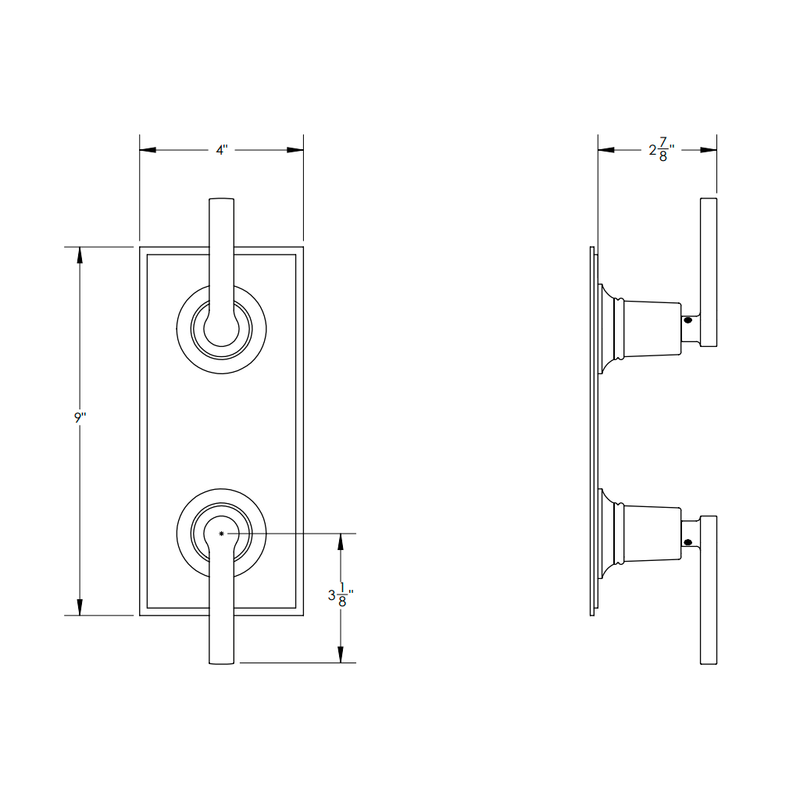

Dimensions: W: 4" * H: 9" * D: 2,87"
Weight: 44 lb.
Rustproof: Yes
Warranty (Years): 1
Material Warranty: Yes
Finish Warranty: Yes
Easy Installation: Yes
