East Linear 1 Way Pressure Balance Shower Mixer - Wall Mount - 7" Brass/Polished Gold

East Linear 1 Way Pressure Balance Shower Mixer - Wall Mount - 7" Brass/Polished Gold

Name: East Linear 1 Way Pressure Balance Shower Mixer - Wall Mount - 7" Brass/Polished Gold
Brand: Newport Brass
SKU: 4-994LBP/24+1-684
Price: 934.0 USD
Availability: InStock

SKU 4-994LBP/24+1-684

by Newport Brass

$934.00 - $934.00

$934.00

$934.00 - $934.00

$934.00

Quantity

[additional]

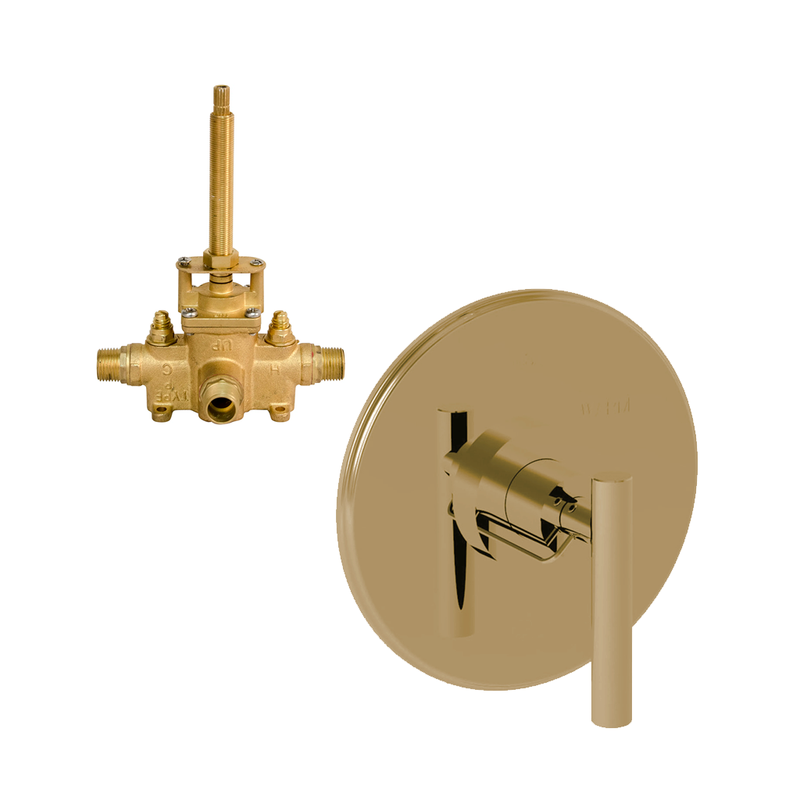

Included:

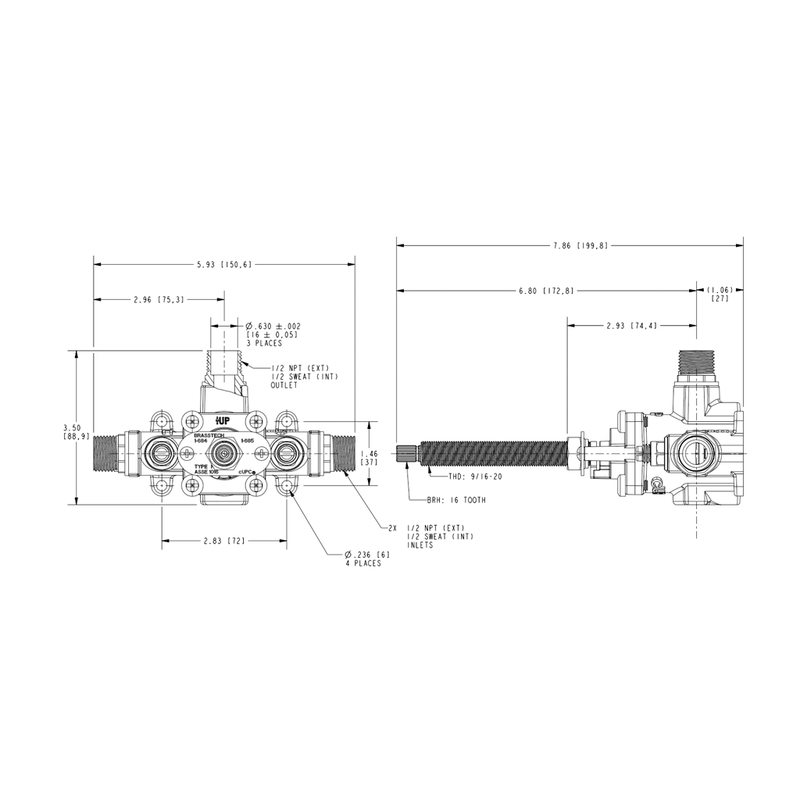

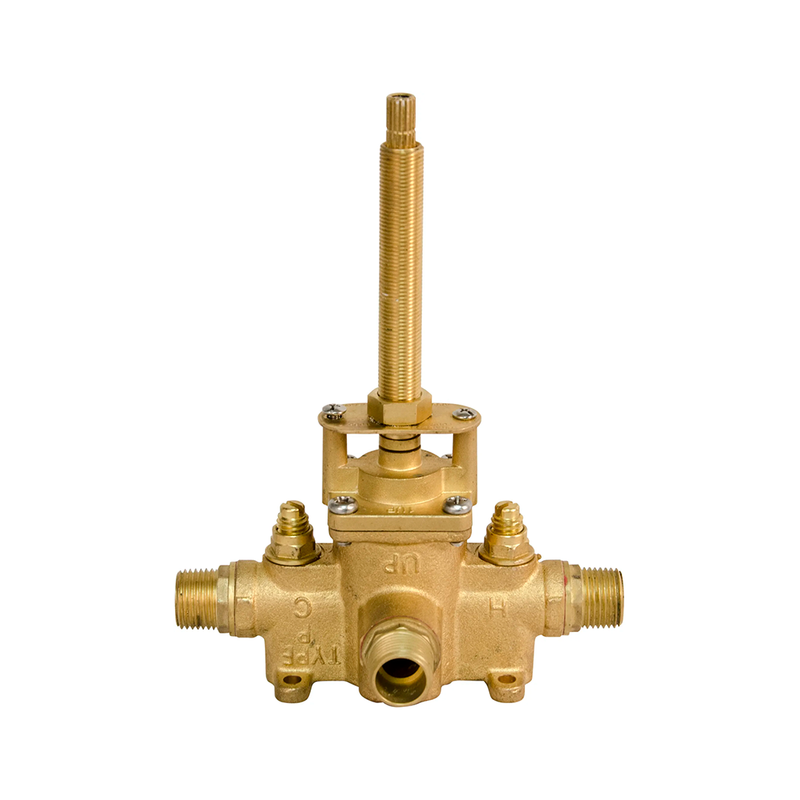

NEB.SHR.UNI.06.00.BR.BRG Rough-in valve

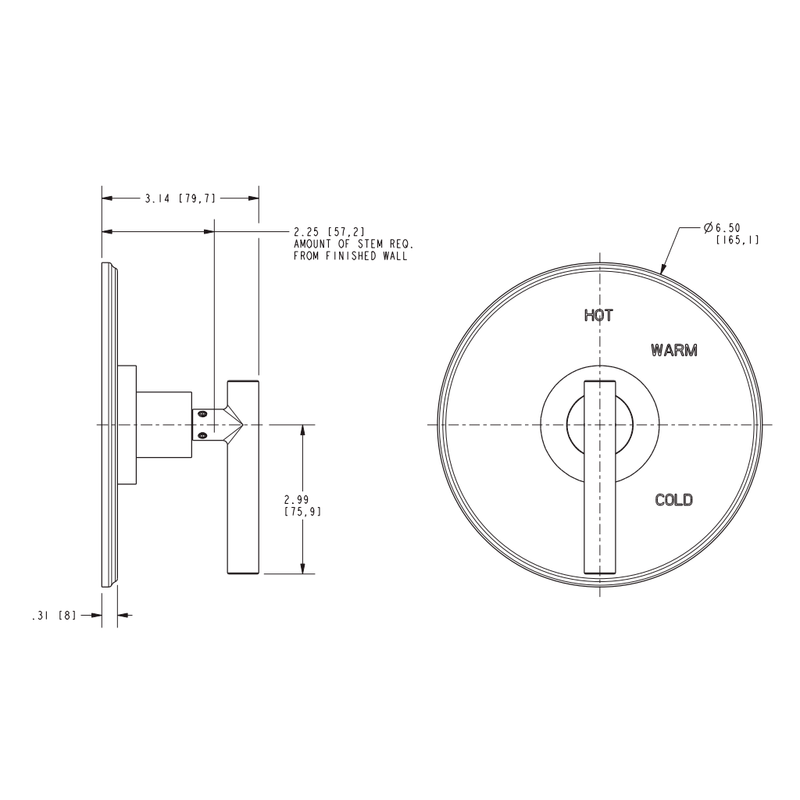

NEB.TRP.EAT.07.01.BR.POG Trim plate
Handle
Allen key
Qty: 1

Documents:

Spec Sheet (.PDF)
Installation Instruction (.PDF)

[/additional]

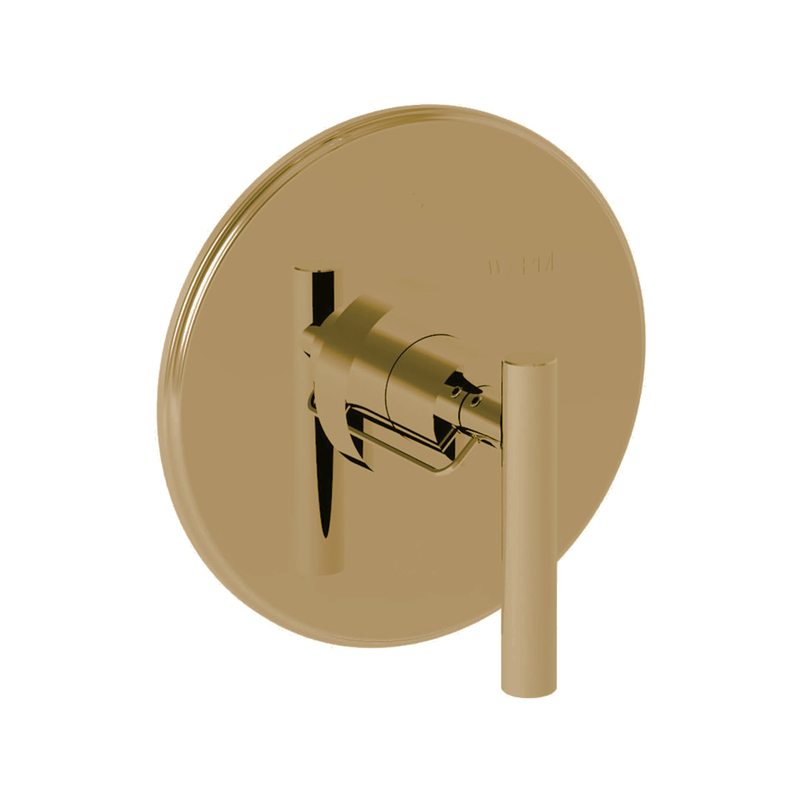

Balanced Pressure Shower Trim Plate with Handle. Less showerhead, arm and flange.

Features

Face plate with ADA Compliant Cross Handle.
Provides anti-scald protection and temperature regulation
Pressure-balancing technology maintains water temperature within +/
2 degrees Fahrenheit
High-temperature safety stop ensures water temperature stays below maximum setting
Integral hot and cold inlet stops ensure easy cartridge access
Universal NPT and direct sweat connections for installation flexibility
Mounting tabs located on rough-in for secure installation option
1-1/16â€ functional depth (center-back) enables back-to-back installation
Maximum handle rotational requirement of 150 degrees to achieve maximum temperature setting
5.8 gpm (gallons per minute) flow rate (@ 50 psi)
Requires Newport Brass BP Valve Trim (many options available, sold-separately)
Material: Brass
Finish/Color: See Color Options
Dimensions: W: 6.5" * H: 6.5" * D: 3.42" / Ø: 6.5"
Weight: 44.1 lb.
Rustproof: Yes
Warranty (Years): 1
Material Warranty: Yes
Finish Warranty: Yes
UPC Certified: Yes
Easy Installation: Yes
