Serie 250 2 Way Thermostatic Shower Mixer - Wall Mount - 7" Brass/Matt Black

[additional]

Included:

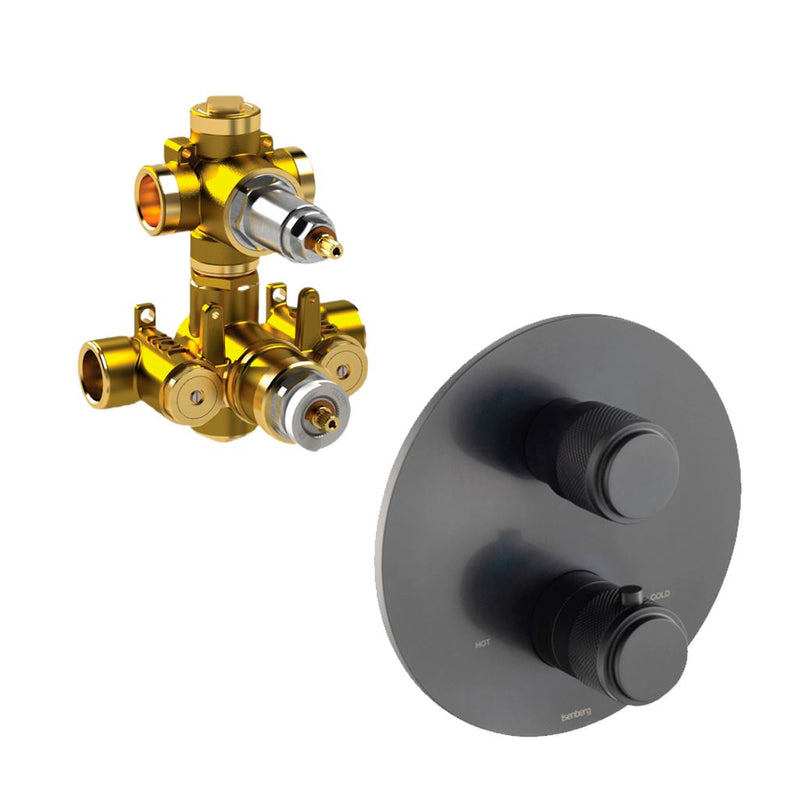

• TVH.4420F Shower mixer I-Box concealed
• 250.4000TMB Trim plate.
• Temporary protective caps.
• Handles (2 units).
• Installation screws.
• Installation diagram.
• Qty: 1

Documents:

• Spec Sheet (.PDF)
• Installation Instruction (.PDF)
• Parts Diagram (.PDF)

[/additional]

The TVH.4420F Thermostatic valve features 3/4″ NPT connections and has 2 water outputs [ports] which are operable one at a time without shared port operation. This product meets CAL-Green compliance criteria. The bottom handle sets the temperature. The top handle controls water diversion between the 2 water output ports. Each port has full volume control capability.

Features:

• 3/4″ NPT Female Connections
• 2-Way Diverter With Integrated Volume Control / Shut-off Feature
• Sets water temperature within 2° Celsius
• Use with shared port or non-shared port cartridges
• Turn bottom knob to control temperature.
• Turn top knob to control water flow.
• Thermostatic Valve Flow Rate
• 8.0 GPM @ 60 PSI
• Material: Brass
• Finish/Color: Matt Black

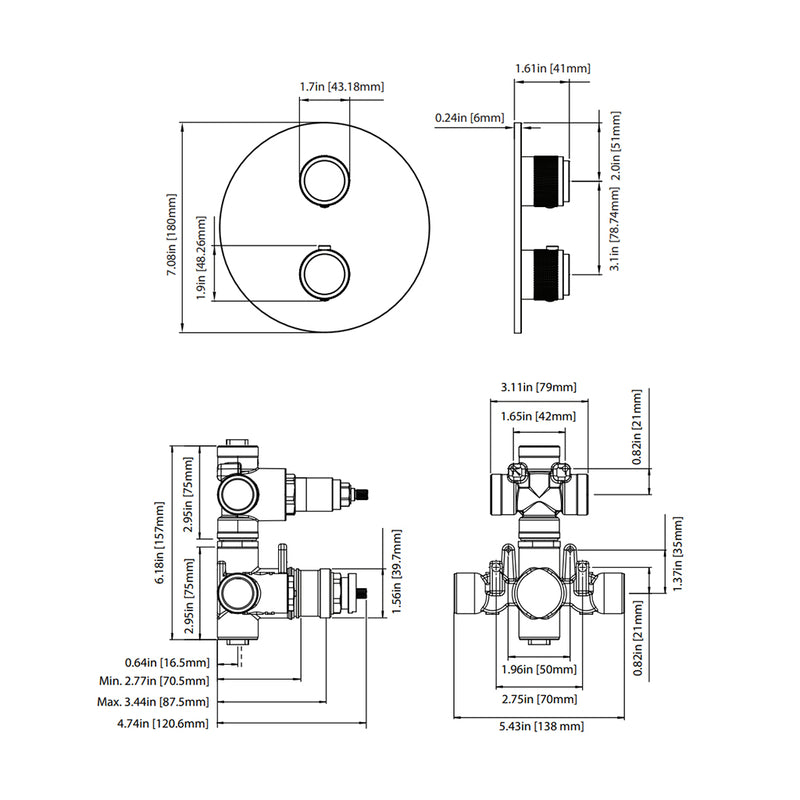

• Dimensions: H: 7.08" * D: 1.61" / Ø: 7.08"
• Weight: 12.3 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• Easy Installation: Yes
