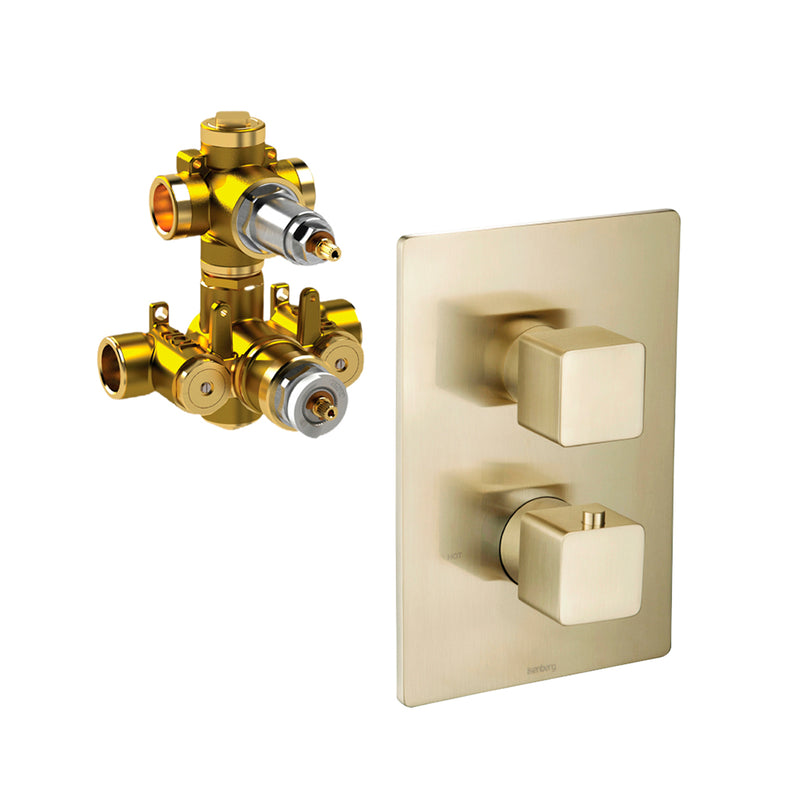

Serie 196 Thermostatic Trim Shower Mixer - Wall Mount - 6" Brass/Satin Brass

Included:

• Shower mixer I-Box concealed
• Trim plate.
• Temporary protective caps.
• Handles (2 units).
• Installation screws.
• Installation diagram.
• Qty: 1

Documents:

Spec Sheet (.PDF)

Installation Guide (.PDF)

[/additional]

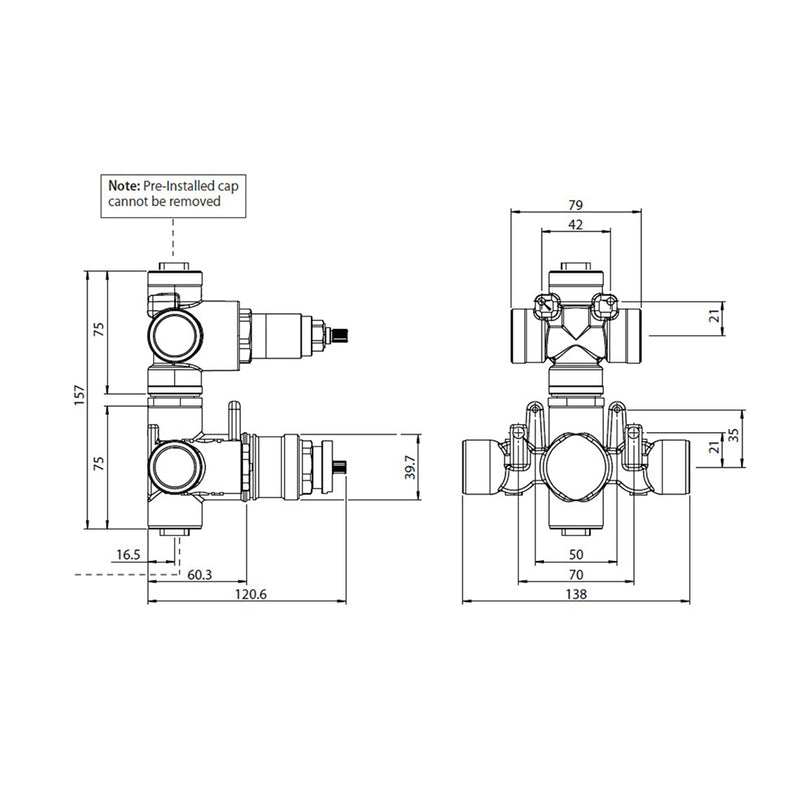

The TVH.4420F Thermostatic valve features 3/4″ NPT connections and has 2 water outputs [ports] which are operable one at a time without shared port operation. This product meets CAL-Green compliance criteria. The bottom handle sets the temperature. The top handle controls water diversion between the 2 water output ports. Each port has full volume control capability.

Features:

• Turn bottom handle to control temperature.
• Trim Only – Valve Not Included
• Turn top handle to divert water & control volume.
• Includes Thermostatic valve (TVH.4420F) w/ service stops
• Thermostatic Valve Flow Rate
• 8.0 GPM @ 60 PSI
• Extension Available
• TVH.4101E**
• Material: Brass
• Finish/Color: Satin Brass

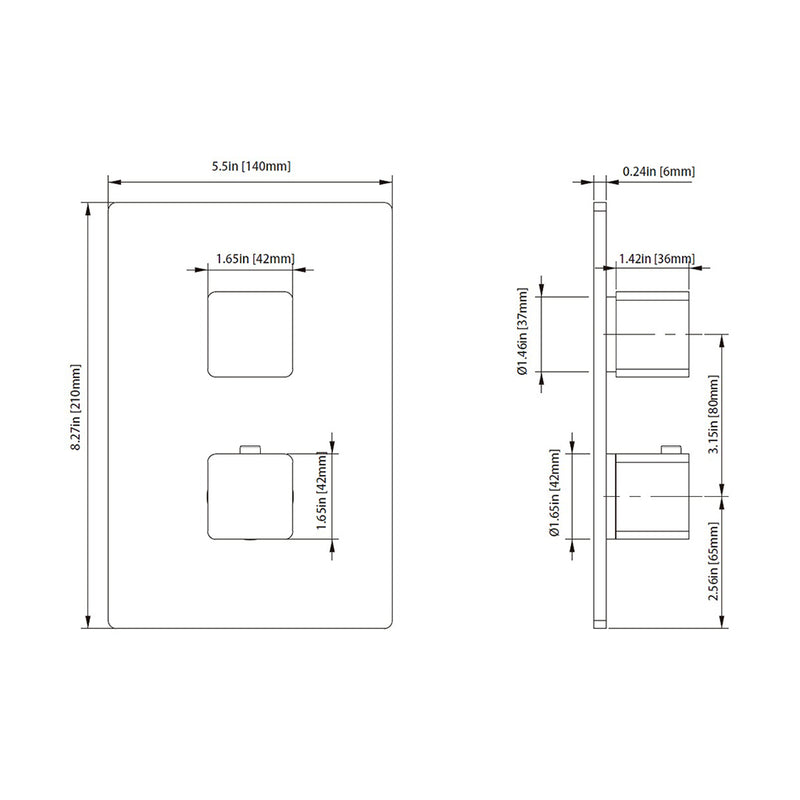

• Dimensions: W: 5.51" * H: 8.27" * D: 0.24"
• Weight: 8.2 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• Easy Installation: Yes
