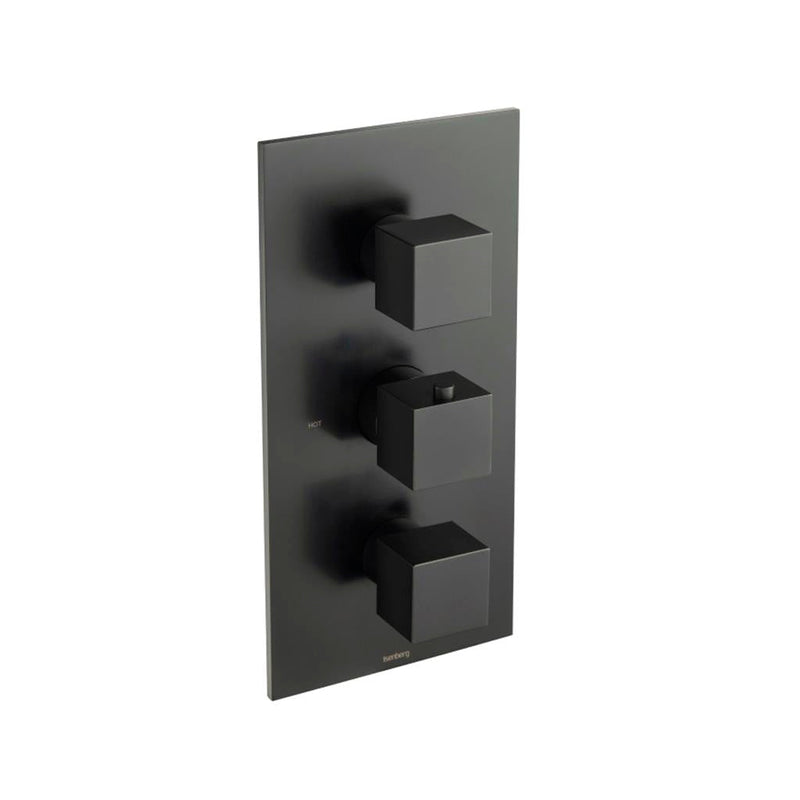

Serie 160 3 Way Thermostatic Shower Mixer - Built-In - 12" Brass/Matt Black

Included:

• Rough-in valve
• Trim plate
• Diverter handle
• Mixer handle
• Volume control handle
• Qty: 1

Documents:

Spec Sheet (.PDF)

Installation Instruction (.PDF)

Parts Diagram (.PDF)

[/additional]

The TVH.4501 Thermostatic valve features 3/4″ NPT connections and has 3 water outputs [ports]. Two of the ports are operable simultaneously, i.e both at the same time, or one at a time. The middle handle sets the temperature. The top handle controls output port 1 and 2 and the bottom handle controls output port 3. Each port has full volume control capability.

Features:

• Turn middle knob to control temperature.
• Turn top knob to divert water flow between outlets 1 & 2.
• Turn bottom to control water flow of outlet 3.
• Thermostatic Valve Flow Rate
• 13.0 GPM @ 60 PSI
• Extension Available
• TVH.4401E**
• Material: Brass
• Finish/Color: Matt Black

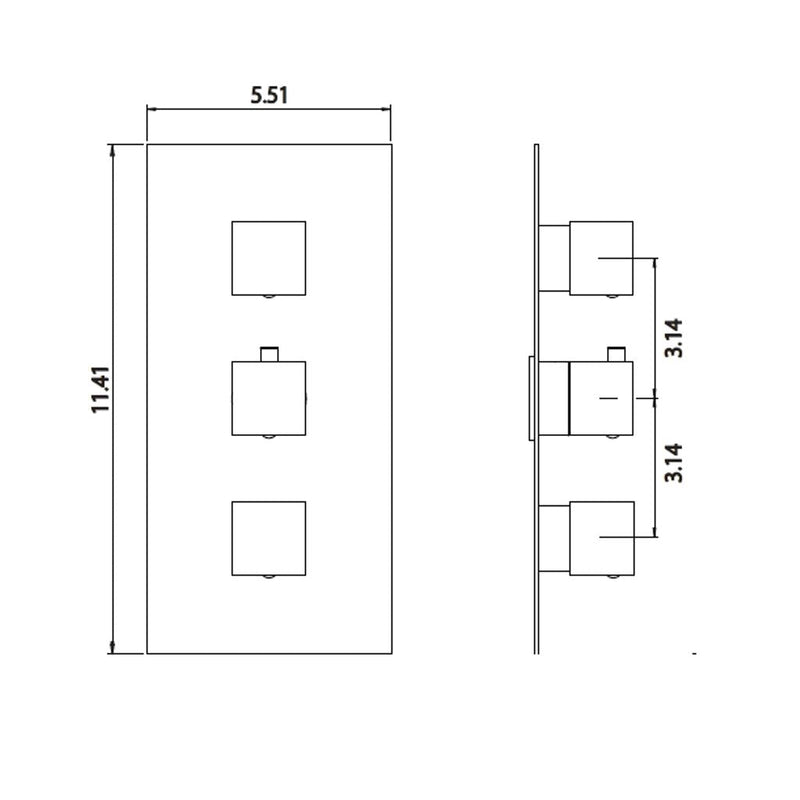

• Dimensions: W: 5,51" * H: 11,41" * D: 5"
• Weight: 11 lb.
• Rustproof: Yes
• Warranty (Years): 1
• Material Warranty: Yes
• Finish Warranty: Yes
• UPC Certified: Yes
• ADA Certified: Yes
• Easy Installation: Yes
