Name: Serie 196 2 Way Horizontal Thermostatic Shower Mixer - Wall Mount - 10" Brass/Polished Chrome
Brand: Flusso
SKU: 196.2717CP
Price: 920.0 USD
Availability: InStock

Serie 196 2 Way Horizontal Thermostatic Shower Mixer - Wall Mount - 10" Brass/Polished Chrome

SKU 196.2717CP

by Flusso

$1,226.00

$1,226.00 - $1,226.00

$1,226.00

$920.00

$920.00 - $920.00

$920.00

Delivery time

This product will ship from the manufacturer within 10 business days

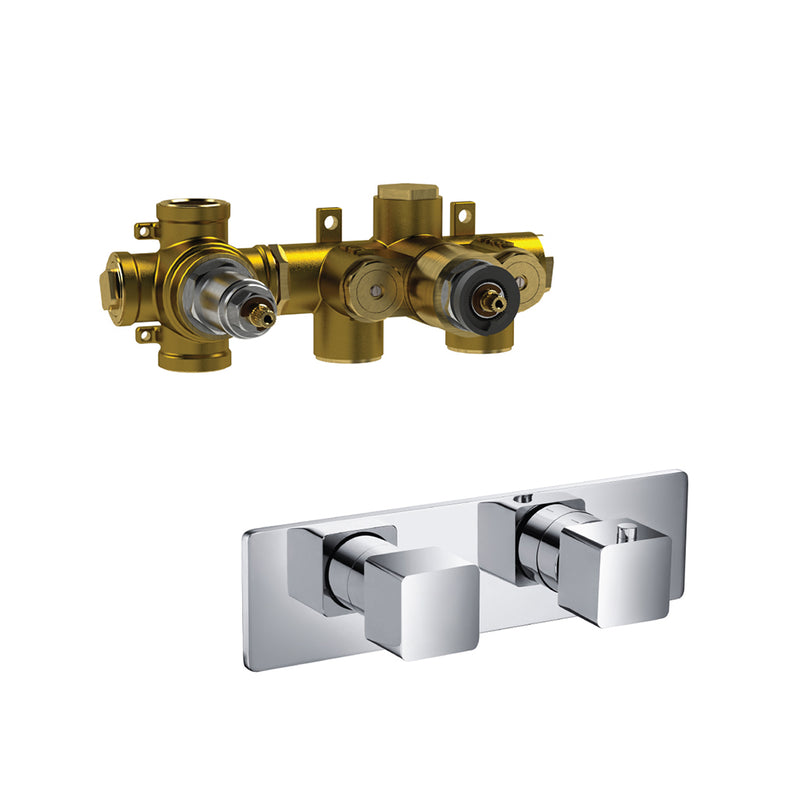

Included:

196.2693TCP Trim plate.
TVH.2717F Thermostatic
Valve
Extensions Available
Anti-Scald Ring
Supply Stops
Qty: 1

Documents:

Spec Sheet (.PDF)
Installation Instruction (.PDF)
Parts Diagram (.PDF)

The TVH.2717F Thermostatic valve features 3/4″ NPT connections and has 2 water outputs [ports] which are operable one at a time without shared port operation. This product meets CAL-Green compliance criteria. The right handle sets the temperature. The left handle controls water diversion between the 2 water output ports. Each port has full volume control capability.

Features

Turn right knob to control temperature.
Turn left knob to control water flow.
Thermostatic Valve Flow Rate
8.0 GPM @ 60 PSI
Material: Brass
Finish/Color: Polished Chrome

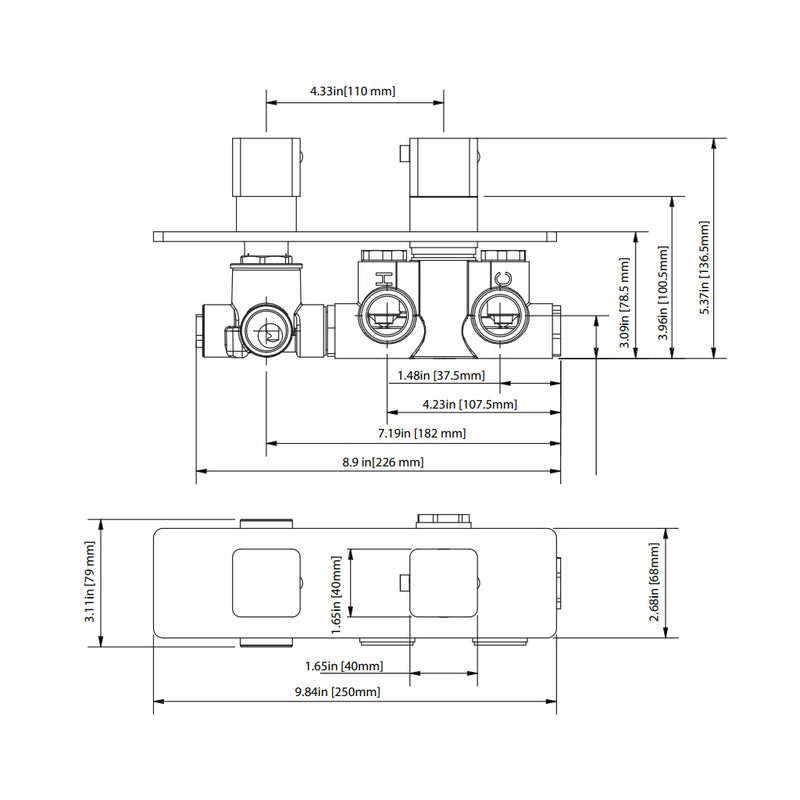

Dimensions: W: 9,84" * H: 2,67" * D: 3,66"
Weight: 110 lb.
Rustproof: Yes
Warranty (Years): 1
Material Warranty: Yes
Finish Warranty: Yes
UPC Certified: Yes
Easy Installation: Yes
