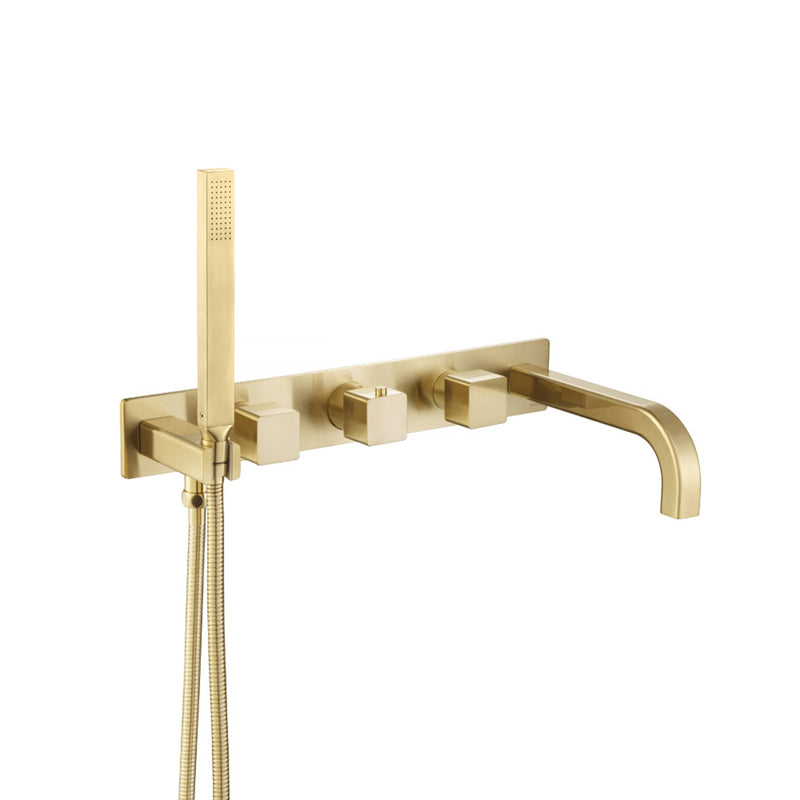

Serie 196 (2 Output Ports) Hand Shower Tub Faucet (Complete) - Wall Mount - 18" Brass/Satin Brass
SKU 196.2691SB
by Isenberg
Save 15%
Original price
$1,980.00
Original price
$1,980.00
-
Original price
$1,980.00
Original price
$1,980.00
Current price
$1,683.00
$1,683.00
-
$1,683.00
Current price
$1,683.00
Delivery time
This product will ship from the manufacturer within 10 business days
[additional]
Included:
- Tub Faucet
- Thermostatic Valve
- Installation accessories
- Qty: 1
Documents:
- Spec Sheet (.PDF)
- Installation Instruction (.PDF)
- Parts Diagram (.PDF)
[/additional]

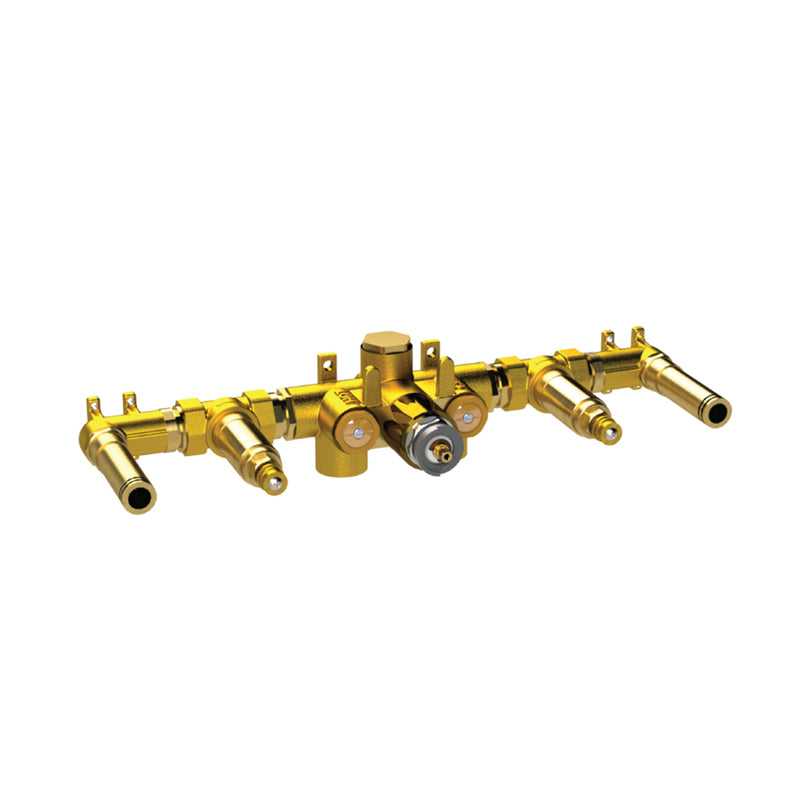

The TVH.2691 Thermostatic valve features 3/4″ NPT connections and has 2 water outputs [ports] (one for the tub spout and one for the handheld). Both water outputs are operable simultaneously, i.e both at the same time, or one at a time. The middle handle sets the temperature. The left handle controls output port 1 and the right handle controls output port 2. Each port has full volume control capability. The installation of the spout and handheld shower outlet are interchangeable.
Features:
- Spout Projection = 9”
- Turn center knob to set temperature
- Turn right knob to activate output 1
- Hand Shower
- Turn left knob to activate output 2
- Tub Spout
- Thermostatic Valve Flow Rate 8.0 GPM @ 60 PSI
- Hand Shower & Tub Spout positions can be swapped
- Material: Brass
- Finish/Color: Satin Brass

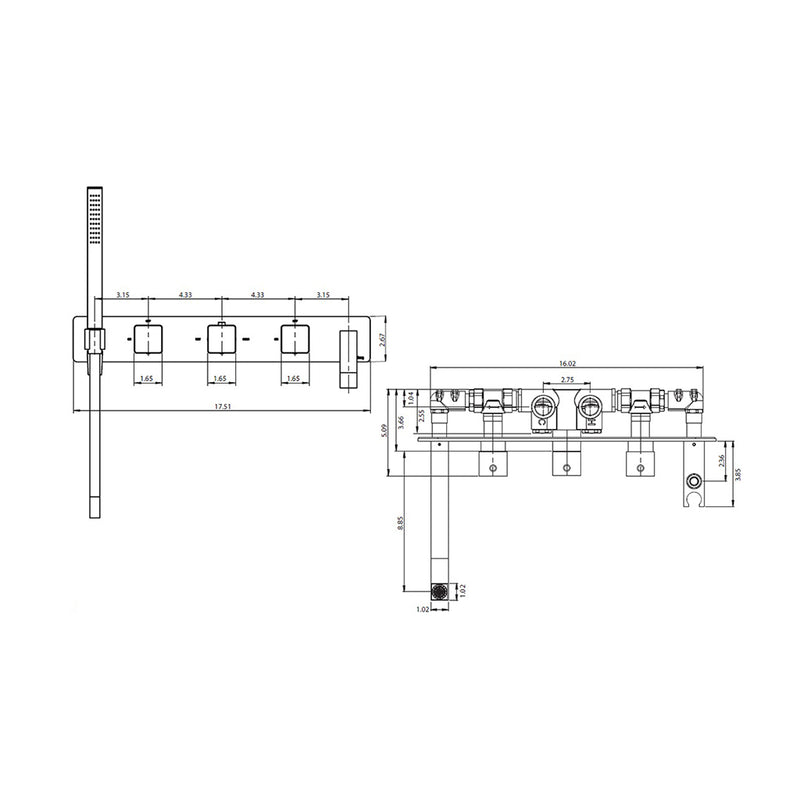

- Dimensions: W: 17,51" * H: 2,67" * D: 5,09"
- Weight: 16 lb.
- Rustproof: Yes
- Warranty (Years): 1
- Material Warranty: Yes
- Finish Warranty: Yes
- UPC Certified: Yes
- ADA Certified: Yes
- Easy Installation: Yes
